Trimble R7 User Manual

4 General Operation
38 Trimble R7/R8 GPS Receiver User Guide
Trimble R7 Operation
4.1 Introduction
All the controls that you need for general operation of the Trimble R7
receiver are located on the front panel, as shown in Figure 4.1.

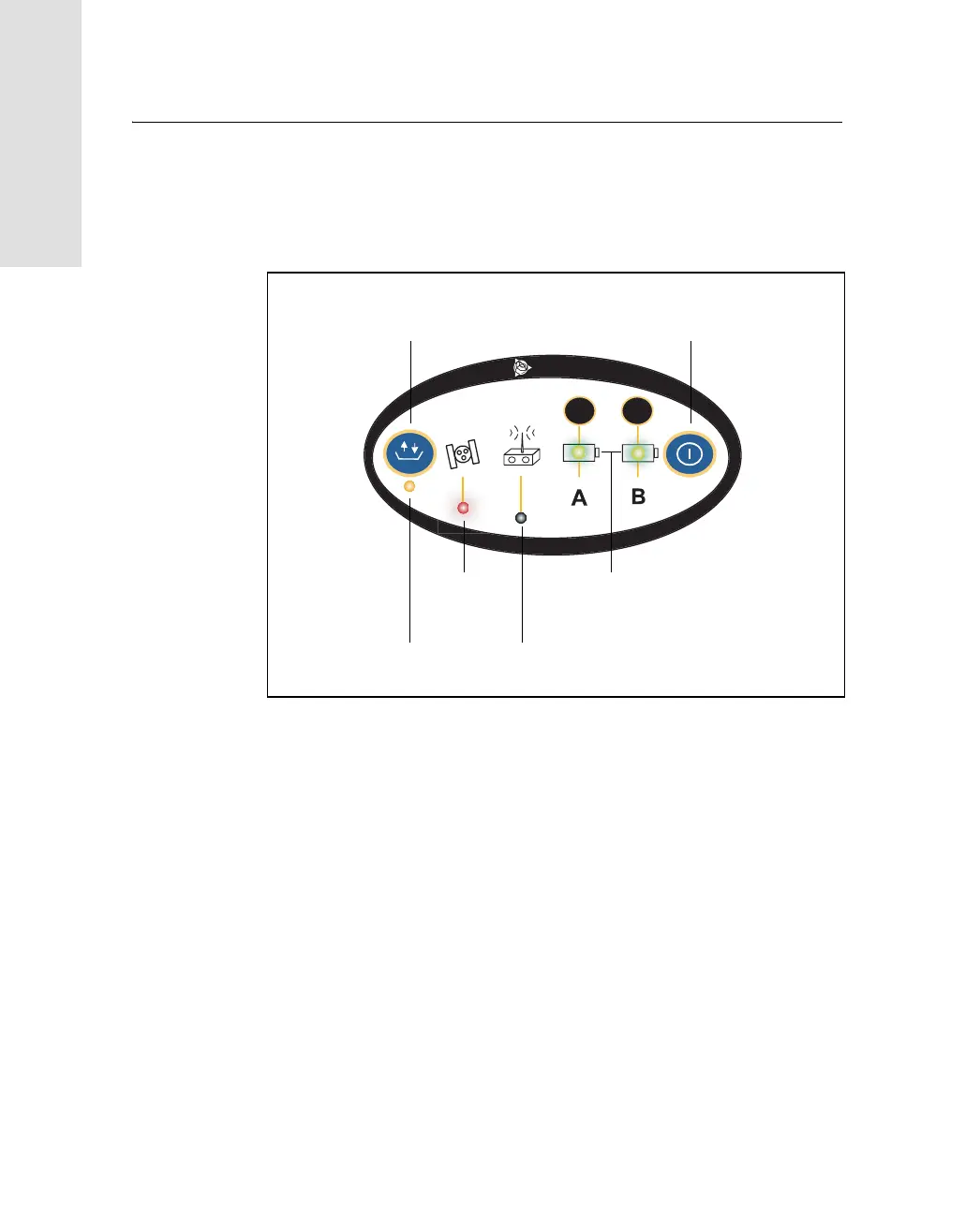

Figure 4.1 Controls on the front panel of the Trimble R7
For more information about other panels of the Trimble R7, see Parts
of the Receiver, page 12.
4.2 Button Functions
The Trimble R7 has only two buttons: a Power button, represented in
this manual by p, and a Data button, represented by d.
Use p to switch the receiver on or off, and to perform data
management functions such as deleting files or resetting the receiver.
2
3
t
Logging/
Memory LED
Data button
Power button
Battery LEDs
SV Tracking
Radio/Event
LED
Marker LED
