4.10 REFRIGERATOR
The refrigerator control panel is
located directly above the fridge and
includes switches and several indica-
tor lights.
1.
Master ON/OFF Switch:
This latching push button switch
controls the power to the refrig-
erator. Depress the switch and it
will latch in the depressed posi-
tion for the power to be on. De-
press the switch again to unlatch
it and turn the power off. The
switch will be in its up position.
Schematic
2.
Mode Selector Switch:
This push button switch selects
which power source will be used
to operate the refrigerator. De-
press the switch once to select
the AUTO mode and the AUTO
indicator light (D) will be lit.
COMMANDER / EMBASSY
IMPORTANT
The control panel operates
on 12 volt DC power. This
requires the coach batter-
ies to be at full charge for
proper control.

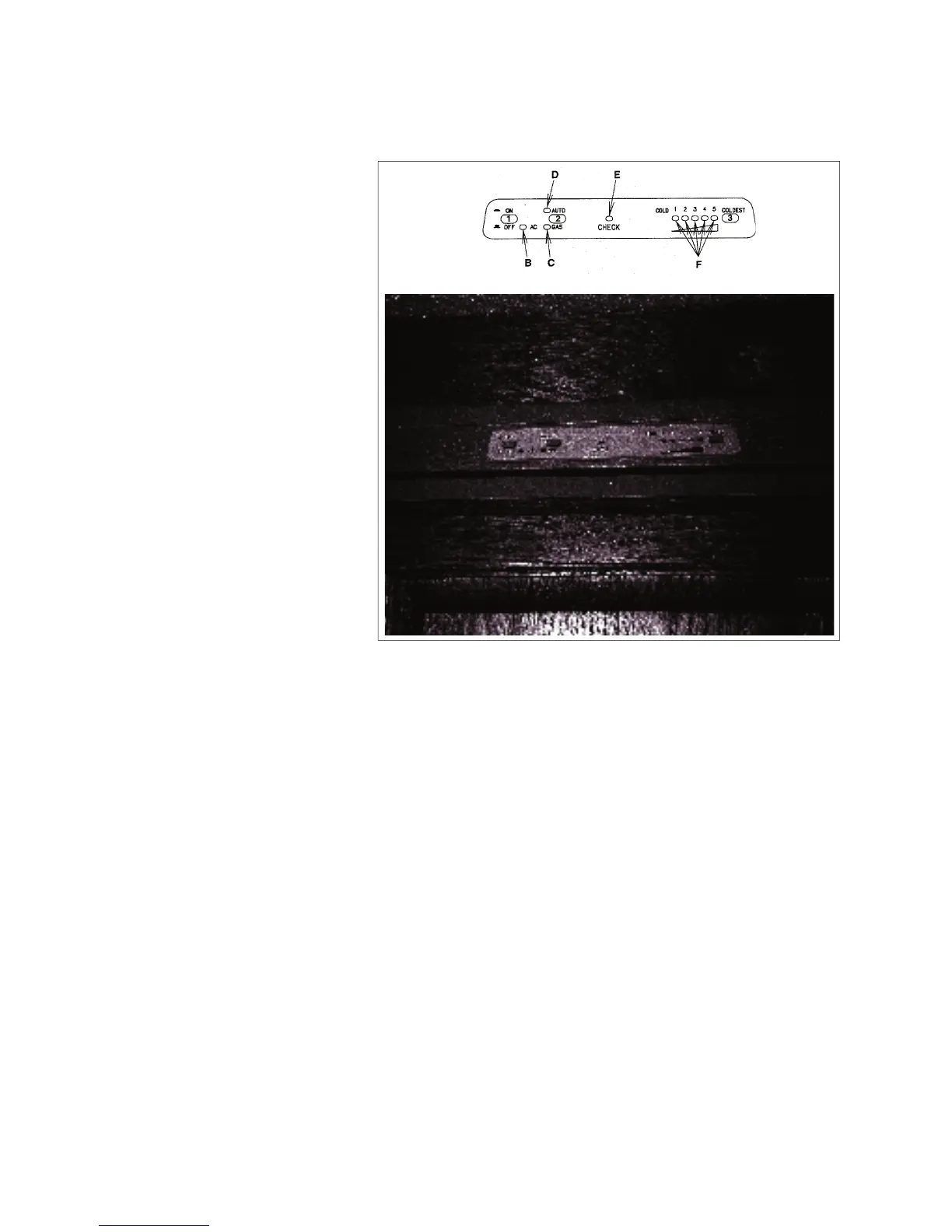

Fig. 4-15 REFRIGERATOR CONTROL PANEL
Panel
a. If 120 volt power is available, the AC
indicator light (B) will come on and the AC
circuit will operate the refrigerator.
b. If 120 volt power is not available, the GAS
indicator light (C) will come on and the LP
gas system will power the refrigerator.
IMPORTANT
If the CHECK indicator light
(E)
comes on and the GAS indicator
light doesn't come on, the burner
has failed to ignite, turn the sys-
tem off and then on again to light
the burner.
Depress the switch again to select the GAS mode
and the LP gas system will provide power to the
refrigerator. The GAS indicator light (C) will come
on. Refer to IMPORTANT above if the CHECK
indicator light (E) comes on.
3.
Temperature Switch:
This push button selector switch sets the
desired refrigerator operating temperature
during operation. Depress the switch once to
move the temperature selection to the next
setting. The indicator lights (F) will illuminate
as the selector switch is depressed to identify
the operating temperature selected. Set at
the coldest setting for the fi rst couple of hours
of operation to cool everything down and then
select the mid-range setting.
Refer to the refrigerator operator's manual in the
information package for more detailed instructions.
IMPORTANT
When running the fridge on LP
gas, ensure the shut off value on
the LP tanks are open.
