4.15.5 WATER SYSTEM (EMBASSY ONLY)
Access the water system compartment through the door on the right side of the vehicle. Review the oper-
ating instructions and control functions before trying to use the system.

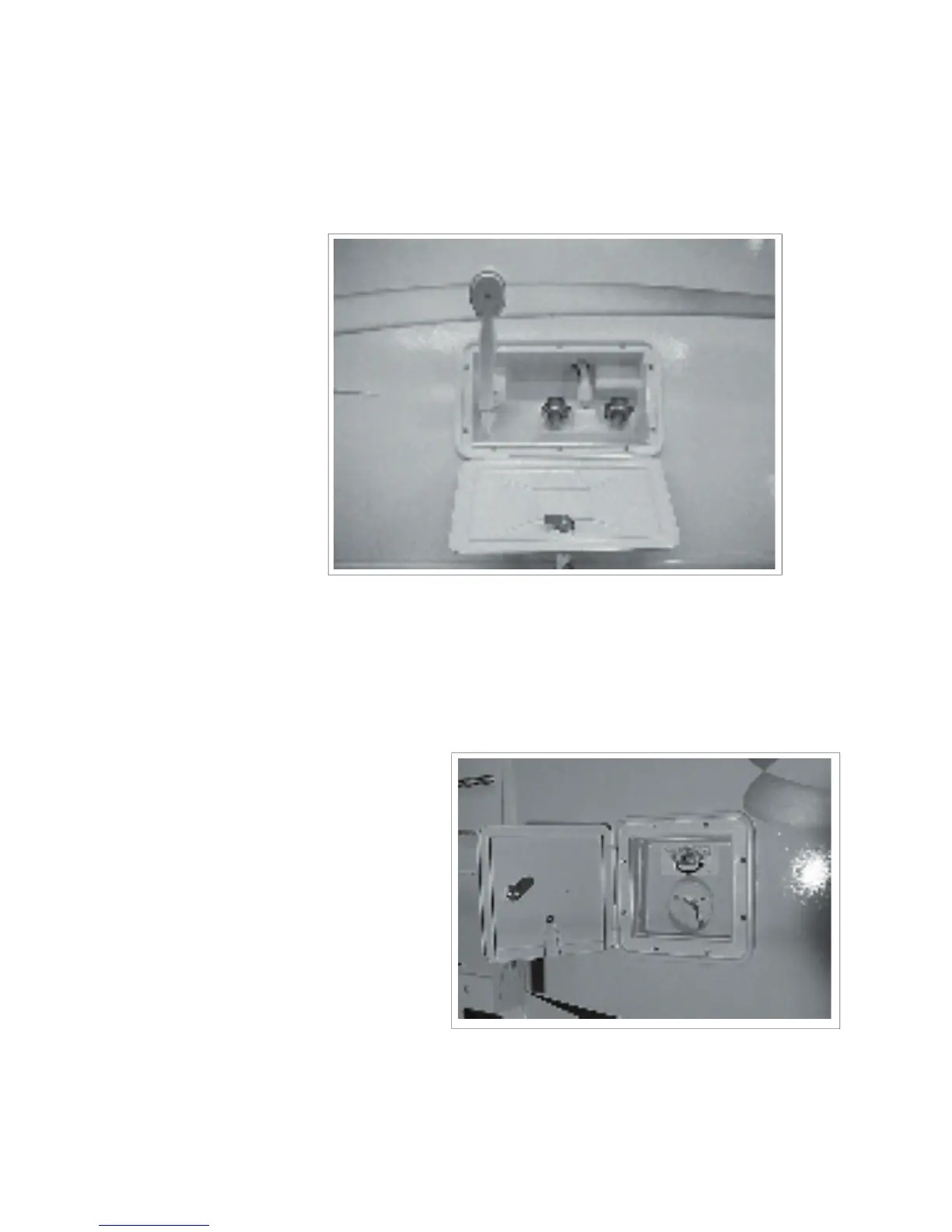

Fig. 4-27 EXTERIOR SHOWER
1.
Exterior Shower
(optional) (Fig 4-27):
a.
Hot Water :
This water tap con-
trols the fl ow of hot
water to the shower
head. Turn clockwise
to turn off and coun-
terclockwise to turn
on.
b.
Cold Water:
This standard water
tap controls the fl ow
of cold water to the
shower head. Turn
clockwise to turn off
and counterclockwise
to turn on.
IMPORTANT
Always use pressure regulator
between the outside water supply
and the motorhome to eliminate
pressure surges and spikes.
c.
Shower Head:
This standard fl exible hose shower
system is mounted on the front of the
compartment. Turn the handle and lift
the head to use it. Turn the collar on the
head to change the spray pattern.
d.
Water Pump switch:
This switch controls the power to the
water pump. See section 4.15.3 Water
Pump for more details.
2. a.
Water Fill Selector Valve:
This valve directs the fl ow of fresh water
into the internal water tank or directly into
the water system and bypass the tank.
Turn counterclockwise when fi lling the
tank and clockwise to bypass the tank
and plumb directly into the water system.
b.
Water Line Fitting:
This fi tting and cap is the water input
fi tting. Always install cover when water
line is removed.
