Triple E COMMANDER - Dash Controls

4-2

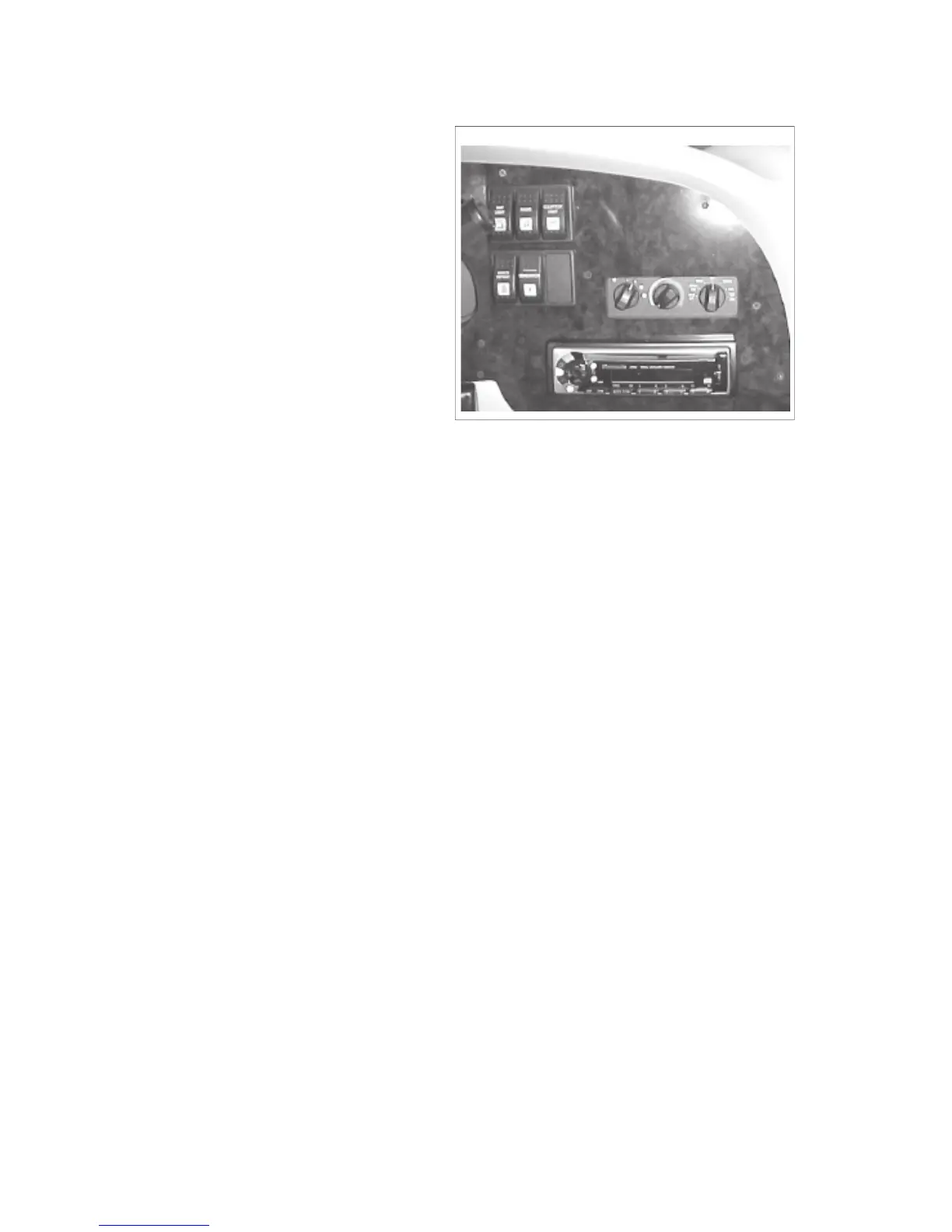

Fig. 4-2 RIGHT SIDE - UPPER
COMMANDER / EMBASSY
4.2 DASH CONTROLS
1.
Right Side:
a.
AM/FM CD Deck:
This is a standard AM/FM
compact disc deck. Refer to the
decks manufacturers manual
in the information package for
more details. An optional cas-
sette deck is also available.
b.
Climate Control:
This is the standard climate con-
trol used for all Class A Triple E
and includes both the heating
and cooling functions for the
driving section of the vehicle.
c.
Interior Lights (Commander
only):
This push button switch controls
the power to the coach (on a
cabinet) foot lights. Depress the
lower portion of the switch to
turn the foot lights on. Depress
the top portion to turn them off.
g.
Mirror Heaters - (Commander only):
This push button switch controls the power
to the exterior rear view mirror heaters.
Depress the bottom portion of the switch to
turn the heaters on and the top portion to
turn off. The heater will automatically be
shut off when the ignition switch is turned
off. The heater will also shut off once it
reaches its desired temperature.
2.
Left Side:
a.
Coach Battery Connect (Section 13.15):
This spring loaded push button switch con-
trols the interconnect circuit between the
auxiliary and chassis batteries. Depress
and hold the switch to connect the auxiliary
batteries to the chassis batteries. Release
the switch to disconnect. Use this inter-
connect only when the chassis batteries
are too run down to start the engine.
b.
Rear Auxiliary Heater Fan (Commander
and Embassy XL only):
This push button controls the power to the
rear auxiliary heater. Depress the bot-
tom portion of the switch to turn the fan 2
speed switch on and the top portion to turn
off.
c.
Overhead Fans (Optional):
This push button switch controls the power
to the fans mounted on the bottom of the
overhead cabinet. Depress the bottom
portion of the switch to turn the fan on and
the top portion of the switch to turn off.
d.
Stereo:
This push button switch controls the power
to the stereo. Depress the bottom portion
of the switch to turn on the power from the
coach battery. Depress the switch again
to turn it off. Unit also has a switch in the
bedroom upper console and lower gal-
ley. This switch allows the user to play the
stereo without turning on the ignition.
e.
Map Reading Lights:
This push button switch controls the power
to the lights on the bottom of the overhead
cabinet above the dash used to illuminate
a map. Depress the bottom portion of the
switch to turn the map light on and the top
to turn it off.
f.
Auxiliary Generator Control (Optional):
This 3 position push button switch controls
the operation of the auxiliary generator.
Depress the bottom portion of the switch
against the spring to engage the starter
to the auxiliary generator. Release the
switch when the generator engine starts.
Depress the top portion of the switch and
hold until the generator turns off and then
