Triple E COMMANDER - Battery Disconnect

4-24
COMMANDER / EMBASSY

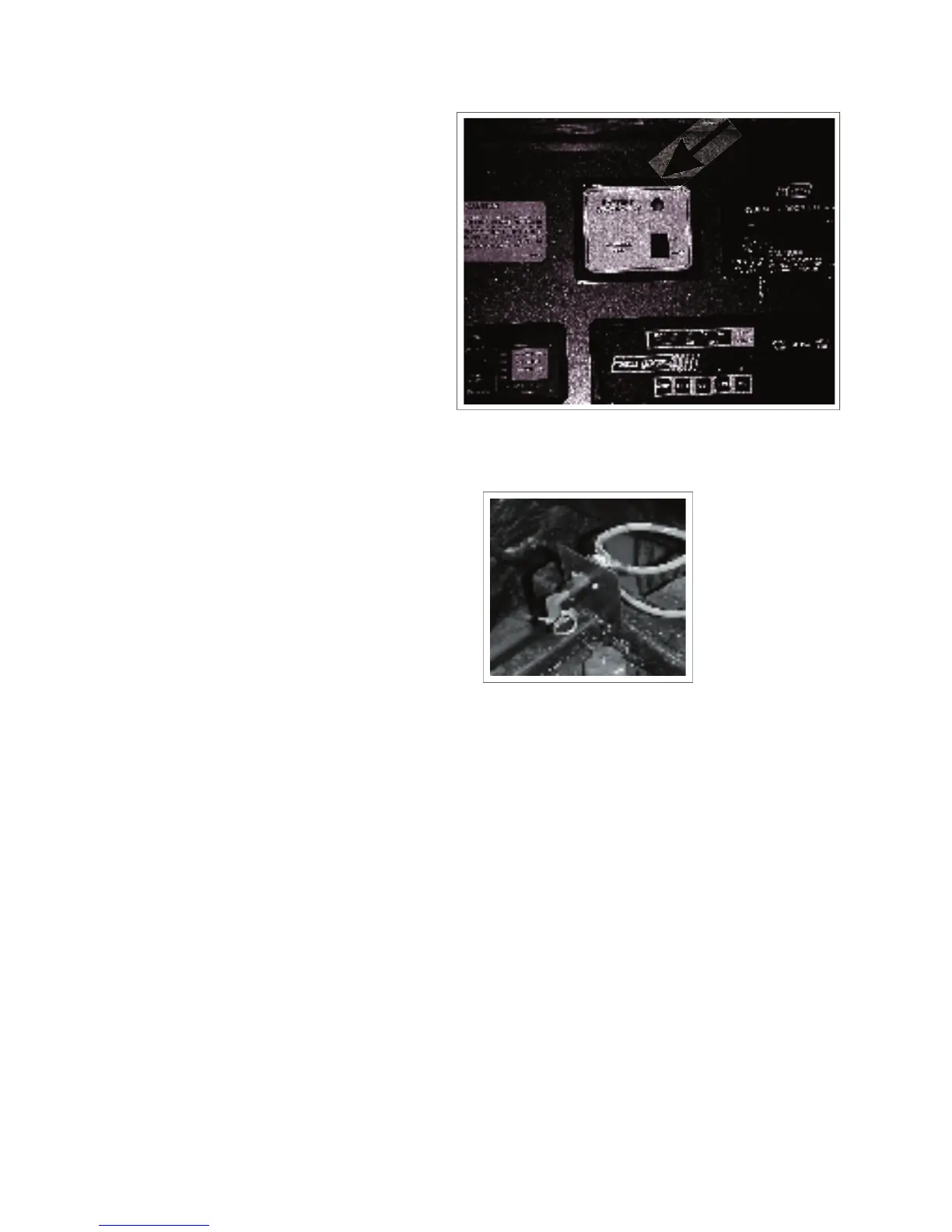

Fig. 4-31 BATTERY DISCONNECT (COMMANDER)
4.17 BATTERY DISCONNECT
4.17.1 COMMANDER
This switch disconnects the coach batteries
from the electrical system when the motorhome
is in storage to prevent battery discharge.
Depress the upper portion of the switch to con-
nect the batteries into the electrical system for
normal operation and the indicator light will be
illuminated. Depress the bottom portion of the
switch to disconnect the battery for storage to
prevent battery drain. The indicator light will
not be lit.
4.17.2 EMBASSY
This key switch located under the hood discon-
nects the coach batteries from the electrical
system to prevent battery discharge when the
motorhome is in storage.
Turn the key counterclockwise to turn off and
clockwise to turn on.
Fig. 4-32 BATTERY DISCONNECT (EMBASSY)
