Triple E COMMANDER - Slide Out Room

9-3
COMMANDER / EMBASSY
9.3 SLIDE OUT ROOM
A motorhome may be equipped with an optional slide out room to provide more living area for the oc-
cupants. Triple E supplies a video explaining the operation of the slide out system with each slide out
equipped model. Please use this video to familiarize yourself with the operations of this system.
9.3.1 SLIDE OUT
ROOM-POWERED
Follow this procedure when using
slide out room:
1. Be sure that motorhome is
properly levelled.
IMPORTANT
If the unit is not properly
levelled before extending the
room, the slide out mecha-
nism may bind and be dam-
aged. The levelling jacks
must be down and the lights
on the jack control panel on
in order for the slide out con-
trol to operate.
Left
Right

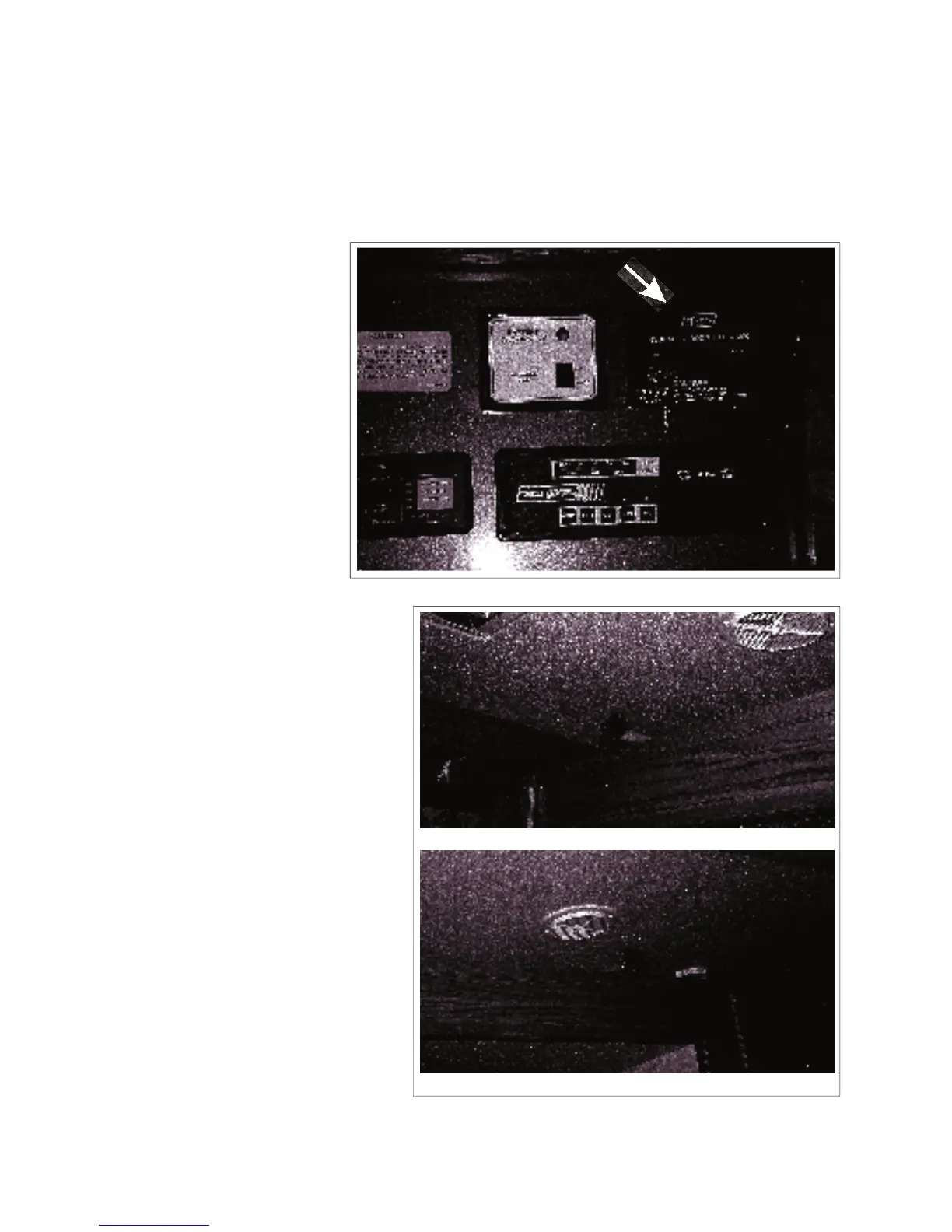

Fig. 9-3 CONTROL PANEL
Fig. 9-4 TRAVEL LOCKS
2.
Before operating slide out:
a. If this is the fi rst time you are
operating the slide-out, take time
to view the video on Operating the
Slide-Out that you received from
your dealer at the time of delivery.
b. Level the motorhome following
the instructions in Levelling Your
Motorhome.
c. Make sure there is adequate
space beside your motorhome for
the slide-out room to be extended.
d. Remove the two travel locks
located at fl oor level on a galley
slide unit or above the slide-out on
all other side models.
e. Check the interior of the slide-
out to make sure there are no
obstructions on the fl oor or lean-
ing against the walls. Close all
cabinet doors.
f. Check the exterior of the unit to
ensure all baggage doors are
closed and any obstructions are
