Triple E COMMANDER - Comfort Control Center

4-13
4.12 COMFORT CONTROL CENTER
A comfort control center is located in the motorhome (living
area or bedroom) to control the heating and cooling systems
in the vehicle. The control center is customized to the speci-
fi cations of your vehicle and will control one or more furnaces
and air conditioners.
Review the operator's manual in the information package for
detailed operating instructions. The control functions include:
1.
Liquid Crystal Display (A):
This liquid crystal display shows the operator the specifi c
operating parameters of the comfort appliances. The dis-
play will change to refl ect the varying operating selections
by the user.
2.
Mode Selector Button (B):
This push button switch controls the selection of the
system operating mode. Depress the switch momentarily
to step the fan, cool, furnace and heat strip. Depress the
switch again momentarily to move to the next selection.
The mode selected will show in the Liquid Crystal Dis-
play.
3.
Fan Speeds (C):
This push button switch controls the settings for fan
speed and mode. Depress the switch momentarily to
step the fan through each setting from low, medium, high
and auto. Depress the switch again momentarily to move
to the next setting. The speed selection will show in the
Liquid Crystal Display.
4.
Temperature Selector Buttons (Up and Down) (D):
These push buttons raise or lower the selected system
temperature. Depress the switch momentarily to change
the temperature. Continue to momentarily depress the
switch to change the desired temperate. The selected
temperature will show in the Liquid Crystal Display.
5.
Zone and Stage Selector Buttons (E):
These push buttons select the individual zones and
stages for the system. Depress both buttons simultane-
ously in a momentary manner to step the control system
through its choice of zones and stages. Zones refer to
air conditioner cooling areas and stages refer to heating
areas. The selected zones and stages will show in the
Liquid Crystal Display. This feature is not available on
Triple E Motorhomes.
6.
On/Off Switch (F):
This sliding lever switch is the master ON/OFF switch for
the comfort system. Move the lever to the left to turn off
A. Liquid Crystal Display
B. Mode Selector Button
C. Fan Speed Selector Button
D. Temperature Selector Buttons
E. Zone and Stage Selector
F. On/Off Switch
Schematic
Control

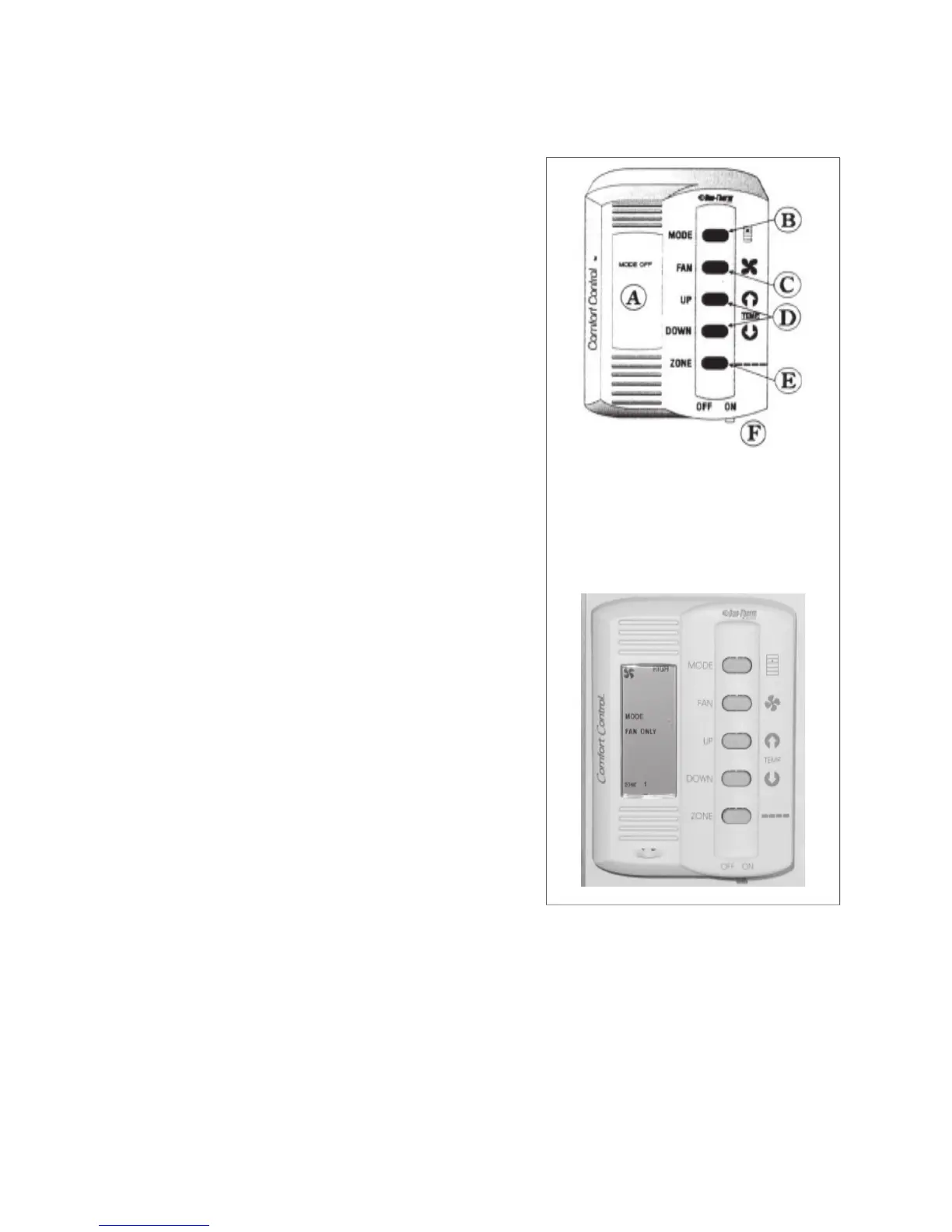

Fig. 4-17 COMFORT CONTROL CENTER
COMMANDER / EMBASSY
