4-20
COMMANDER / EMBASSY
5.
Black Water Tank Flush
Fitting:
This fi tting directs water
directly into the black water
tank and can be used to
rinse the tank when re-
quired. Be sure the sewer
valve (black water tank
valve) is open before the
water is turned on.
6.
Water System Winterizing
Valve:
This diverter valve is used
when the water system is
being winterized. Watch the
pointer at the pivot point.
Move the handle to its hori-
zontal position for normal
operation and vertical when
winterizing the system.
Refer to brochure in infor-
mation package for more
detailed instructions.
7.
Potable Antifreeze Line:
This line is used to draw
potable antifreeze into the
lines when winterizing the
water system. Normally
1.5 gallons of antifreeze is
required.
8.
Water System Pump
Panel:
The pump for the water
system is mounted in the
compartment behind this
panel.

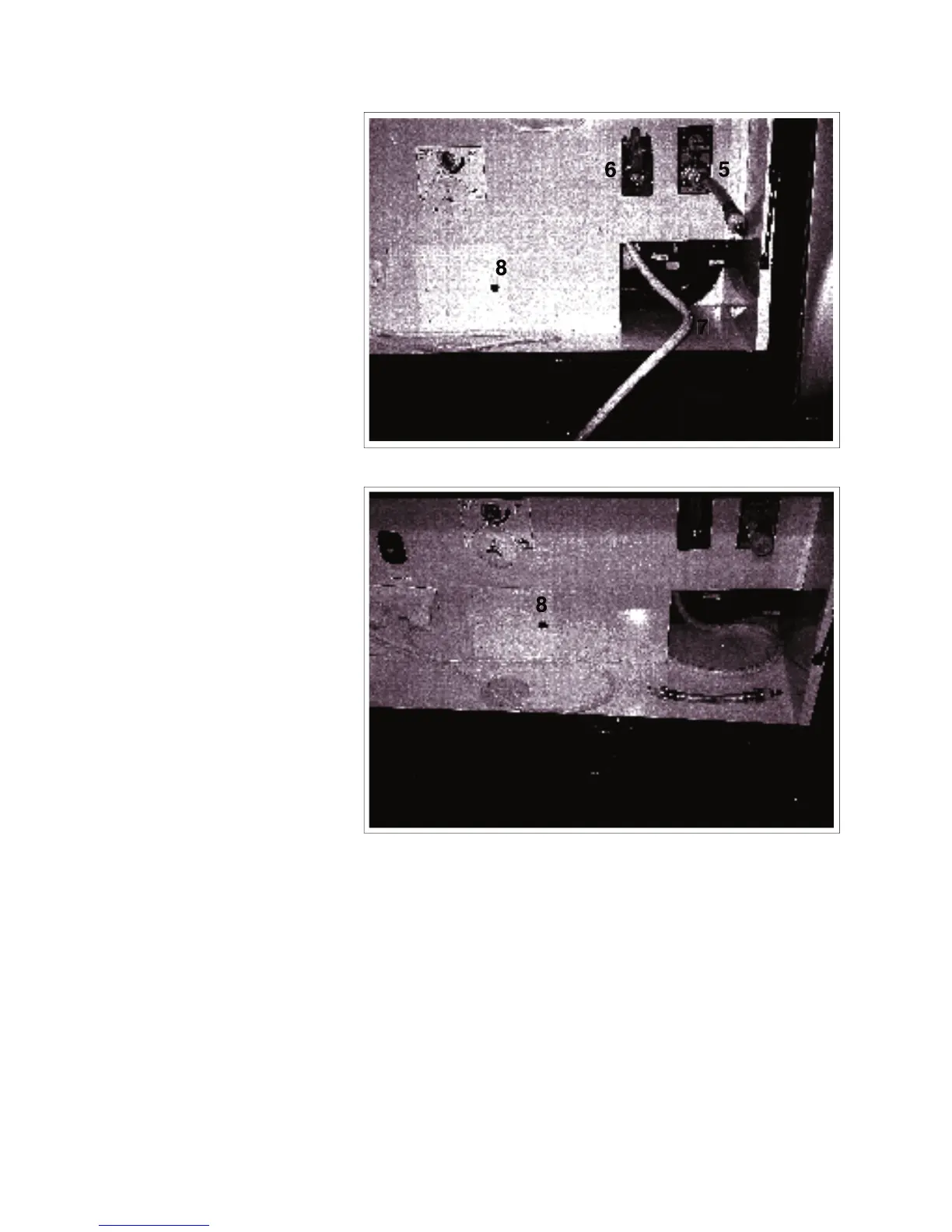

Fig. 4-25 WATER COMPARTMENT
Fig. 4-26 DISCHARGE VALVES
9.
Discharge Outlet:
Discharge Fitting:
This fi tting carries the discharge from the
grey and black water tanks. Connect
the discharge line to the fi tting and route
into an approved sanitary disposal sys-
tem. Use the opening in the bottom of the
compartment when routing the discharge
hose to eliminate any low spots in the hose
when discharging. Install dust cap when
the discharge hose is removed.
10.
Black and Gray Tank Discharge Valves:
a.
Black Water Tank Valve:
This is the discharge valve for the black
water tank. Pull out to open valve and
push in to close. Always empty black wa-
ter tank fi rst and use the gray water tank to
fl ush out any solids which the sewer hose
left in.
b.
Grey Water Tank Valve:
This is the discharge valve for the grey wa-
ter tank. Pull out to open valve and push
in to close. Always empty black water tank
fi rst and then the grey water. This proce-
dure will use the grey water to fl ush out
any solids left in the tank discharge plumb-
ing and sewer hose.
