Operation MicronNav System
0656-SOM-00001-07 69 © Tritech International Ltd.

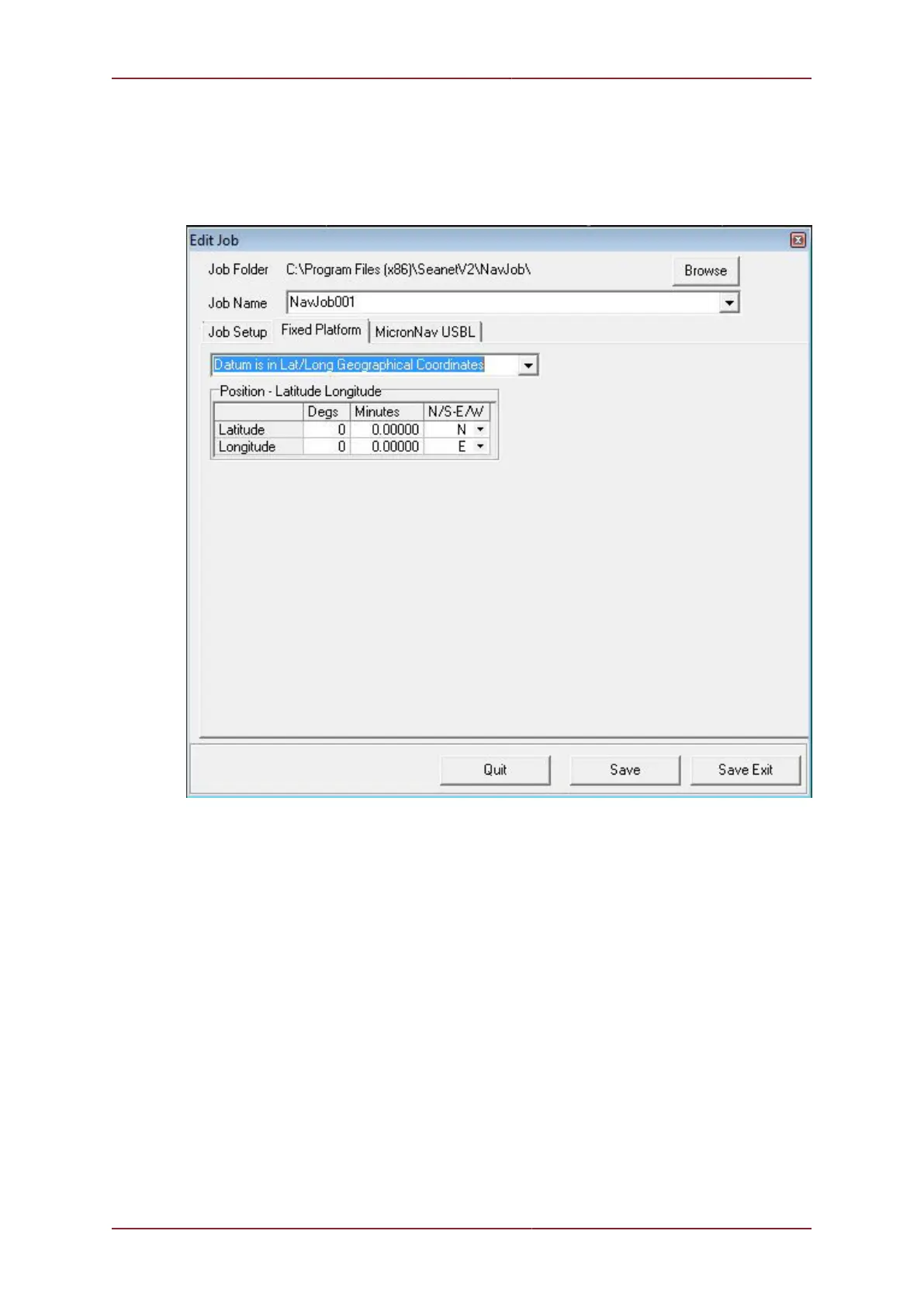

Once the details have been entered on the Job Setup tab click the Save button to confirm the
details and select the Fixed Platform tab page. If a GPS Receiver is not being used but the
operator knows the Latitude and Longitude of the test site (Datum point) this can be entered
manually here, if a GPS Receiver is being used no entries are required in this tab as the
position information will be taken from the GPS input.
If this tab has been edited click the Save button to confirm the details. Now select the
MicronNav USBL tab page and enter the previously measured installation offsets of the USBL
Dunking Transducer and set the Pitch and Roll data source to the USBL Dunking Transducer
integral sensor.
