AWC708C PLUS Motion Control User Manual
Calculate the Pulse Distance page. Press【↑】【↓】to move cursor, press
number keys to modify parameters, and press【Enter】to calculate the
distance per pulse. The calculation of distance per pulse, please refer to
the Chapter 3.5 for more details.

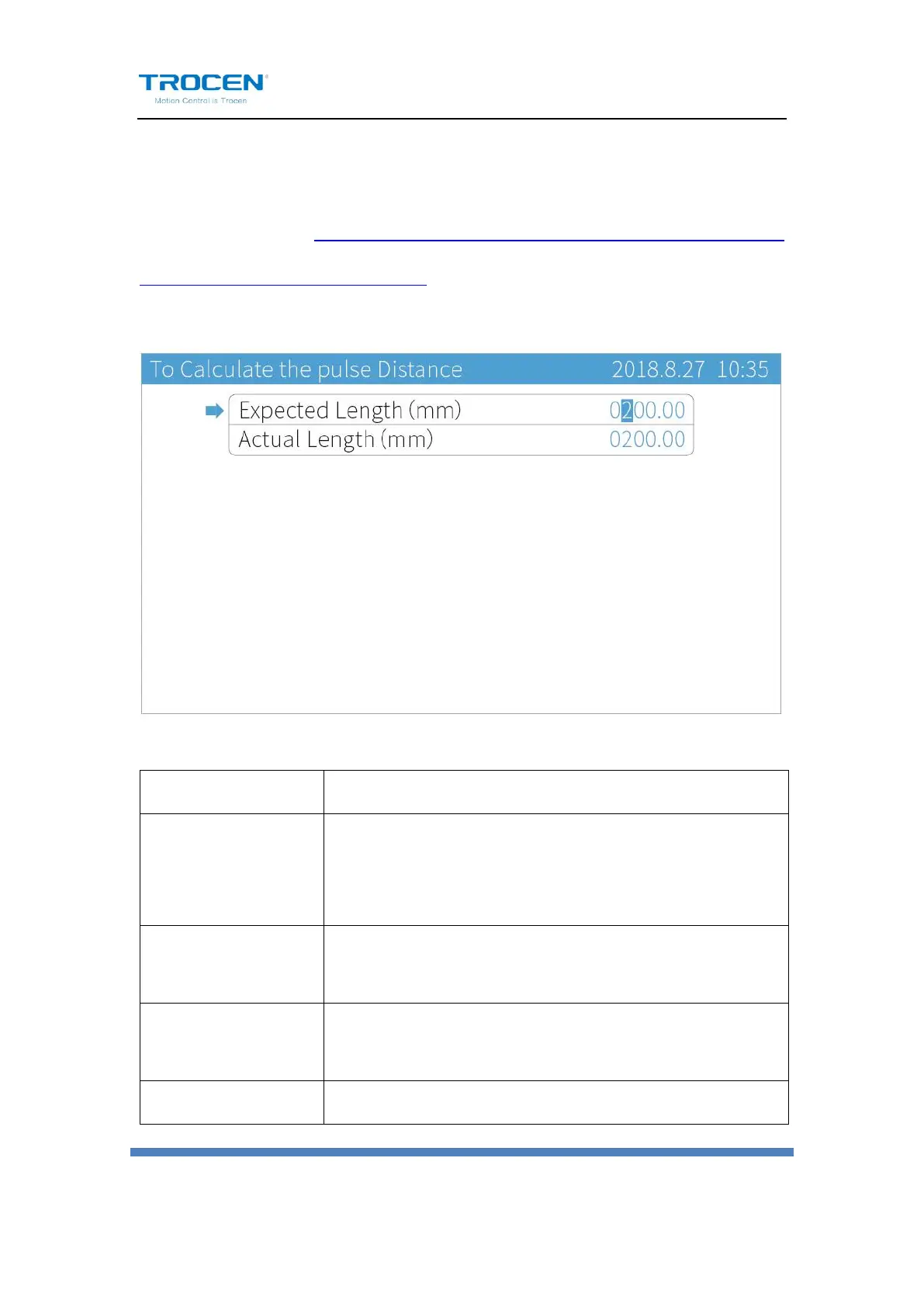

Figure7-1-3 Calculate the Distance Per Pulse
Table7-1- X Axis Parameters Instruction
The single distance or angle which the motor moves, when
the controller sends a pulse signal. If set incorrectly, the
graphics will change.
Effective values for driver level to change, Falling Edge or
Rising Edge.
The direction in which the machine moves when reset. If set
incorrectly, the axis moves against origin direction.
The direction in which the axis moves when press keys on
