Center Console Models • Owner’s Manual Supplement Chapter 3: Locations

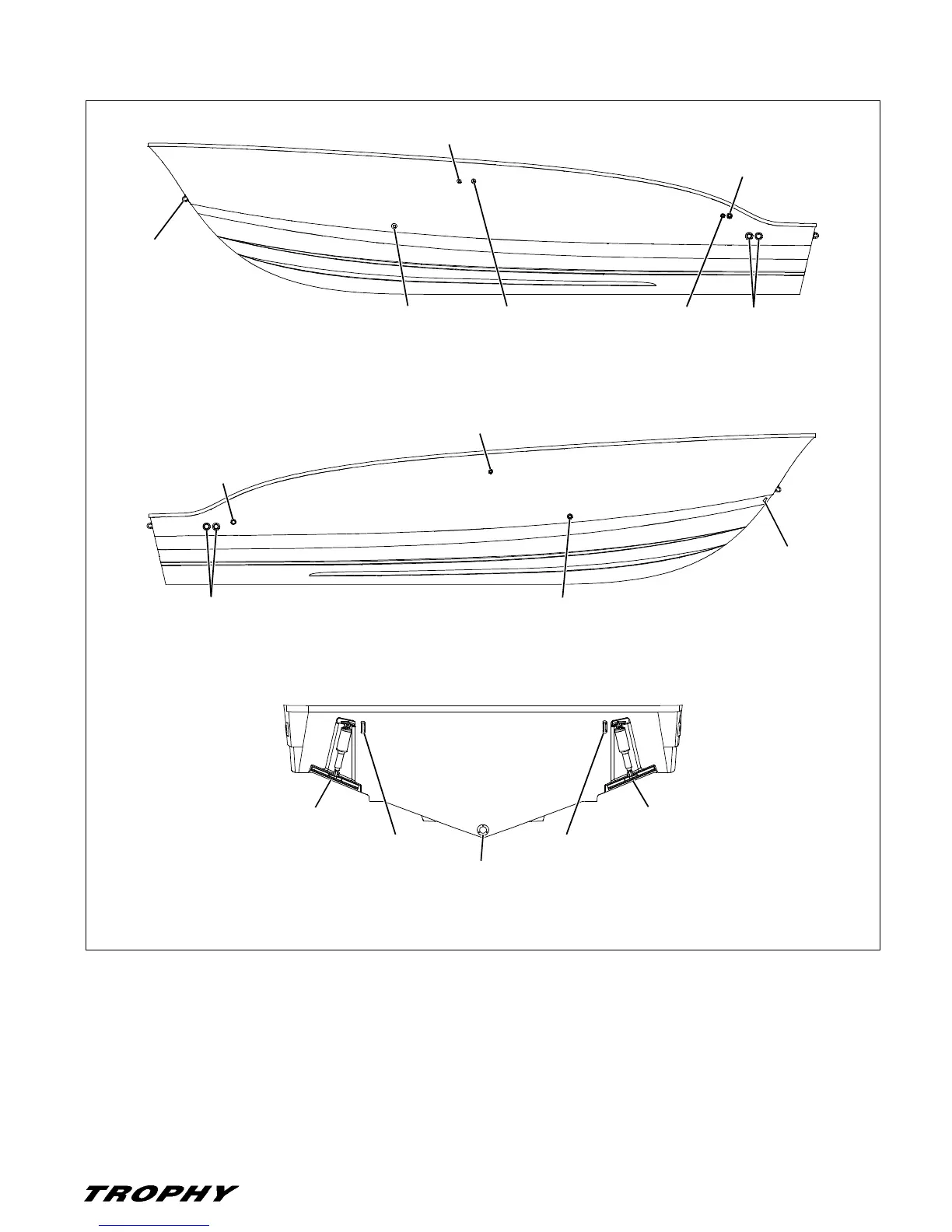

2503 Exterior Hull Views
BOW EYE
PORT HULLSIDE
STERN
EYE
TRIM
TAB
STERN
EYE
TRIM
TAB
AFT BILGE
PUMP DRAIN
STARBOARD HULLSIDE
SINK DRAIN
(IF EQUIPPED)
FORWARD BILGE
PUMP DRAIN
DECK
DRAINS
FISH BOX
DRAIN
BAITWELL
DRAIN
FRESHWATER TANK
VENT
(IF EQUIPPED)
HOLDING TANK VENT
(IF EQUIPPED)
DECK
DRAINS
FISH BOX
DRAIN
ANCHOR LOCKER
DRAIN
BILGE DRAIN
PLUG
TRANSOM
