Trophy 1703 - Electrical Routings; 12-Volt DC Deck Harness - 1703

69
Center Console Models • Owner’s Manual Supplement Chapter 11: Electrical System
Electrical Routings

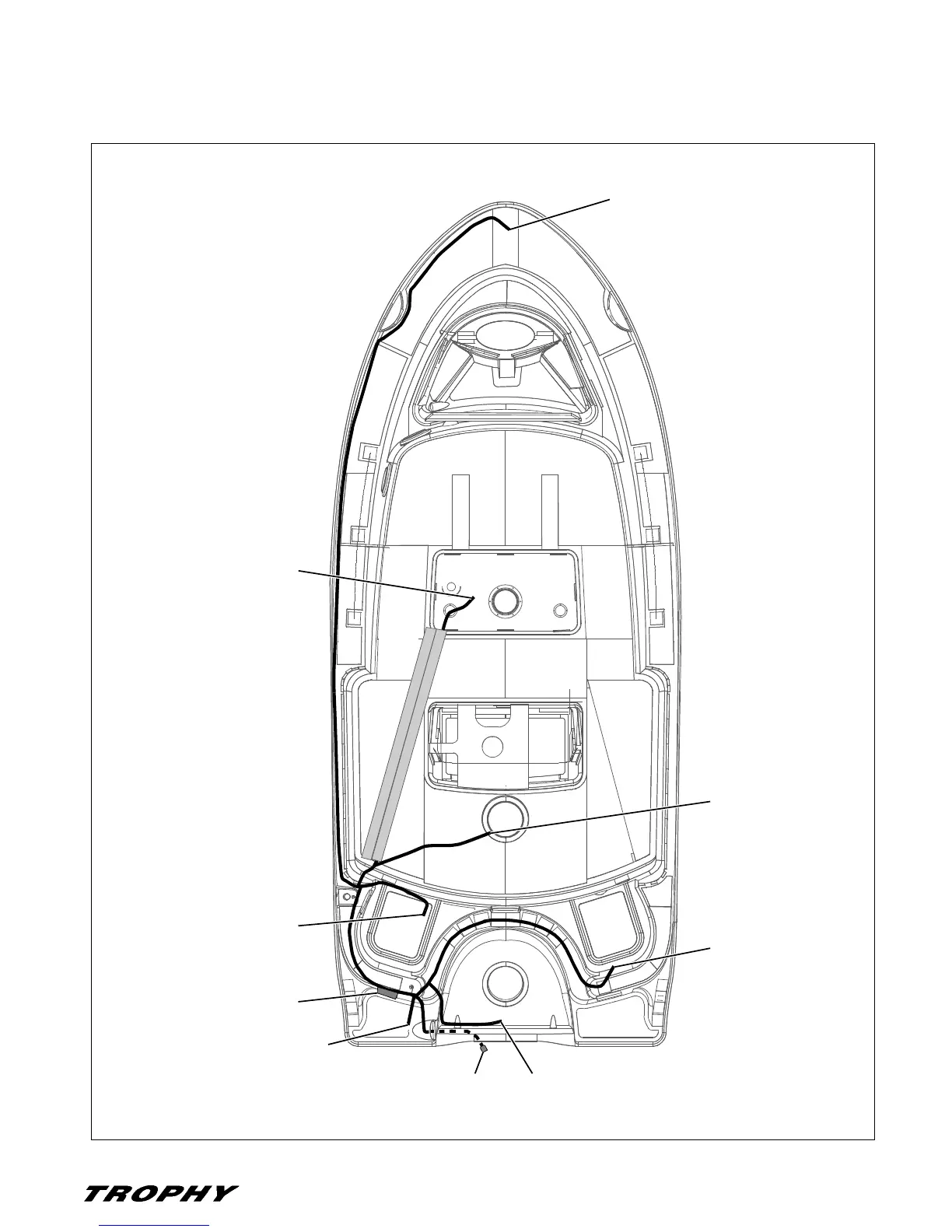

12-Volt DC Deck Harness - 1703
NOTE: VIEW IS UNDERSIDE OF DECK
BOW LIGHT
DASH HARNESS
ALL-ROUND
LIGHT
BAITWELL PUMP
FUEL TANK
BILGE
BATTERY SWITCH
ENGINE
PLUG
GROUNDING BLOCK
PUMP
STARBOARD PORT
SENDING UNIT
