Trophy 1703 - 12-Volt DC Deck Harness - 2103

71
Center Console Models • Owner’s Manual Supplement Chapter 11: Electrical System
12-Volt DC Deck Harness - 2103

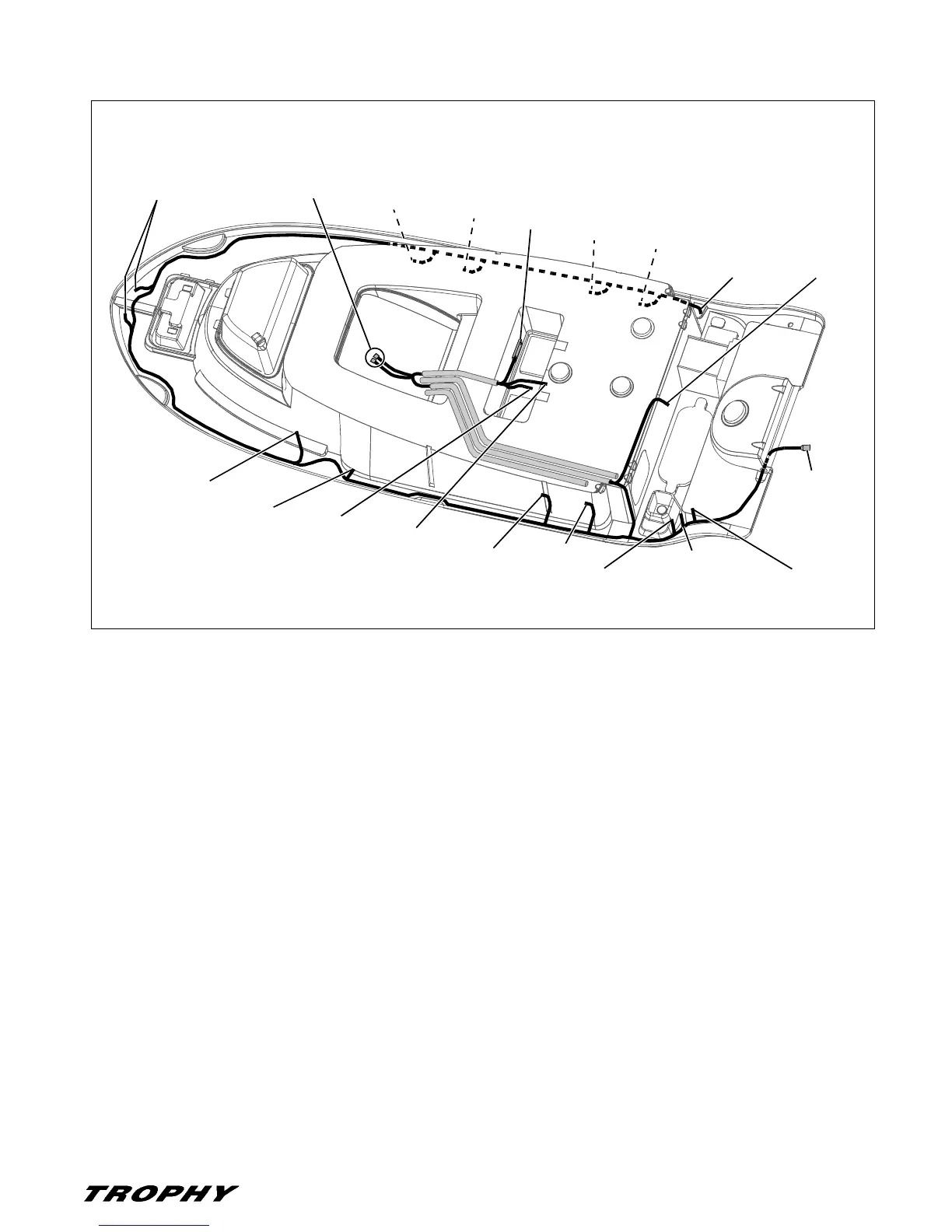

NOTE: VIEW IS UNDERSIDE OF DECK
TO DASH
HARNESS
BUSS
BAR
FUEL FILL
DECK FITTING
COURTESY
LIGHT
GROUND
COURTESY
LIGHT
BOW
LIGHTS
COURTESY
LIGHT
SPEAKER
SPEAKER
SPEAKER
SPEAKER
BAITWELL
PUMP
FORWARD
BILGE PUMP
COURTESY
LIGHT
FRESHWATER PUMP
(IF EQUIPPED)
ENGINE
PLUG
AFT
BILGE PUMP
SEAWATER WASHDOWN
PUMP
(IF EQUIPPED)
FUEL TANK
SENDING UNIT
STARBOARD
PORT
