76
Chapter 11: Electrical System Center Console Models • Owner’s Manual
Supplement

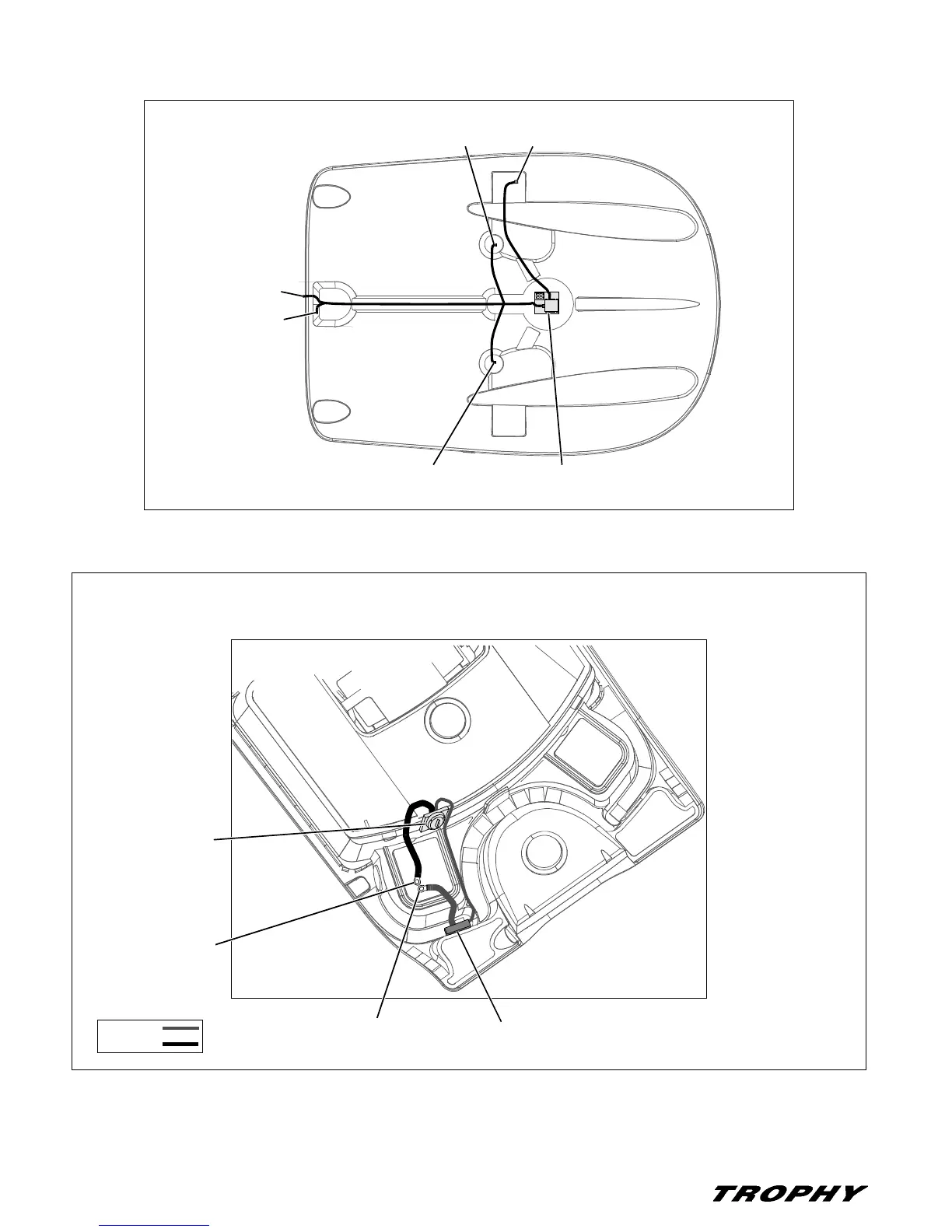

12-Volt DC T-Top Harness - 2503 (If Equipped)
Battery System - 1703 & 1903
NOTE: VIEW IS UNDERSIDE OF HARDTOP
ALL-ROUND
LIGHT
OVERHEAD
LIGHT
FUSE
BLOCK
SPOTLIGHT
OVERHEAD
LIGHT
HARNESS
PLUG
NOTE: VIEW IS UNDERSIDE OF DECK
BATTERY
BATTERY
SWITCH
ENGINE
GROUND
GROUNDING
BLOCK
NEGATIVE
POSITIVE
POSITIVE BATTERY CABLES ARE RED
NEGATIVE BATTERY CABLES ARE YELLOW
NOTES:
