59
Center Console Models • Owner’s Manual
Supplement
Chapter 8: Deck Equipment
Canvas (If Equipped)

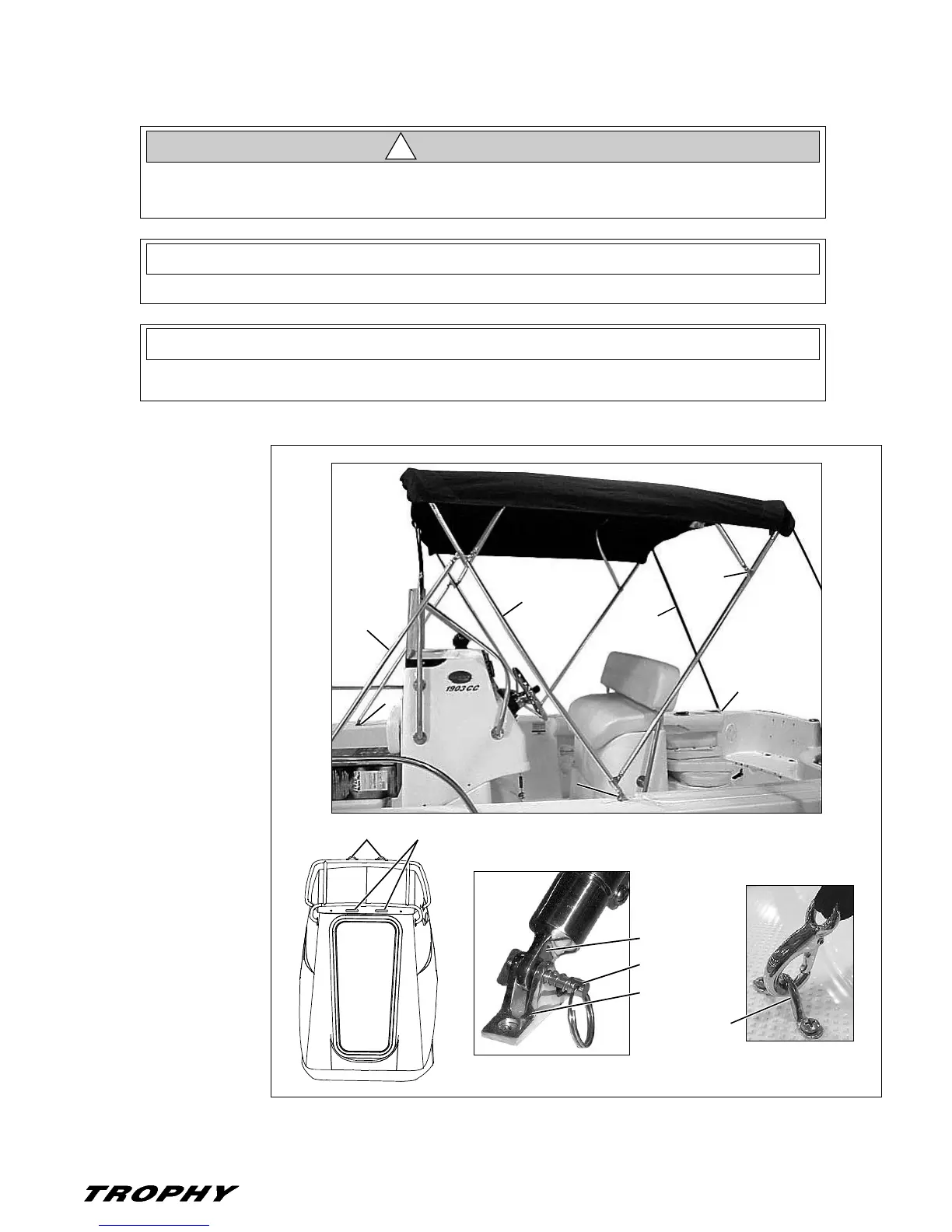

Bimini Top
1. Insert the end eyes of
the main bow (A)
into the aft deck
hinges (B) and insert
the securing pins.
2. Unzip and remove
the boot.
3. Insert the end eyes of
the forward braces
(C) into the forward
deck hinges (D) and
insert the securing
pins.
4. Unfold the canvas
and hook the hold
down straps (E) to the
deck loops (F) and
windscreen rail loops
(G) or console loops
(H) (2503 only).
5. Adjust hold down
straps until tight.
• The jaw slides (I)
should not need to be
adjusted.
• If you decide to adjust
the jaw slide positions,
obtain the correct
measurements from
your selling dealer.
PRODUCT or PROPERTY DAMAGE HAZARD!
Take down and securely stow ALL canvas BEFORE transporting your boat by road.
CAUTION
!
Two people are needed for most of the tasks listed in this section.
NOTICE
BEFORE cleaning and/or stowing your canvas, read the Canvas Care section, later in this
chapter.
NOTICE
END EYE
DECK HINGE
SECURING PIN
G
DECK LOOP
A
B
C
D
E
F
I
H
