Chapter 7: Plumbing Center Console Models • Owner’s Manual
Supplement
2103 Baitwell & Seawater Washdown System
Filling & Using the Baitwell
1. If necessary, Open the sea-
water intake seacock.
2. On the main switch panel,
turn On the baitwell
switch.
• Open the drain control y-
valve to drain the baitwell.
• Close the drain control y-
valve after the baitwell has
drained.
Troubleshooting
If you followed the instruc-
tions in steps 1 and 2 above, but
water does not pump into the
tank, possible causes are:
• The intake seacock is
Closed.
• A hose is collapsed or there
is clogging debris in the sys-
tem.
• The baitwell circuit breaker
needs to be reset.
Aeration Tips
The level of aeration is con-
trolled by the aerator control
valve.
• In clean ocean water little or
no aeration is needed.
• In brackish back waters a
higher level of aeration may
be needed.
Seawater Washdown Sys-
tem (If Equipped)
1. If necessary, Open the sea-
water intake seacock.
2. On the main switch panel,
turn On the baitwell
switch.

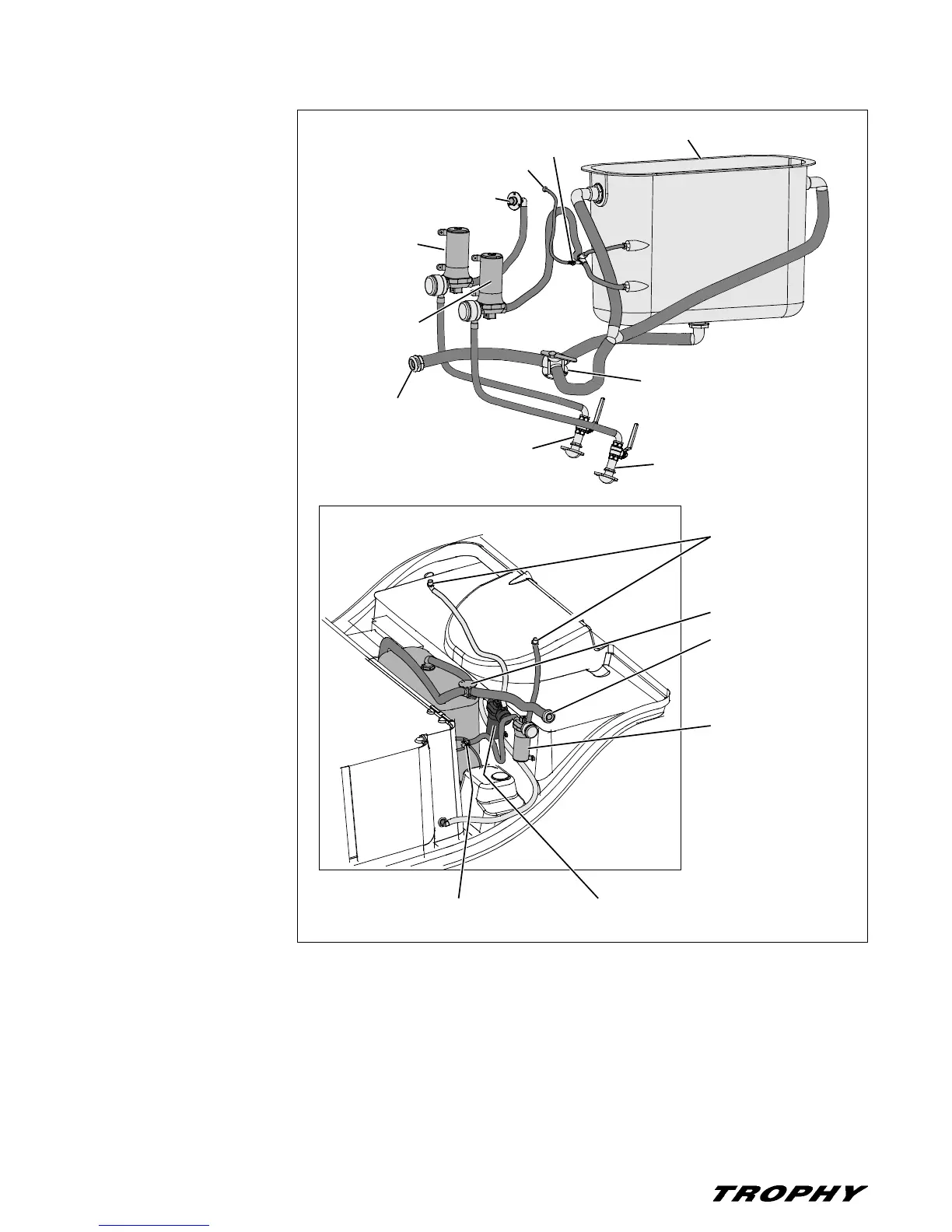

BAITWELL TANK
AERATOR VENT
DECK FITTING
SEAWATER
INTAKE PUMP
AERATOR
CONTROL
VALVE
BAITWELL SEAWATER
DRAIN CONTROL
Y-VALVE
DRAIN
THRU-HULL
SEAWATER WASHDOWN
DECK FITTING
(IF EQUIPPED)
INTAKE SEACOCK
SEAWATER
WASHDOWN
INTAKE PUMP
(IF EQUIPPED)
SEAWATER WASHDOWN
SEAWATER INTAKE
SEACOCK
(IF EQUIPPED)
BAITWELL DRAIN
AERATOR
FROM SEAWATER
INTAKE SEACOCKS
DRAIN CONTROL
Y-VALVE
NOTE: VIEW IS UNDERSIDE OF DECK
BAITWELL INTAKE PUMP
SEAWATER WASHDOWN
INTAKE PUMP
(IF EQUIPPED)
CONTROL VALVE
