Trophy 1703 - 12-Volt DC Deck Harness - 2503

72
Chapter 11: Electrical System Center Console Models • Owner’s Manual Supplement

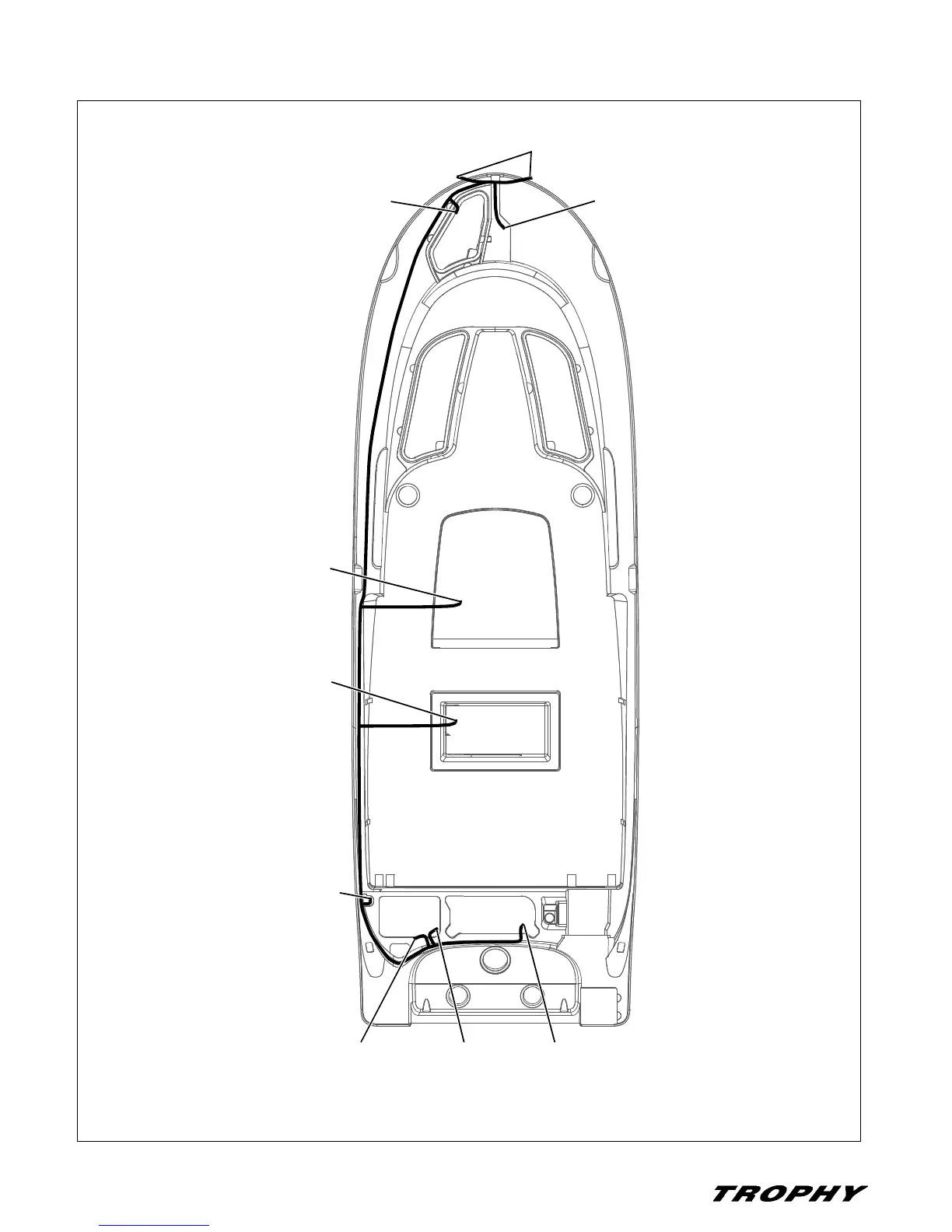

12-Volt DC Deck Harness - 2503
FUEL FILL
GROUND
BAITWELL
PUMP
NOTE: VIEW IS UNDERSIDE OF DECK
SEAWATER WASHDOWN
PUMP
(IF EQUIPPED)
BAITWELL
LIGHT
WINDLASS
(IF EQUIPPED)
WINDLASS CONTROLS
(IF EQUIPPED)
TO DASH
HARNESS
TO LEANING POST
BATTERY HARNESS
BOW LIGHTS
STARBOARD PORT
