Trophy 1703 - Specific Component Locations

21
Center Console Models • Owner’s Manual Supplement Chapter 3: Locations

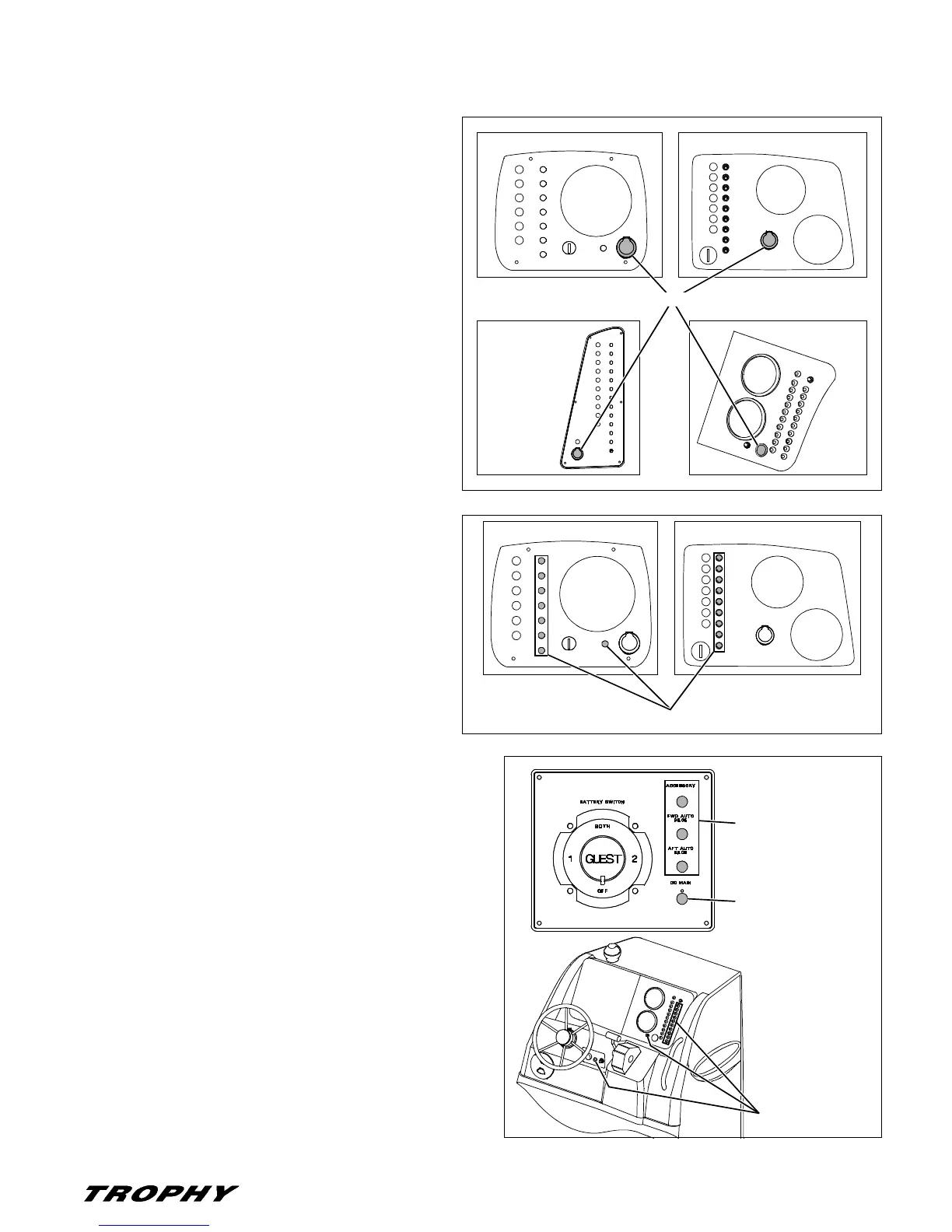

Component Locations
12-Volt DC Accessory Outlet: Located at the helm.
12-Volt DC Push-to-Reset Circuit Breakers - 1703
& 1903: Located at the helm.
12-Volt DC Push-to-Reset Circuit Breakers - 2103:
• The 12-volt DC push-to-reset circuit breakers are located
at the helm.
• The 12-volt DC main accessory push-to-reset circuit
breaker is located on the battery switch panel
12-Volt DC Stand-by Loads Fuses - 2103: Located on the
battery switch panel.
1703 HELM PANEL
1903 HELM PANEL
2103 HELM PANEL
2503 HELM PANEL
12-VOLT DC OUTLETS
1703 HELM PANEL
1903 HELM PANEL
12-VOLT DC PUSH-TO-RESET CIRCUIT BREAKERS
12-VOLT DC STAND-BY
LOAD FUSES
12-VOLT DC PUSH-
TO-RESET CIRCUIT
BREAKERS
12-VOLT DC
MAIN ACCESSORY
PUSH-TO-RESET
CIRCUIT BREAKER
