22
Chapter 3: Locations Center Console Models • Owner’s Manual
Supplement

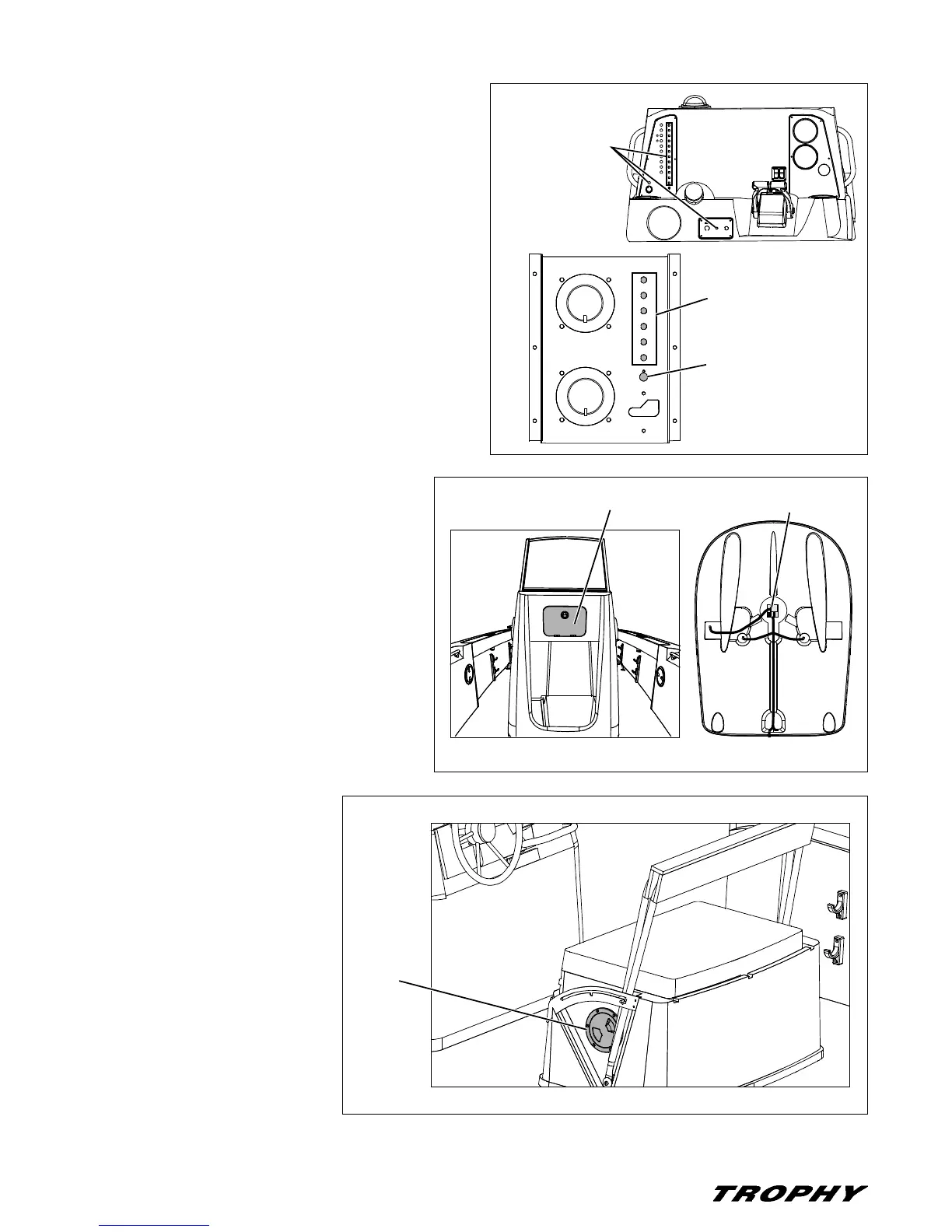

12-Volt DC Push-to-Reset Circuit Breakers - 2503:
• The 12-volt DC push-to-reset circuit breakers are located
at the helm.
• The 12-volt DC main accessory push-to-reset circuit
breaker and stand-by loads push-to-reset circuit breakers
are located on the battery switch panel.
12-Volt DC Fuse Blocks (If Equipped) - 2503:
• One is located below the helm and can be
accessed through a wall hatch in the aft wall of
the head.
• One is located in the t-top (if equipped) and can
be accessed by removing the center cover plate.
Baitwell Aerator Control Valve -
1703: Access through the deck plate
on the port side of the helm seat base.
1
BOTH
2
OFF
1
BOTH
2
OFF
12-VOLT DC PUSH-
TO-RESET CIRCUIT
BREAKERS
12-VOLT DC STAND-BY
LOADS PUSH-TO-RESET
CIRCUIT BREAKERS
12-VOLT DC
MAIN ACCESSORY
PUSH-TO-RESET
CIRCUIT BREAKER
ACCESS HATCH FUSE BLOCK
T-TOP
DECK
PLATE
