Ice Machine Specifications (cont.)
Drain Requirements

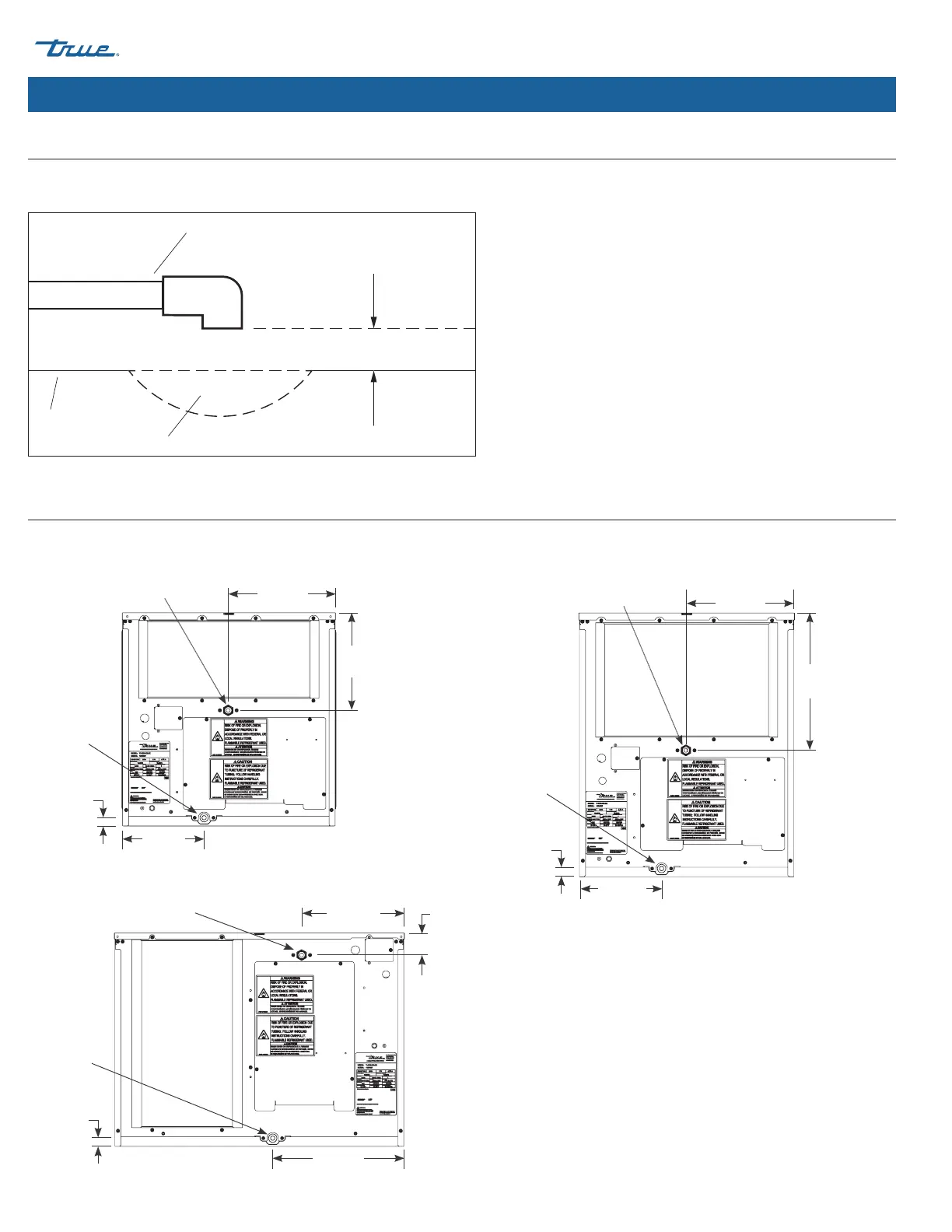

Always install drain lines with a 2” (50.8 mm) vertical air gap between the floor and the line’s end. See fig. 1; figure is not to scale.
Plumbing Connection Diagrams
Ice machine rear views shown.
Drain
Air Gap
Floor
2” (50.8 mm)
Ice Storage Bin Drain
Fig. 1. Drain vertical air gap diagram.
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
10-5/32"
(258 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
11-3/16"
(284 mm)
13-5/8"
(346 mm)
7/8"
(22 mm)
2-9/32"
(58 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
14-5/32"
(360 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
TCIM-422/
TI-422
TCIM-522/
TI-522
TCIM-430/
TI-430
TCIM-530/
TI-530
TCIM-630/
TI-630
TCIM-622/
TI-622
