Maintenance & Cleaning
Sump Tank Removal

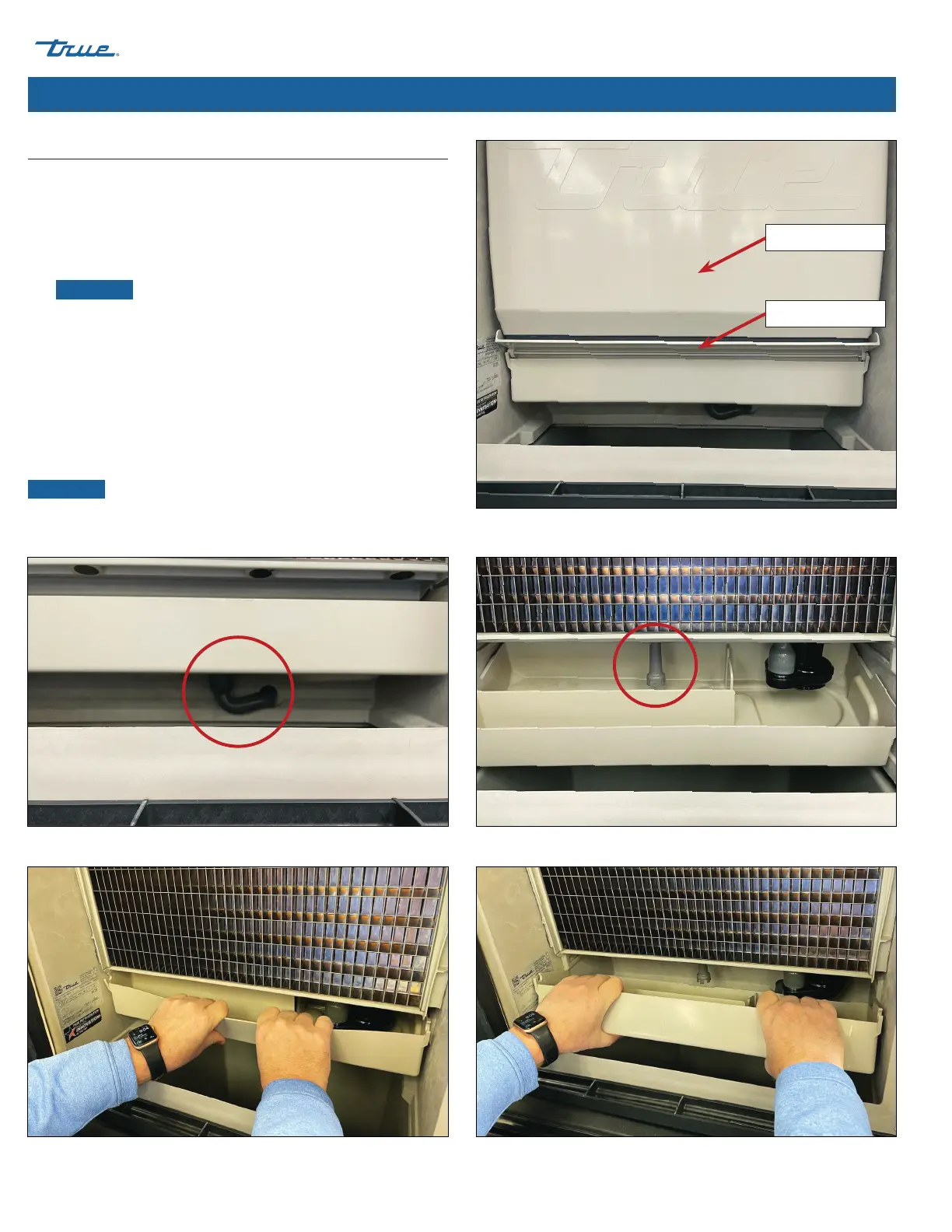

1. Open the front panel. See “Panel Removal” (pg. 49).
2. Remove the water curtain and the damper. See fig. 1.
3. Remove the drain fitting under the sump tank. See fig. 2.
4. Remove the sump tank.
NOTICE ›
DO NOT damage the water level sensor (see fig. 3)
when removing the sump tank.
a. Pull the sump tank’s center forward (see fig. 4). The tank will
flex away from the walls.
b. Push the sump tank’s center down.
c. Tilt the sump tank’s front upward and the back downward.
See fig. 5.
d. Pull the sump tank free from the appliance.
NOTICE ›
To reinstall the sump tank, follow the above procedure
in reverse. Always remember to reinstall the drain fitting under the
sump tank. See fig. 2.
Fig. 1. Water curtain and damper locations.
Fig. 2. Sump drain fitting locations.
Fig. 4. Pull the sump tank forward and push down.
Fig. 3. Water level sensor location
Fig. 5. Tilt the sump tank and then remove it.
Damper
Water Curtain
