Ice Machine Specifications (cont.)

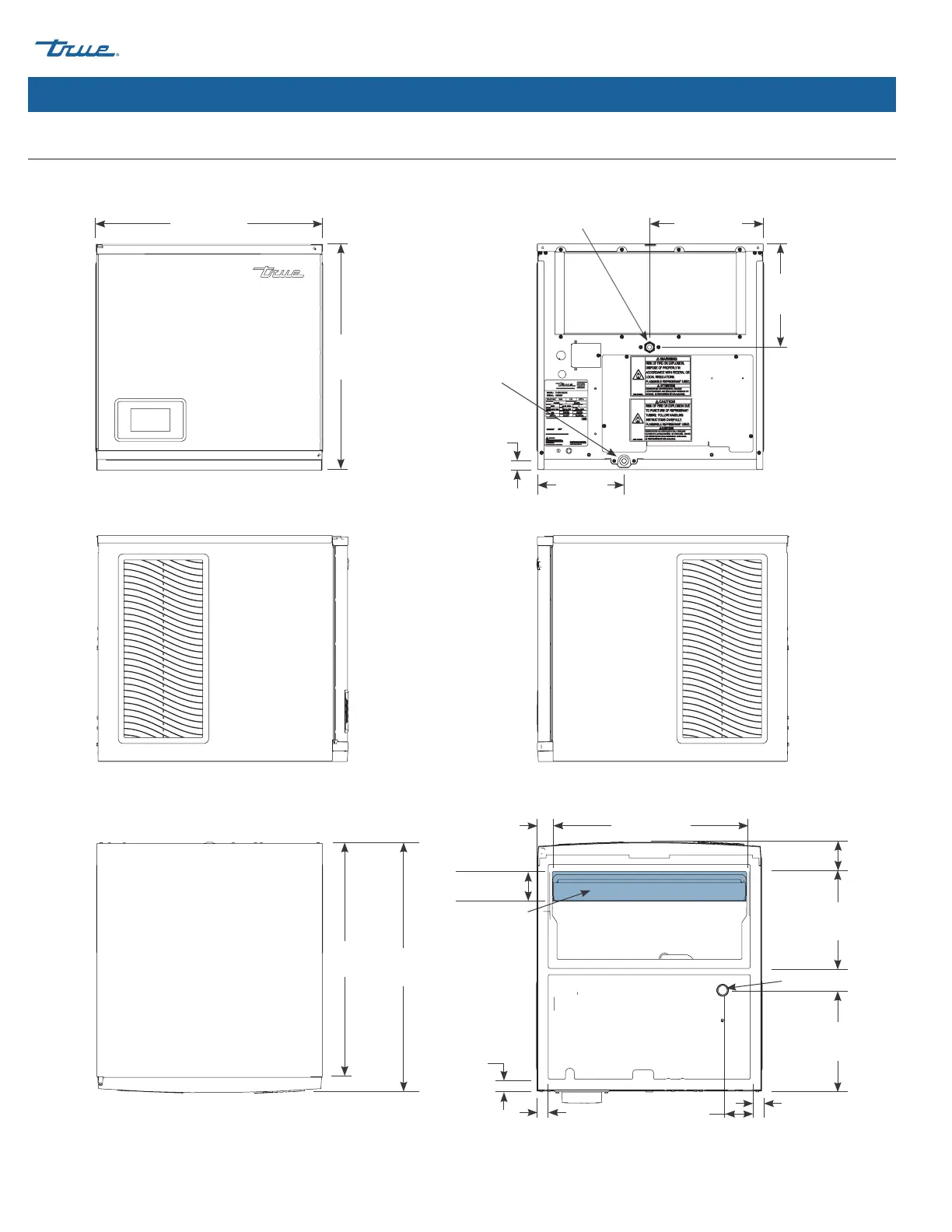

Plan Views & Dimensions
TCIM/TI-422/522
Front Rear
Left Right
Top Bottom
Dimensions may vary by ± 1/8" (3.2 mm)
22-7/32"
(565 mm)
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
22-3/16"
(563 mm)
10-5/32"
(258 mm)
23-1/16"
(586 mm)
24-19/32"
(625 mm)
8-11/16"
(220 mm)
2-7/8"
(73 mm)
19-7/32"
(488 mm)
9-27/32"
(250 mm)
3-13/16"
(97 mm)
1-3/32"
(28 mm)
1-3/32"
(28 mm)
1-1/32"
(26 mm)
1-15/32"
(37 mm)
Ice Level Sensor
Ice Drop Zone
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
2-15/16"
(74 mm)

True Ice Series Specifications

General

Brand	True
Model	Ice Series
Category	Commercial Food Equipment
Language	English
