True Ice Series - Ice Machine Water Circuit Diagram

TRUE ICE SERVICE MANUAL
TEC_TM_198 | REV. A | EN 03/26/2024 Page 85 of 96
truemfg.com
Diagrams (cont.)

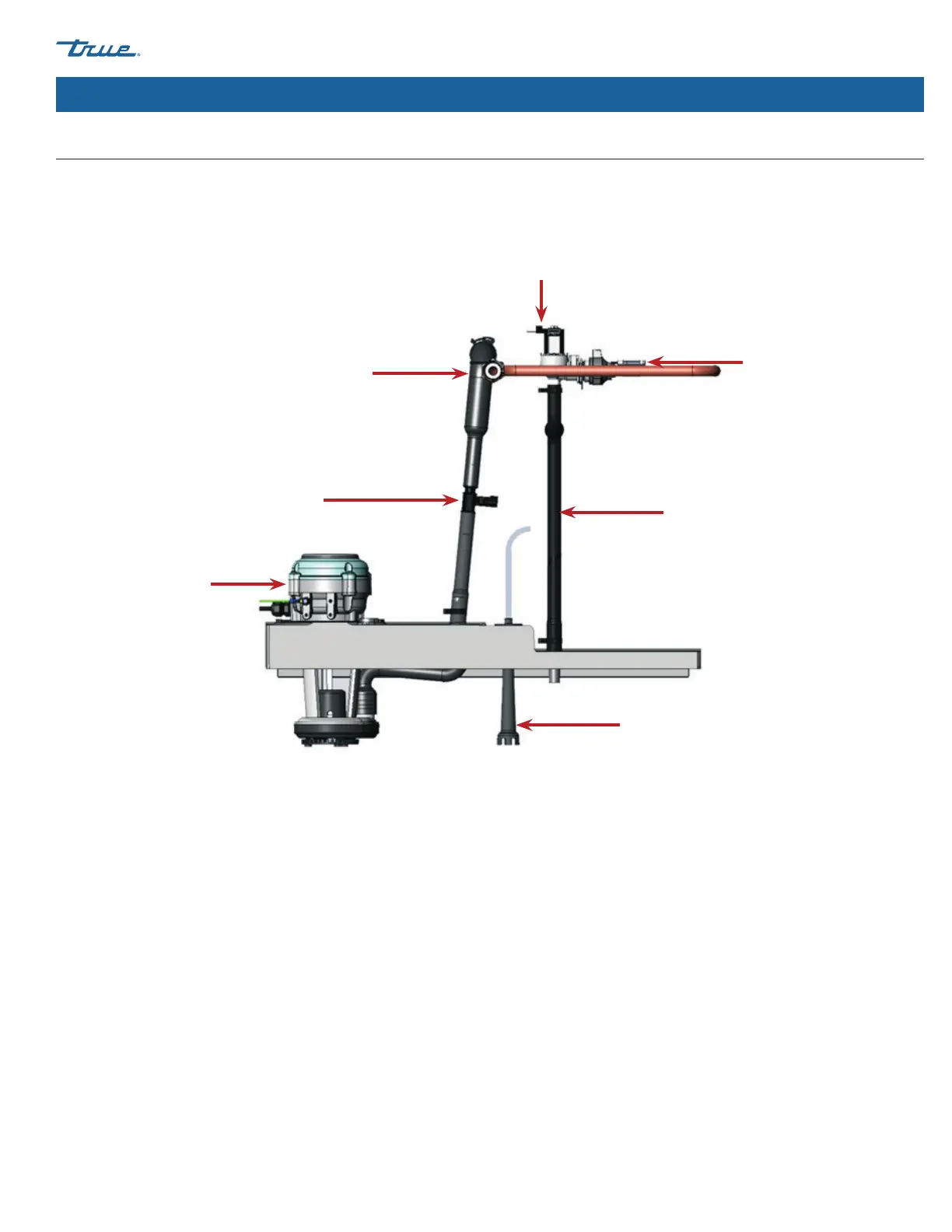

Water Circuit
Water Inlet Valve
T-4 Probe
(incoming water temp)
Fill Tube
Water Level Sensor
Circulation Pump
T-3 Probe
(sump water temp)
1/2" FPT Incoming Water
