TRUE ICE SERVICE MANUAL truemfg.com
TEC_TM_198 | REV. A | EN
P#857284
03/26/2024 Page 22 of 96

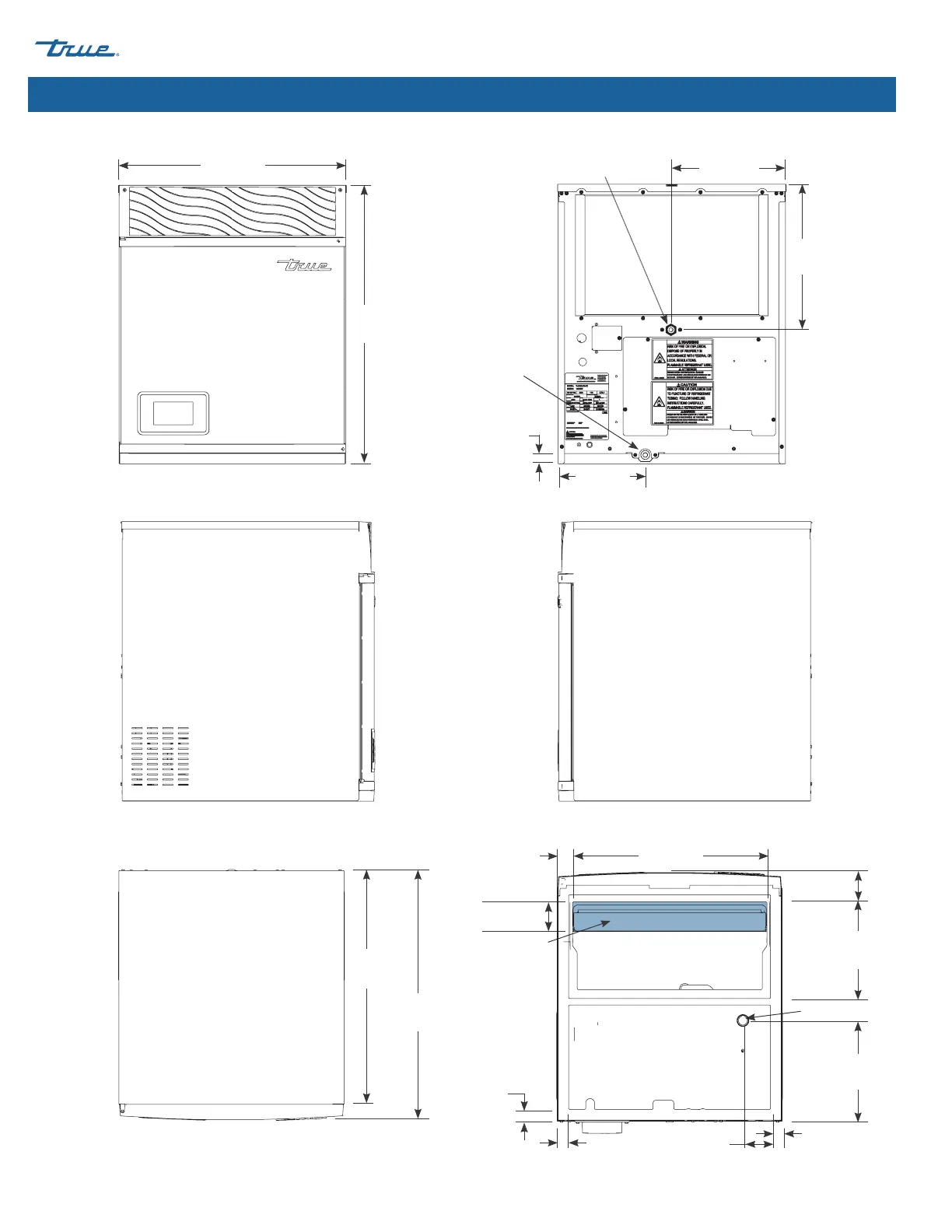

Ice Machine Specifications (cont.)
TCIM/TI-622
Front Rear
Left
Right
Top Bottom
Dimensions may vary by ± 1/8" (3.2 mm)
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
14-5/32"
(360 mm)
23-3/32"
(587 mm)
24-5/8"
(626 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
22-1/4"
(565 mm)
27-3/16"
(691 mm)
8-11/16"
(220 mm)
2-7/8"
(73 mm)
19-7/32"
(488 mm)
9-27/32"
(250 mm)
3-13/16"
(97 mm)
1-3/32"
(28 mm)
1-3/32"
(28 mm)
1-1/32"
(26 mm)
1-15/32"
(37 mm)
Ice Level Sensor
Ice Drop Zone
2-15/16"
(74 mm)
Plan View
TI-422/522
