Ice Machine Adjustments (cont.)
Adjust Ice Level Sensor (Time of Flight)/Bin Level (Cont.)
Custom Setup
Press the values to open the number pad. Enter the desired setting
and press OK.
• Full Bin Distance (FBD) is the distance in centimeters between
the sensor and the ice when the machine enters the FULL
BIN state with the damper held down. See fig. 1.
• Empty Bin Distance (EBD) is the distance in centimeters
between the sensor and the bottom of the ice storage unit.
See fig. 1.
NOTICE ›
True recommends only adjusting EBD.

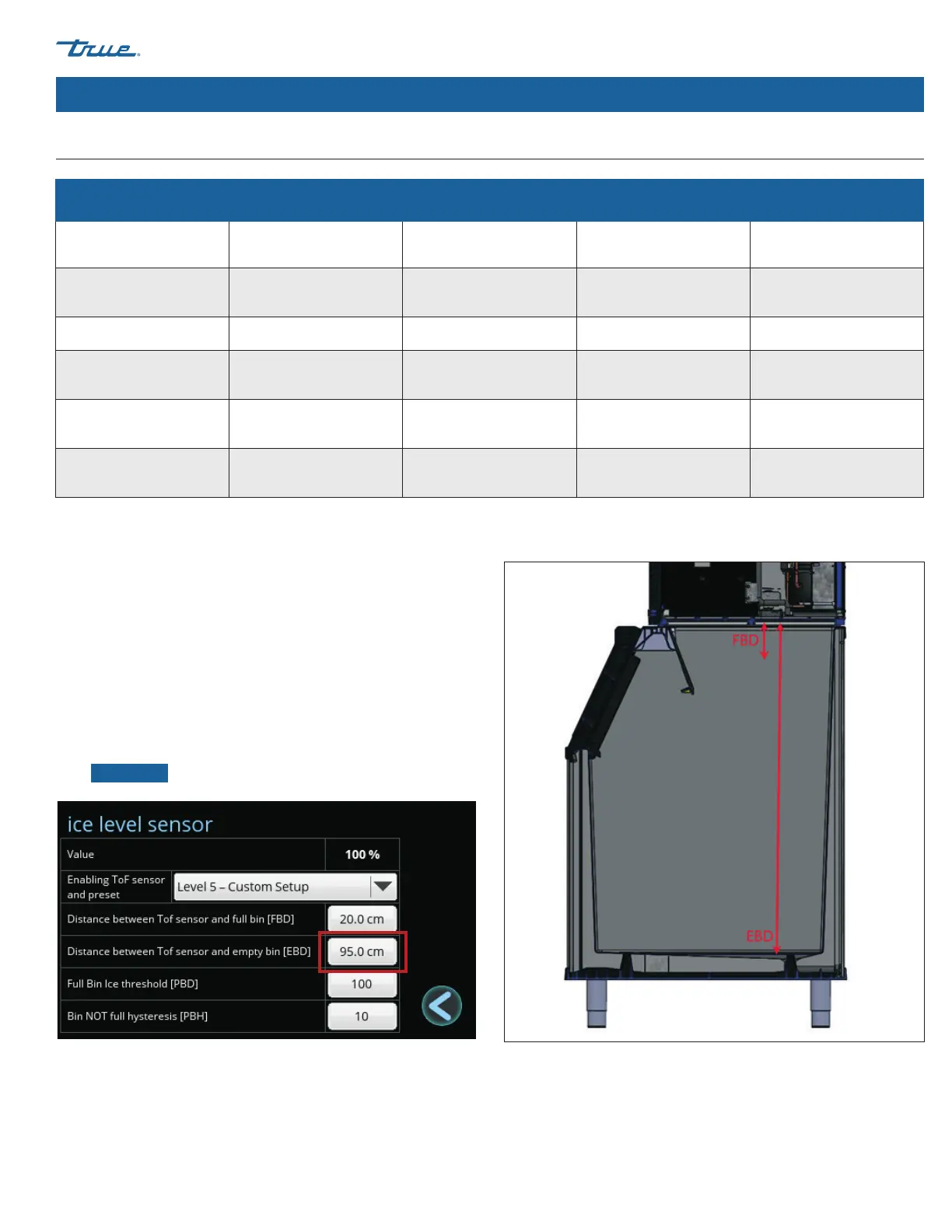

Fig. 1. FBD vs. EBD.
Ice level sensor presets
Full Bin Distance (FBD) Empty Bin Distance (EBD) Full Bin Ice Threshold
(PBD)
PBH*
Level 1 - Ice Storage Bin
(Tall)
15 cm 120 cm 100 10
Level 2 - Ice Dispenser 20 cm 60 cm 90 10
Level 3 - Freestyle
Dispensers
25 cm 75 cm 85 10
Level 4 - Ice Storage Bin
(Short)
30 cm 85 cm 100 10
Level 5 - Custom Setup
(default settings)
20 cm 95 cm 100 10
*Hysteresis; a percentage of how much above or below the set point before an activation. Default value is 10%.
To Next Page
