TSC Alpha-30L Series User Manual

- 17 -

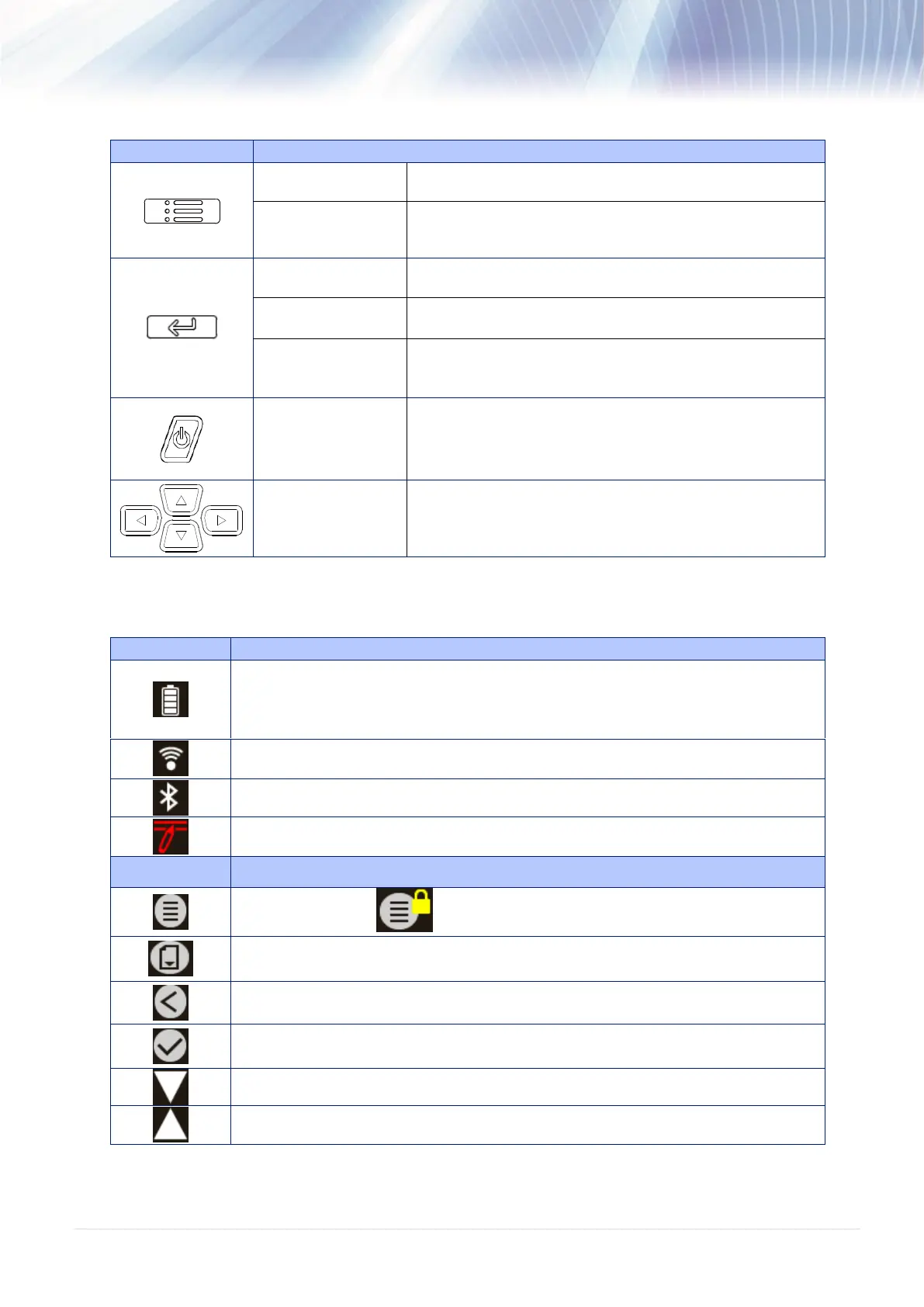

2.3.3 Keys
Keys
Function
Menu key
(Ready status)
Enter the LCD menu list.
Left soft key
(Menu status)
The label on the left footer of the UI will explain the
function for left soft key. Check the label on the footer of
the UI screen. The meaning of the select keys will vary.
Feed key
(Ready status)
Feed one label.
Pause key
(Printing status)
Pause the print job.
Right soft key
(Menu status)
The label on the right footer of the UI will explain the
function for right soft key. Check the label on the footer of
the UI screen. The meaning of the select keys will vary.
Power-on key
Press and hold for 2-3 seconds to turn on the printer.
Press and hold for 2-3 seconds to turn off the printer.
Navigational keys
Used to select items, menu selection, and navigation in
the UI.
2.3.4 LCD control panel icon indication
Icons
Indication
1/4 charging level: 0~25%
2/4 charging level: 25~50%
3/4 charging level: 50~75%
4/4 charging level: 75~100%
Wi-Fi device is ready
Bluetooth device is ready
Print head cleaning notice
Button
Indication
Enter the menu list ( the Menu is locked and a password is required.)
Feed button (advance one label)
Back button
Enter cursor (be marked in green) located option
Scroll down button
Scroll up button
