1.7 Various Sensor

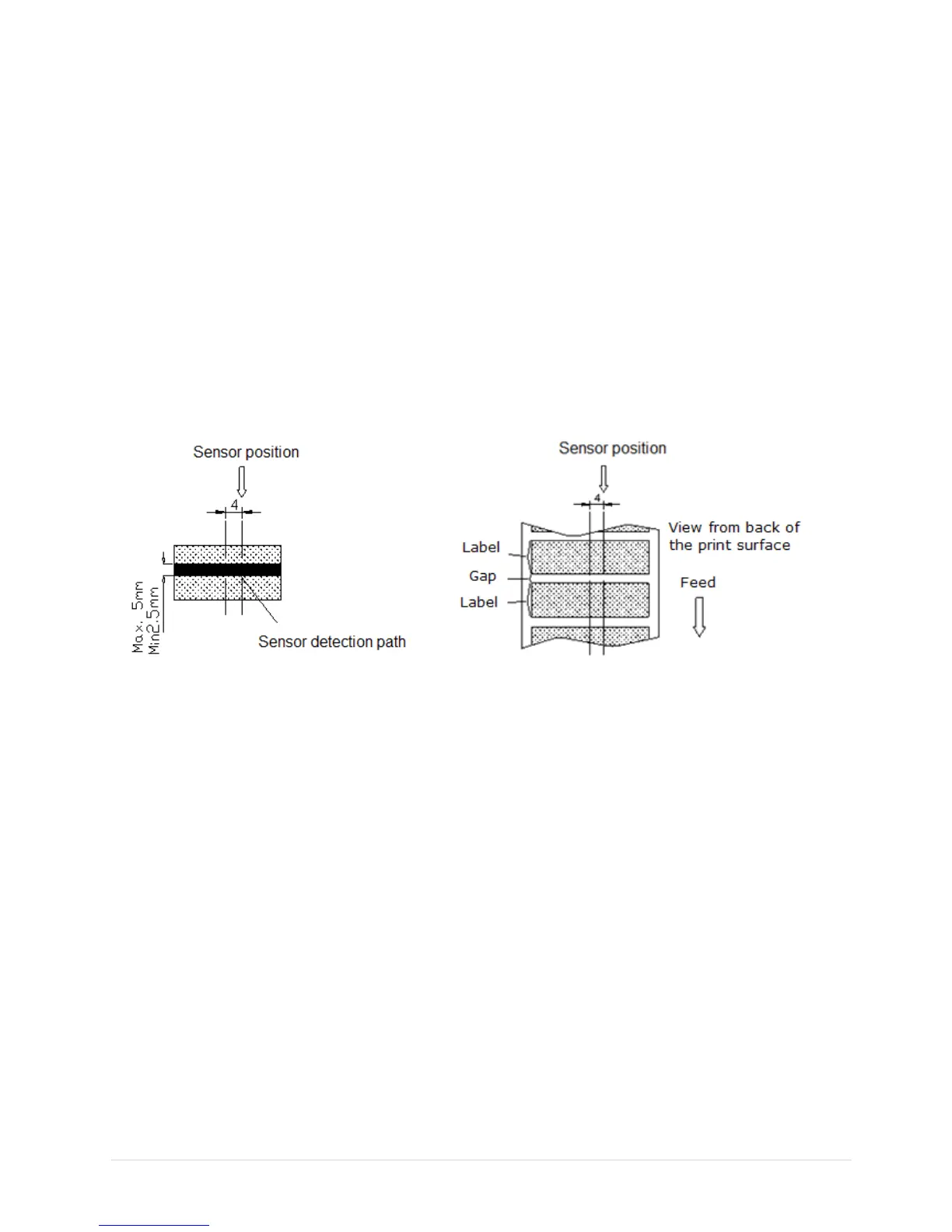

Gap Sensor
The gap sensor detects a label gap to locate the top of form of the next label. The sensor is
mounted 4 mm off the center line of the main mechanism.
.
In case of Label
Black Mark Sensor
The black mark sensor locates the position of label by emitting infrared rays onto the black
mark at the back of the ticket. The sensor is mounted 5.75 mm off the center line of the
mechanism.
In case of Ticket
The default sensor position is (1) as shown on the figure below. To change to the (2)
position, the customer should notify the manufacturer in advance. There can be only one
position for the sensor.

TSC TTP-244 Pro Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
Processor	32-bit RISC CPU
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0
Label Width	1 inch to 4.49 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External universal switching power supply
Operating Temperature	5 ~ 40°C (41 ~ 104°F)
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
