TSC TTP-244 Pro Series - Loading the Ribbon

- 17 -
3.3 Loading the Ribbon

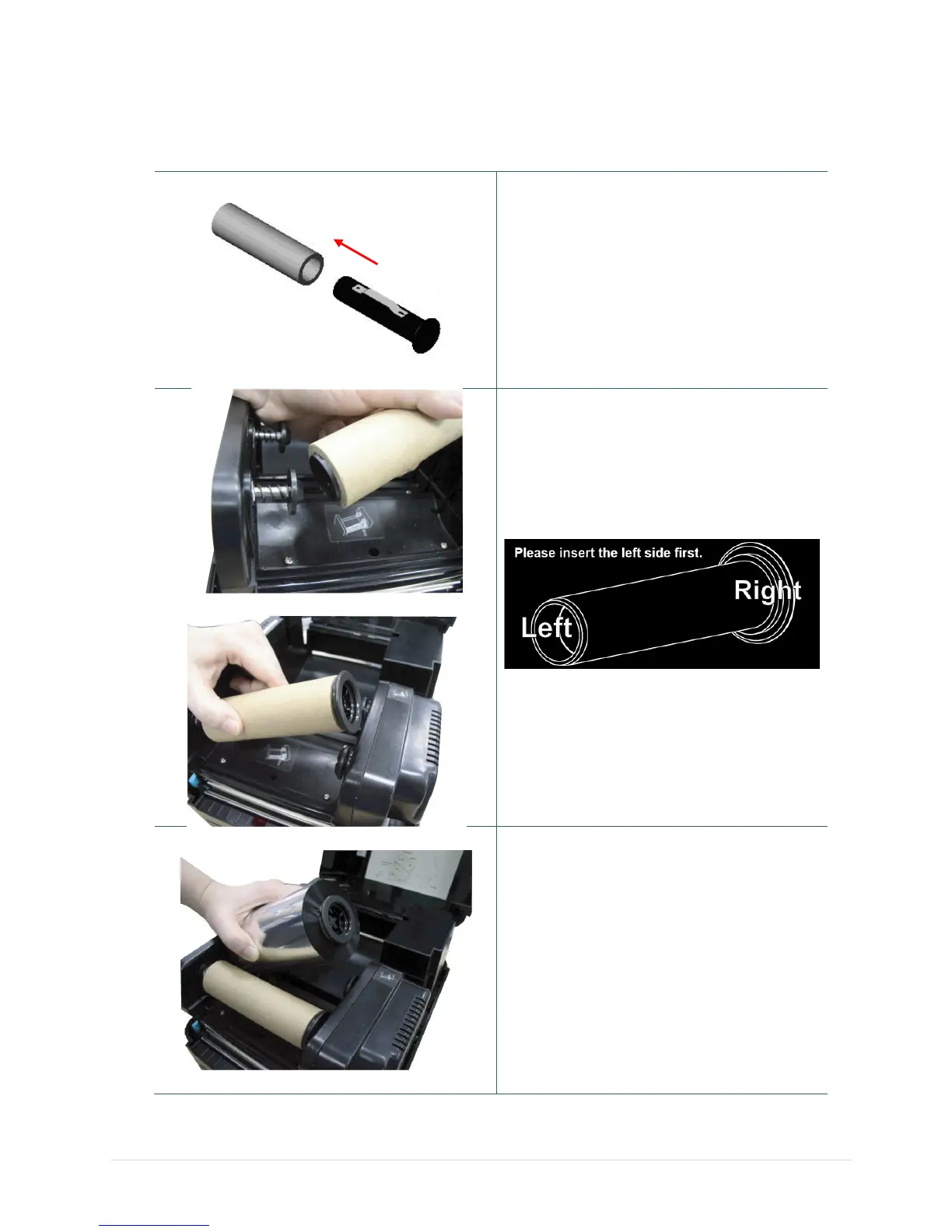

1. Place an empty paper core on the
ribbon rewind spindle.
2. Insert the left side first. Mount the ribbon
rewind paper core on the front hubs.
3. Please be noted that the bigger hub
side with 4 ribs must be installed toward
the right side of ribbon mechanism.
4. Install a ribbon on the ribbon supply
spindle. Mount the ribbon supply spindle
on the rear hubs.
1
2
