 BLINE
Description

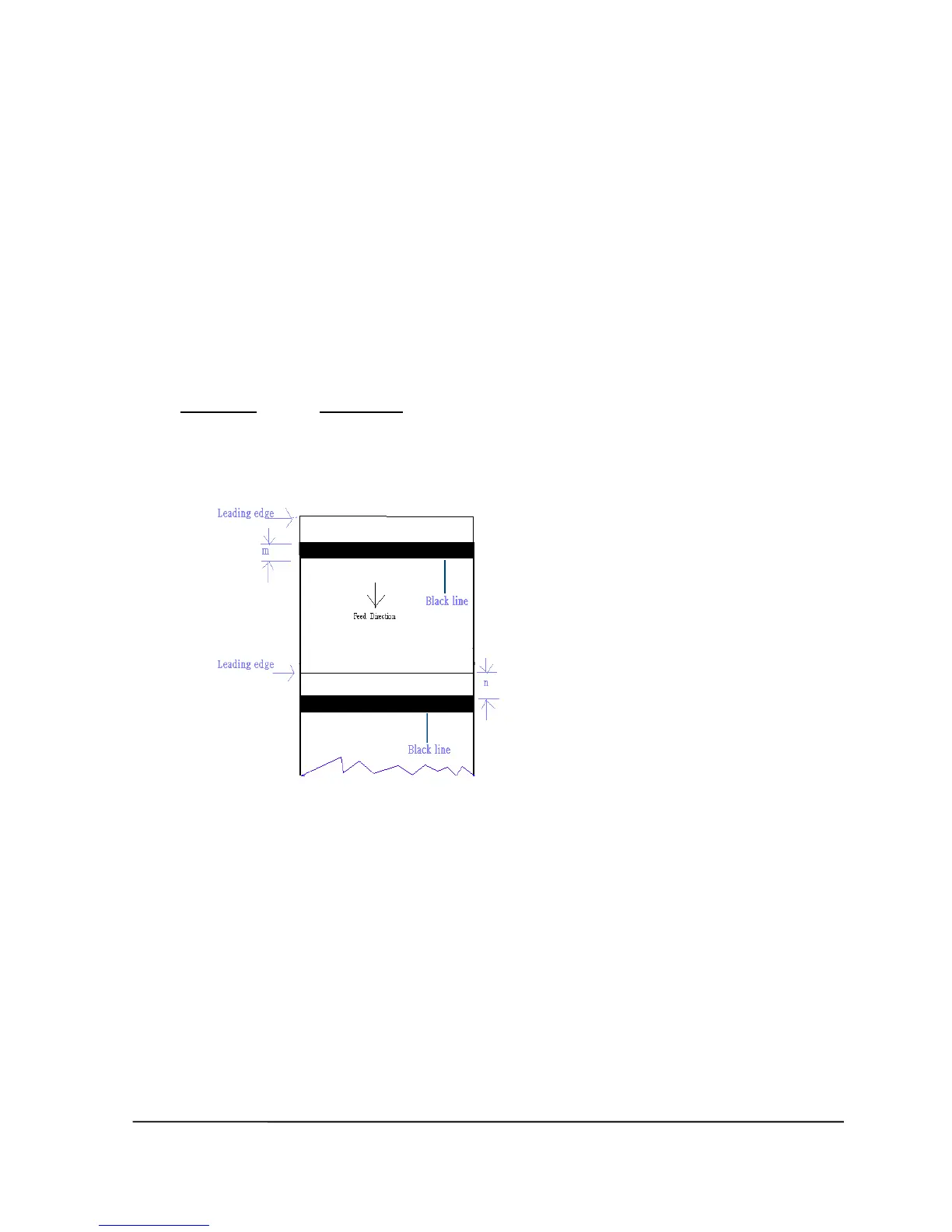

This command sets the height of the black line and the user-defined extra label feeding
length each form feed takes.
Syntax
English system (inch)
BLINE m,n
Metric system (mm)
BLINE m mm,n mm
Parameter Description
m The height of black line either in inch or mm.
0 ≤ m ≤ 1 (inch), 0 ≤ m ≤ 25.4 (mm)
n The extra label feeding length. 0 ≤ n ≤ label length
0,0 Continuous label.
Note: For metric system, there must be a space between parameter and “mm”. When
the sensor type is changed from “GAP” to “Black Mark”, please send the
“BLINE” command to the printer first.
Ex : In DOS mode,
C :\>copy con lpt1 <Enter>
BLINE 2 mm,0 <Enter>
<Ctrl>+<Z> <Enter>
Example
English system (inch)
BLINE 0.20,0.50
Metric system (mm)
BLINE 5.08 mm,12.7 mm

TSC TTP-244CE series Specifications

General

Resolution	203 dpi
Processor	32-bit RISC CPU
Print Method	Thermal Transfer / Direct Thermal
Max Print Speed	4 inches per second
Memory	8 MB SDRAM, 4 MB Flash
Communication Interfaces	USB, Serial (RS-232)
Media Handling	Continuous, Fan-Fold
Media Type	Continuous, Die-cut, Black Mark, Fan-fold
Media Width	1 inch to 4.4 inches
Media Roll Diameter	127 mm (5 inches)
Ribbon Length	300 m
Ribbon Core	25.4 mm (1 inch)
Power	100-240 VAC, 50/60 Hz
Weight	2.5 kg
Max Print Length	2, 286 mm (90")
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D) 9.13" (W) x 6.14" (H) x 11.34" (D)
