TSC TTP-244CE series User Manual

TSC AUTO ID Technology Co., Ltd. 42 Copyright 2009 All Rights Reserved.
 BOX
Description
This command draws rectangles on the label.
Syntax
BOX X_start, Y_start, X_end, Y_end, line thickness
Parameter Description
X_start Specify x-coordinate of upper left corner (in dots)
Y_start Specify y-coordinate of upper left corner (in dots)
X_end Specify x-coordinate of lower right corner (in dots)
Y_end Specify y-coordinate of lower right corner (in dots)
line thickness Line thickness (in dots)
Note: 200 DPI: 1 mm = 8 dots
300 DPI: 1 mm = 12 dots
Recommended max. thickness of box is 12mm at 4” width. Thickness of box larger
than 12 mm may damage the power supply and affect the print quality.
Max. print ratio is different for each printer model. Desktop and industrial printer
print ratio is limited to 20% and 30% respectively.
Example
SIZE 4,2.5
GAP 0,0
SPEED 6
DENSITY 8
DIRECTION 0
CLS

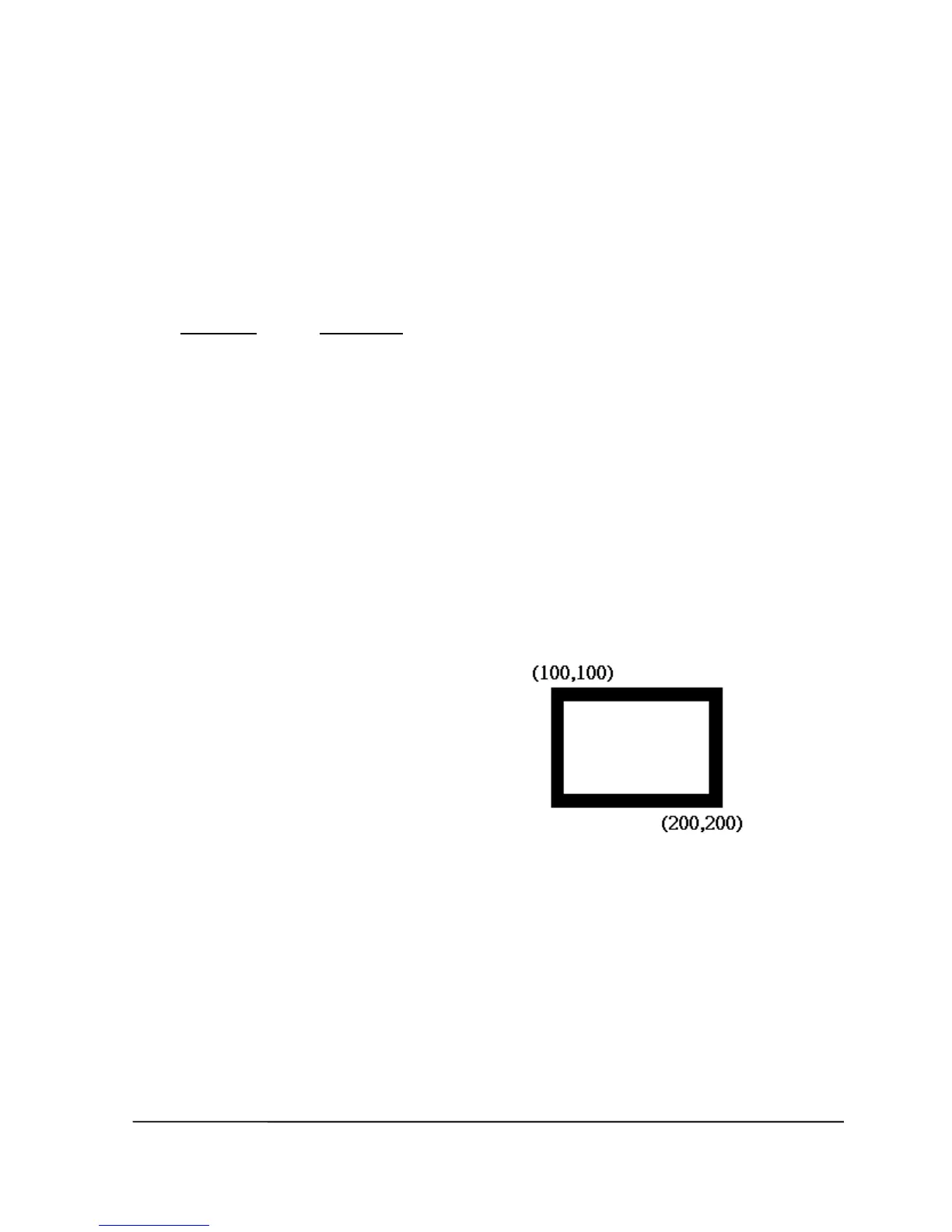

BOX 100,100,200,200,5
PRINT 1,1
See Also
BAR

TSC TTP-244CE series Specifications

General

Resolution	203 dpi
Processor	32-bit RISC CPU
Print Method	Thermal Transfer / Direct Thermal
Max Print Speed	4 inches per second
Memory	8 MB SDRAM, 4 MB Flash
Communication Interfaces	USB, Serial (RS-232)
Media Handling	Continuous, Fan-Fold
Media Type	Continuous, Die-cut, Black Mark, Fan-fold
Media Width	1 inch to 4.4 inches
Media Roll Diameter	127 mm (5 inches)
Ribbon Length	300 m
Ribbon Core	25.4 mm (1 inch)
Power	100-240 VAC, 50/60 Hz
Weight	2.5 kg
Max Print Length	2, 286 mm (90")
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D) 9.13" (W) x 6.14" (H) x 11.34" (D)
