 REFERENCE
Description

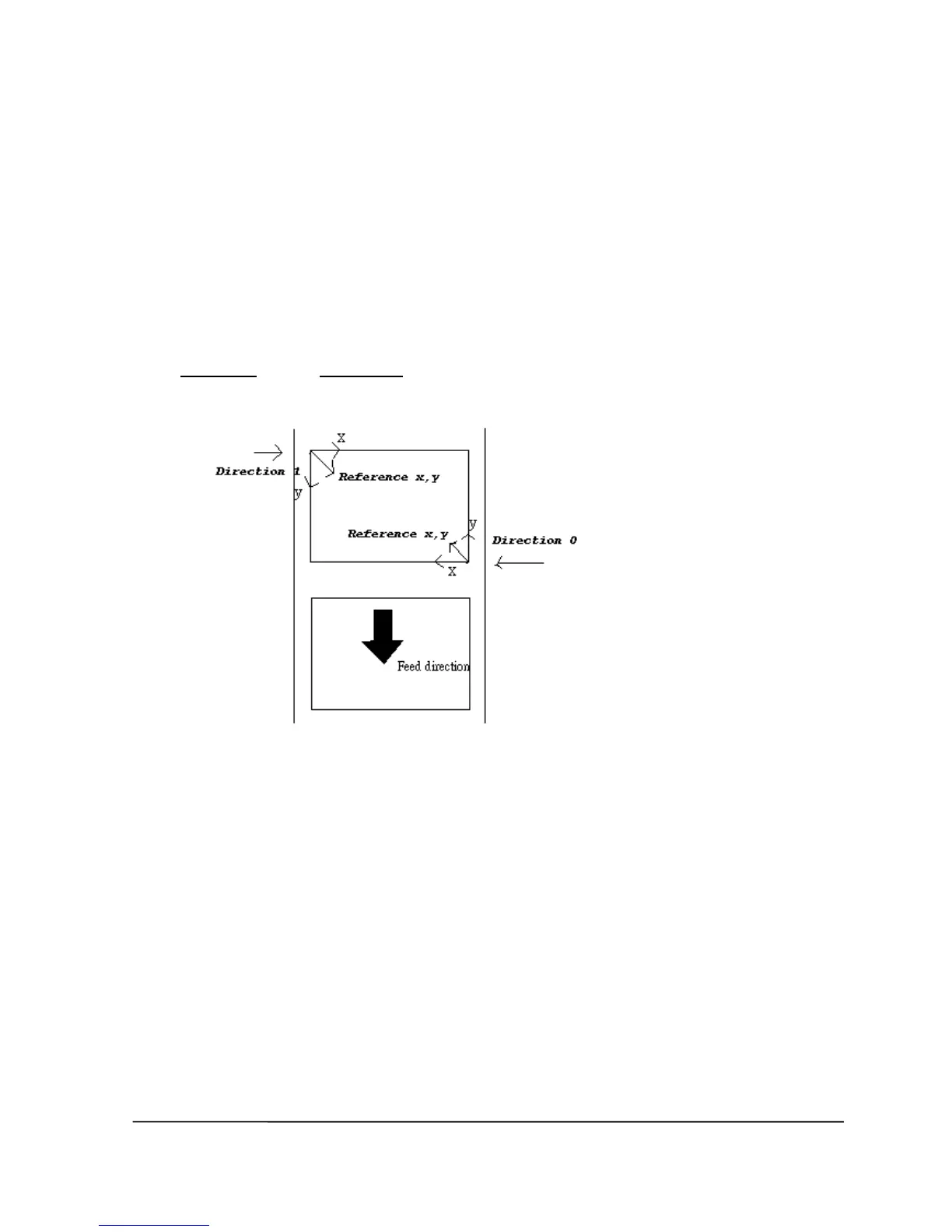

This command defines the reference point of the label. The reference (origin) point varies
with the print direction, as shown:
Syntax
REFERENCE x, y
Parameter Description
x Horizontal coordinate (in dots)
y Vertical coordinate (in dots)
Note: 200 DPI: 1 mm = 8 dots
300 DPI: 1 mm = 12 dots
Example
REFERENCE 10,10
See Also
DIRECTION

TSC TTP-244CE series Specifications

General

Resolution	203 dpi
Processor	32-bit RISC CPU
Print Method	Thermal Transfer / Direct Thermal
Max Print Speed	4 inches per second
Memory	8 MB SDRAM, 4 MB Flash
Communication Interfaces	USB, Serial (RS-232)
Media Handling	Continuous, Fan-Fold
Media Type	Continuous, Die-cut, Black Mark, Fan-fold
Media Width	1 inch to 4.4 inches
Media Roll Diameter	127 mm (5 inches)
Ribbon Length	300 m
Ribbon Core	25.4 mm (1 inch)
Power	100-240 VAC, 50/60 Hz
Weight	2.5 kg
Max Print Length	2, 286 mm (90")
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D) 9.13" (W) x 6.14" (H) x 11.34" (D)
