TurboChef i3 Service Manual

SPECIFICATIONS AND INSTALLATION
5
59.7” (1516 mm)
(handle)
32.5” (826 mm)
(handle)
35.5” (706 mm)
28.6” (726 mm)
4.5”
(114 mm)
30.0” (762 mm)
31.5” (800 mm)
32.5” (826 mm)
44.6” (1133 mm)
17.3”
(439 mm)
15.8”
(401 mm)
20.5” (521 mm)
26.5” (673 mm)
21.25” (540 mm)

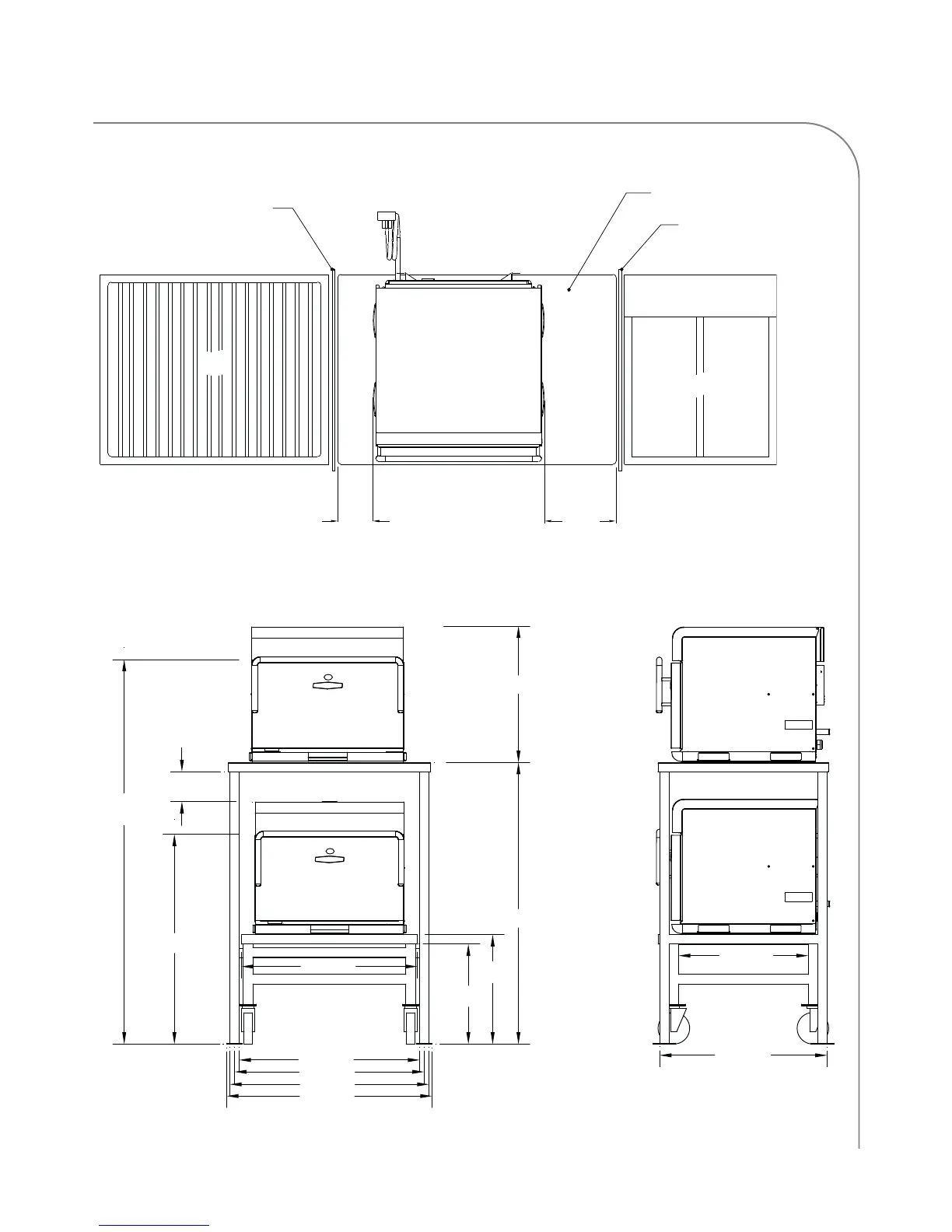

Figure 5: Oven Cart and Stacking Stand Dimensions
Grill
Partition
21.25” (540 mm)
Above Counter Top
TurboChef
i3 Oven
6”
(152 mm)
Minimum
12”
(305 mm)
Minimum
Deep Fryer
Counter Top / Table
Partition
21.25” (540 mm)
Above Counter Top
Figure 4: Installation Near Open Heat Source

TurboChef i3 Specifications

General

Model	i3
Cooking Chamber	Stainless Steel
Cavity Dimensions	14.5 x 16 x 10 inches
Power Requirements	208-240V, 30A
Control Type	Touchscreen
