APPENDIX - REPLACING OVEN COMPONENTS
A-5

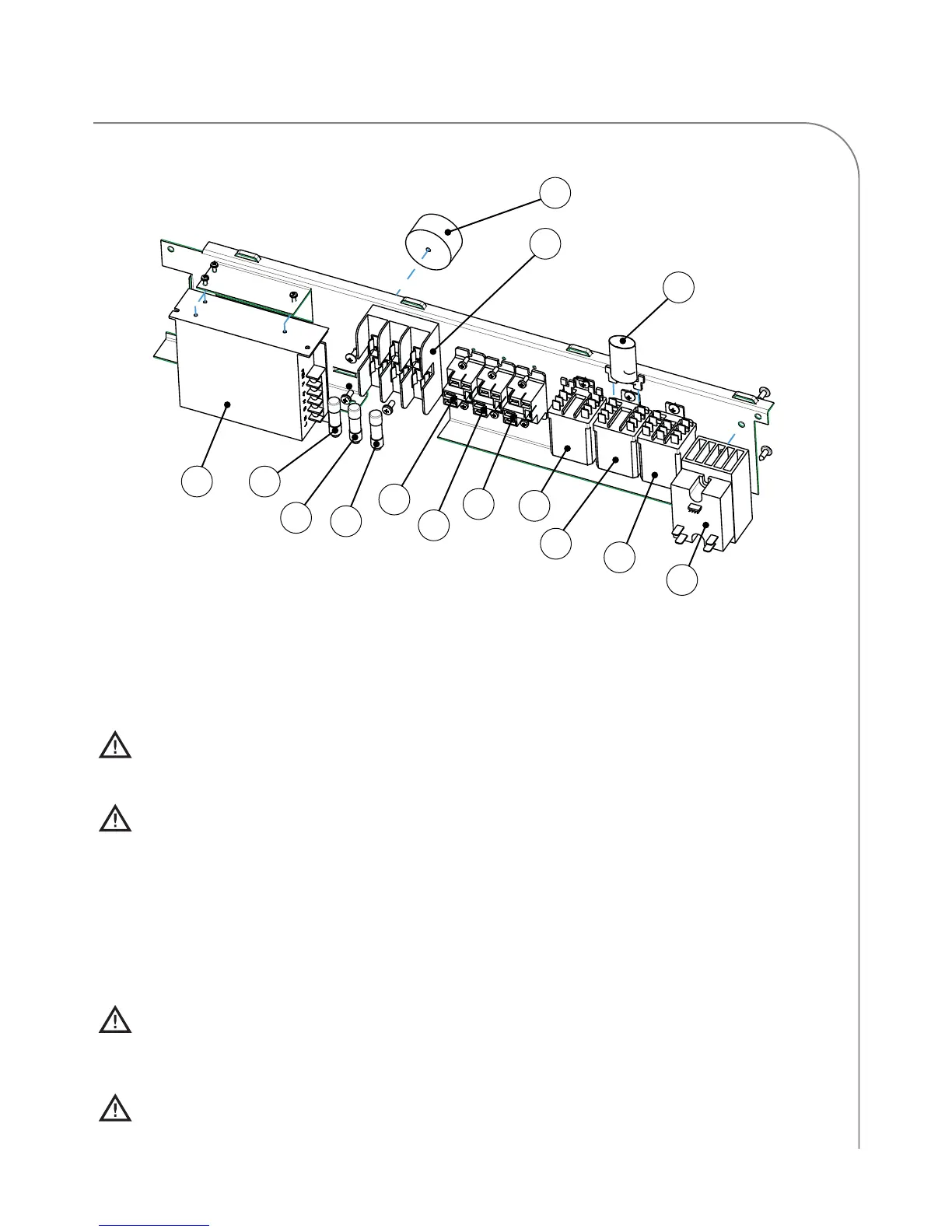

Figure A-3: Opening Top Cover Required
1
4
3
2
5
14
6
10
8
13
12
11
7
Removing Top Cover Required (Figures A-4, A-5, A-6)
DANGER: Before replacing any microwave circuit component, ensure the oven is removed from
power source. Replacing a component while the oven is in operation can result in serious injury or
death.
CAUTION: Before removing/installing any component, make sure it is disconnected from the
wire harness (where applicable).
Hardware listed is required for installing component to oven.
To remove the top cover:
1. Open the top cover (see page A-4 for details).
2. Remove the hinge screws located near the back of each side of the top cover.
3. Detach the support braces from the oven frame. (They should remain attached to the top panel.)
CAUTION: When detaching the support braces, be sure to support the top cover to prevent
it from collapsing onto the components in the electrical compartment.
4. Remove the top panel and place it where it will not be damaged.
CAUTION: The top cover has critical components attached. Handle it carefully.
