TurboChef Sota

APPENDIX  REPLACING OVEN COMPONENTS
A7
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number(s)
1
Bracket, Mounting, Mag Fan:
- NGO/Sota x2
- Single Magnetron Sota x1
i1-9478 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2 each)
2 EMI Filter
100543 (1 Ph)
100547 (3 Ph)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
3 Fuses, F1 and F2, 12-amp 100592 None None
4 Fuse, F3, 20-amp 100599 None None
5 Fuse Block 103566 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
6 Motor Controller CON-7039 Screw, #8 x 3/8, Ph Mod Truss Hd, Cres 101682 (qty 4)
7 Power Supply Kit NGC-3069 Included with kit Included with kit
8 Relay, K1, Filament 101274 Screw, #6 x 1/2, PPHD, Int Sems, SS 101687 (qty 2)
9 Relay, K2, Mag Fan 101274 Screw, #6 x 1/2, PPHD, Int Sems, SS 101687 (qty 2)
10 Relay, K3, Stirrer 101274 Screw, #6 x 1/2, PPHD, Int Sems, SS 101687 (qty 2)
11 Relay, K6, Voltage 101272 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
12 Relay, K7, Monitor 101273 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
13 Relay, K8, Anode 101273 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
14 Relay, Solid State, K4/K5, Heaters 101286 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
15 Thermostat, Cooling Fans, 120°F 102086 Screw, #6 x 3/8, PPHD, Drill Point, Zinc 101684 (qty 2)
16 Voltage Sensor 100783 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 1)
17
Waveguide Kit:
- NGO/Sota x2
- Single Magnetron Sota x1
i1-3202 Included Included
18
Waveguide Cover:
- NGO/Sota x2
- Single Magnetron Sota x1
i1-9462 None None
19
Waveguide Gasket:
- NGO/Sota x2
- Single Magnetron Sota x1
i1-9331 Nut, #10-32, Serr Hex Flange, Zinc 100913 (qty 9 each)
20
Waveguide Seal:
- NGO/Sota x2
- Single Magnetron Sota x1
i1-9486 None None

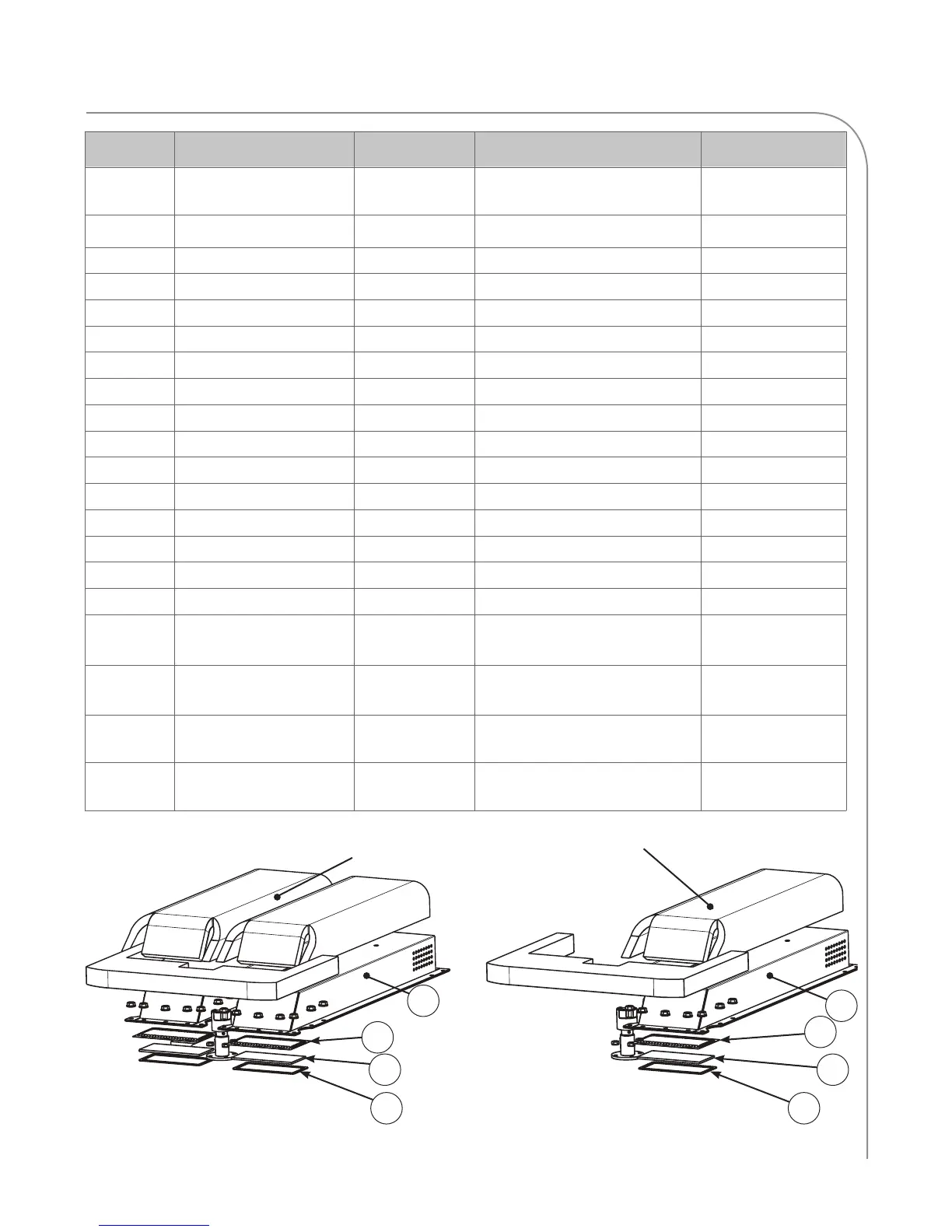

Figure A-11: Waveguide Detail Figure A-12: Waveguide Detail
Single Magnetron Sota
Ref: Waveguide Insulation
Ref: Waveguide Insulation
17
17
x2
19
19
x2
18 18
x2
20 20
x2
Figure A-10: Outer Shell Removed (Top View) and Stirrer Motor Detail
Single Magnetron Sota
