TurboChef Sota Service Manual

APPENDIX  REPLACING OVEN COMPONENTSA-4

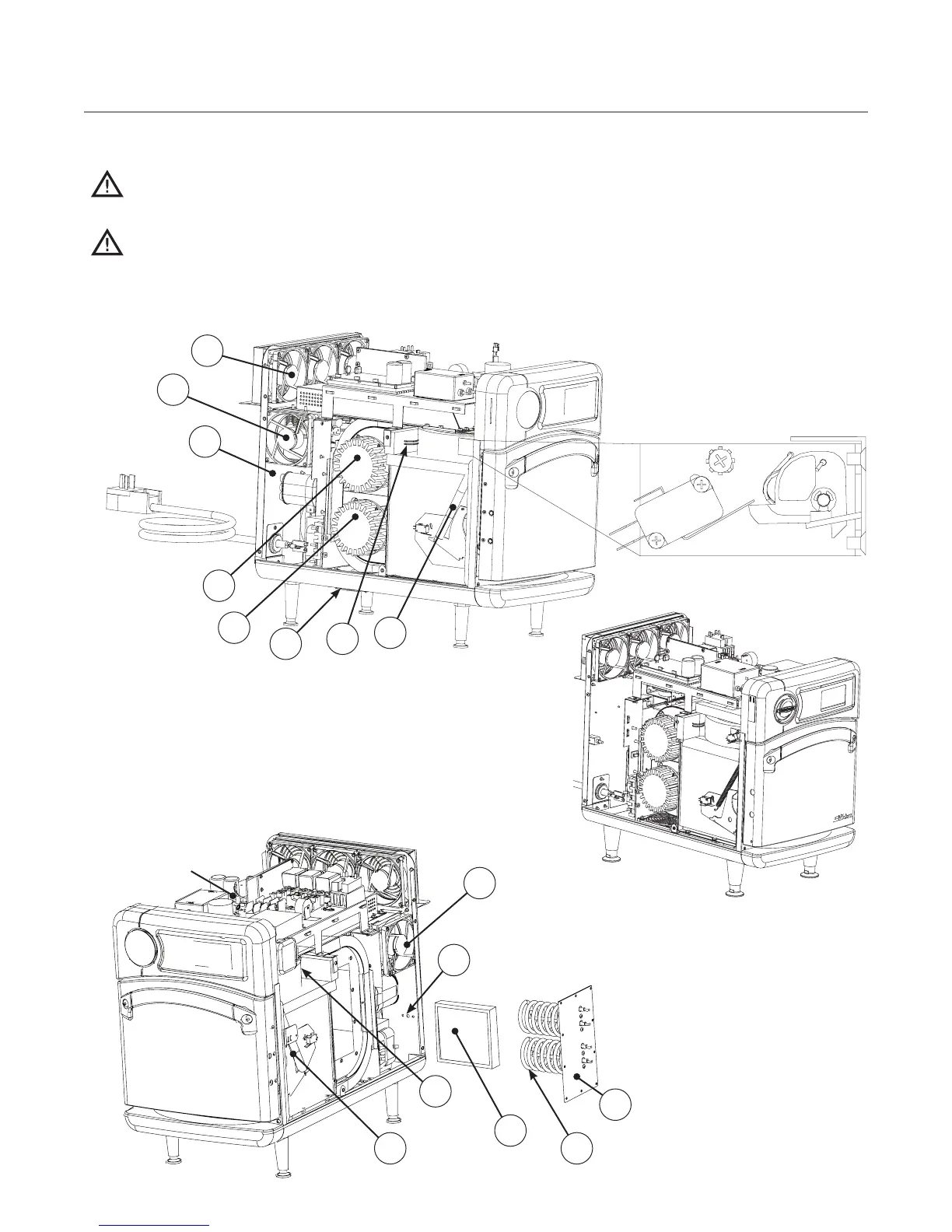

Figure A-4: Outer Shell Removed - Left Side
x3
8
1
2
See Figure A-10, page A-8 for
Primary switch detail
7
5
13
3
Ethernet cable
port location
Figure A-6: Outer Shell Removed - Right Side
14
4
10
x2
5
19
11
See Figs A-6 and A-7
Replacing Items - Removing Outer Shell Required (Figures A-4 through A-16)
DANGER: Before replacing any oven component, ensure the oven is removed from any power
source. Replacing a component while the oven is plugged in can result in serious injury or death
CAUTION: Be careful to not tear the insulation when servicing components. Always reinstall the
insulation properly before reinstalling the outer shell.
NOTE: Fasteners listed are required for installing component to oven.
15
15
Figure A-5: Outer Shell Removed - Left Side
Single Magnetron Sota
Location only;
part not shown

TurboChef Sota Specifications

General

Type	Rapid Cook Oven
Weight	95 lbs
Ventless Operation	Yes
Exterior Finish	Stainless Steel
Interior Finish	Stainless Steel
Plug	NEMA 6-30P
Frequency	60 Hz
Warranty	1 Year Parts and Labor
Power	208/240V
Cooking Technology	Convection, Microwave
Capacity	0.84 cubic feet
Cooking Modes	Convection, Microwave, Combination
Temperature Range	500°F
Control Type	Touch Control
Exterior Dimensions	24" W x 22" D x 16" H
