TurboChef Sota

A13
Figure
Reference #
Item Description Item Part Number Fastener Description
Fastener Part
Number(s)
17 Capacitor, High-Voltage
100216 (Japan 50 Hz)
ENC-3010-2 (Japan 60 Hz)
ENC-3010-1 (All others)
Screw, #6-32 x 3/8, Int Tooth, PPH, SS
Nut, #6-32 Keps, Ext Tooth, SS
102911
102961
18 Capacitor Clamp
104197 (Japan 60 Hz)
100134 (All others)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
19 Diode, High-Voltage 100481 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
20 Duct, Magnetron Cooling Fan, L* i1-9479 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
21 Jumper, Capacitor (Intl 50 Hz only) i5-9378 None None
22 Magnetron NGC-3015 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
23 Power Cord Contact factory None None
24 Terminal Block 102049 (1 Ph) Screw, #10-32 x 3/4 Lg, PPH Sems, Int Tooth 102937 (qty 2)
25 Thermostat, Magnetron, 270°F (x2) 104228 Screw, Sh Mtl, Drill Point, 6-32 x 3/8, PPHD, Zinc 101684 (qty 2)
26 Transformer, Filament
NGC-3061-1 (USA)
NGC-3061-2 (Intl)
NGC-3061-3 (Japan)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
27 Transformer, High-Voltage
NGC-3062-1 (USA)
NGC-3062-2 (Intl)
NGC-3062-3 (Japan)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
28
Wire Harness, Line Voltage
(not shown)
i1-9172 (1 Ph) None None
29
Wire Harness, Cooling Fans
(not shown)
i1-9174 None None
30
Wire Harness, Heaters
(not shown)
i1-9239 None None
31
Wire Harness, Transformers
(not shown)
i1-9173 None None
Replacing Items - Removing Outer
Shell and Back Cover Required,
Single Magnetron Sota (Figure A-19)
DANGER: Before replacing any oven
component, ensure the oven is removed
from any power source. Replacing a
component while the oven is plugged
in can result in serious injury or death.
CAUTION: Be careful to not tear the
insulation when servicing components.
Always reinstall the insulation properly
before reinstalling the outer shell or
back cover.
NOTE: Fasteners listed are required for install-
ing component to oven.

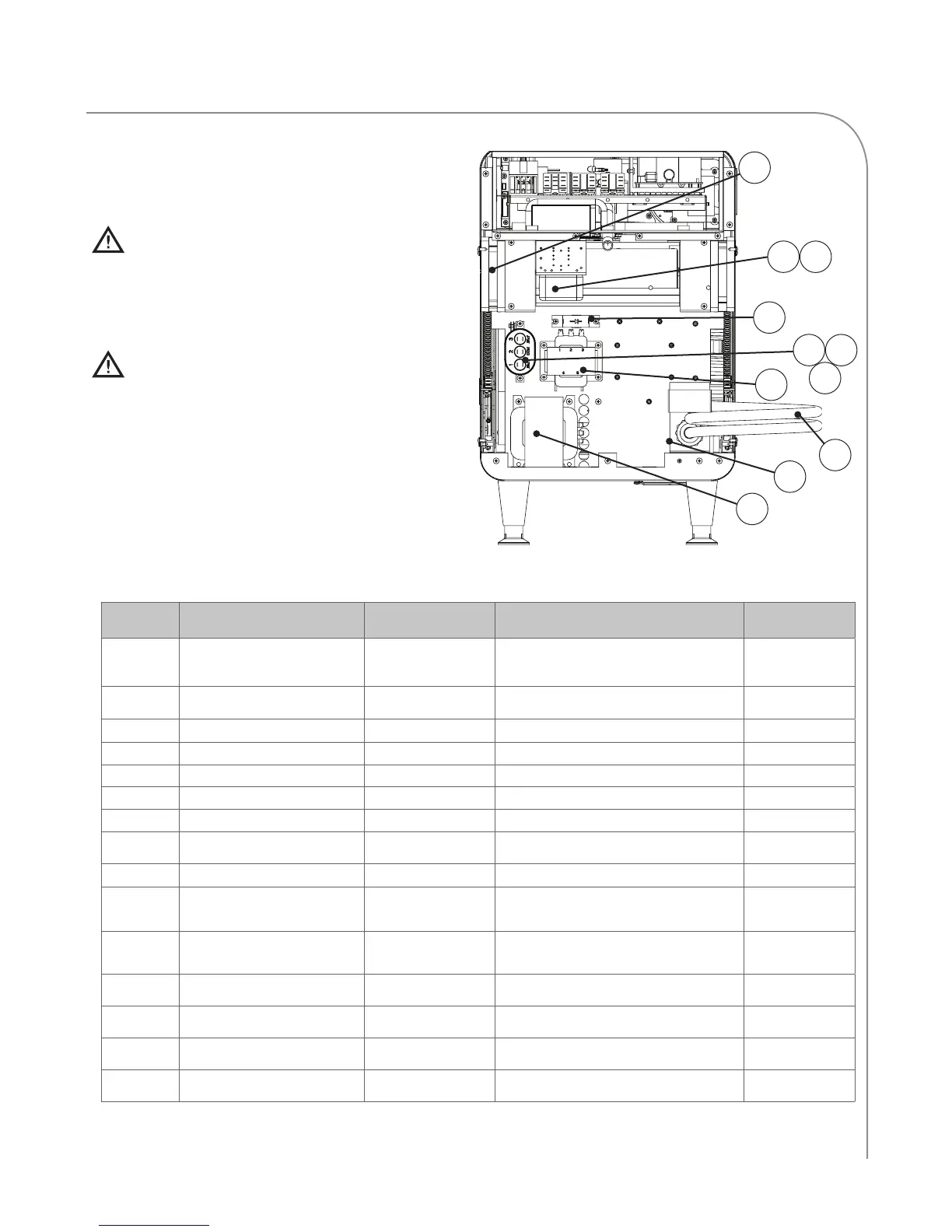

Figure A-19: Outer Shell and Back Cover Removed
Single Magnetron Sota
19
26
27
23
18
17
25
22
* NOTE: Left and right orientation based on looking at the back of the oven.
20
24
21
APPENDIX  REPLACING OVEN COMPONENTS
