In order to increase the space of the luggage compartment,
the rear seat can be folded down and every part of the seat can be
unfolded separately. Unfolding of the rear seat is performed as
follows:
– pull the loop 1 (Fig. 3.33) and set the pillow to the upright
position;
– remove headrest 2;
– pull lever 3 in the direction of movement of the motor vehicle,
release and fold the backrest as shown in the diagram, Fig. 3.33;
– to return the backrest to its initial position, raise the backrest
until the headrest lock is activated;
– to return the pillow to its initial position, turn it back to the
horizontal position (only for UAZ PATRIOT);
– the pillow should be xed in the following sequence: lift the
seatbelt locks and lower the pillow up to the stop (without ap-
ping), pull the pillow strap retainer, press the pillow, release the
pillow strap retainer, check the xation (only for UAZ PICKUP);
– mount the headrests.
Change the position of the rear seat with the rear doors open.

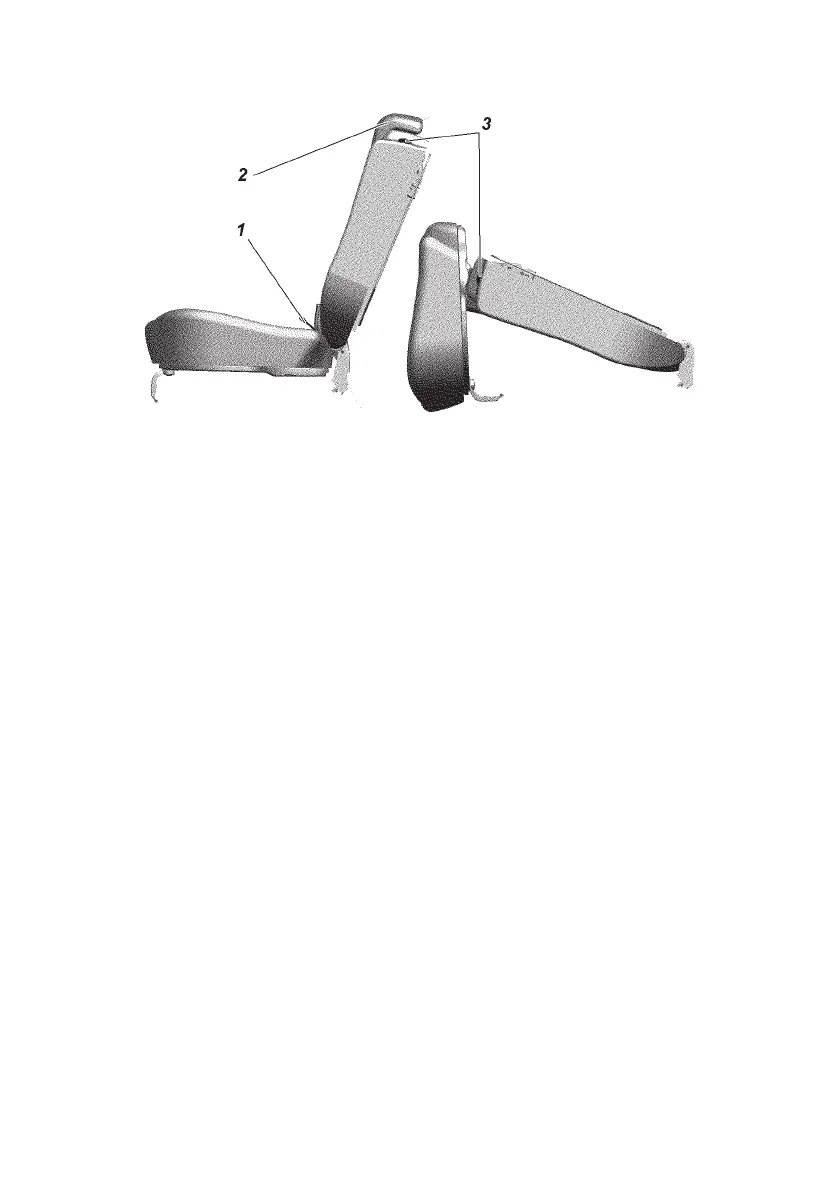

Fig. 3.33. Rear triple seat:
1 — releasing and raising loop of the rear seat cushion; 2 — seat
squab headrest 3 — rear seat squab release lever
