UAZ PICKUP - Page 106

106
Fig. 3.35. Height adjuster:
1 — belt guide support group; 2 — adjuster button

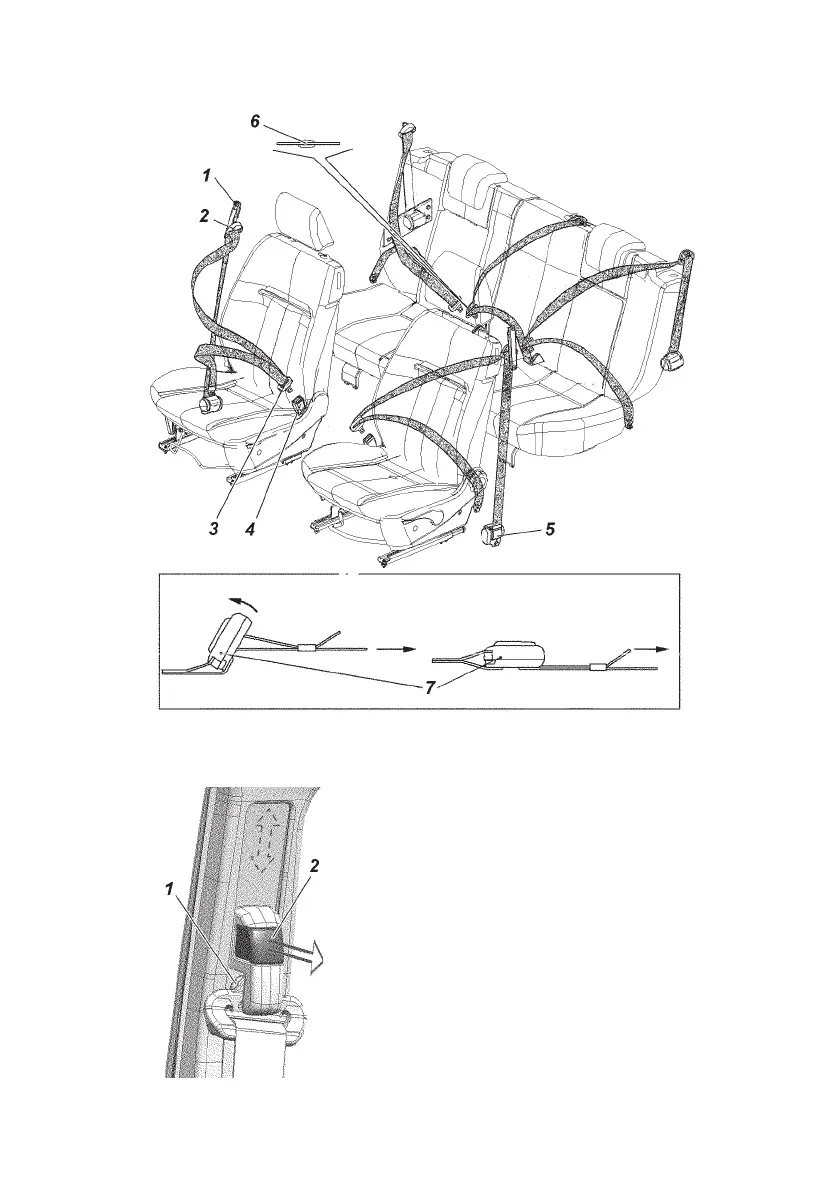

Fig. 3.34. Seatbelts:
1 — seatbelt height adjuster; 2 — seatbelt guide bracket; 3 — lock catch; 4 —
lock; 5 — inertia reel; 6 — clip; 7 — adjuster for static middle belt (UAZ Pickup)
Strap extension Strap shortening
pull pull
