To access the relay and fuse box, it is necessary to:
– disengage the two latches 2 (Fig. 9.30) located in the lower
part of the box cover from the back side of the box;
– unlock ve clips 3 located along the perimeter of the cover,
one by one, applying effort in a horizontal plane (in the opposite
direction to the movement of the car);
– remove the cover carefully without excessive effort.
The relay and fuse box under the hood is located on the left,
behind the battery (Fig. 9.31). The scheme of relays and fuses is
shown on the inner side of the box cap.
To access the relay and fuse box, remove its cap.
Before replacing a bad fuse, nd out the reason for its blowing
and eliminate it.
Do not use metallic objects while removing a relay or a fuse.
Do not use fuses not required by design (see Table 9.1).

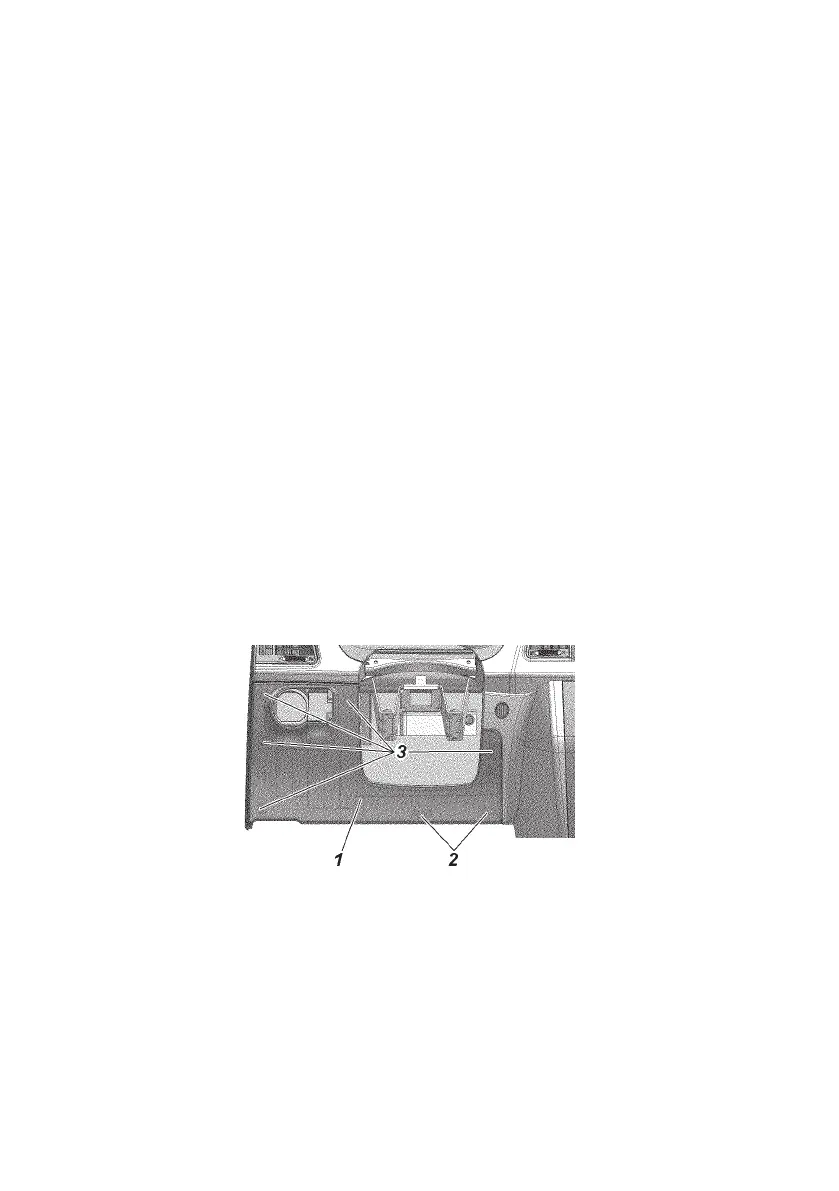

Fig. 9.30. Installation of Relay / Fuse Box cover:
1 — relay/fuse box cover; 2 — cover latches; 3 — cover clips.
