177

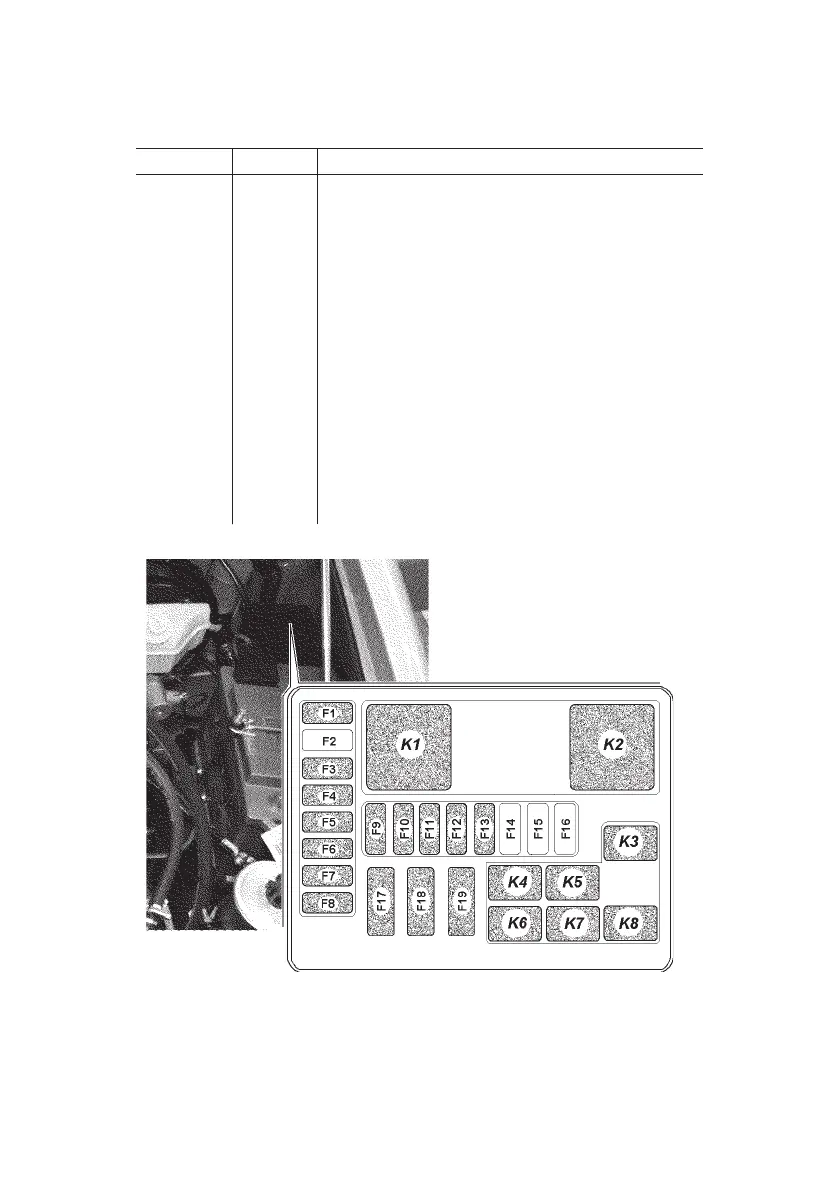

Fig. 9.31. Relay and fuse box under the hood (without cover):
K1 — starter motor relay; K2 — heater relay; K3 — heater relay; K4 — horn relay;
K5 — IMECS relay; K6 — electric fan relay; K7 — oil pump relay; K8 — electric
fan relay; F1–F10 — fuses (see the table).
Designation Current, A Protected chains
F5 5 Instrumentation
F6 20 Oil pump
F7 20 Starter motor
F8 30 Elecric fan 1
F9 10 Microprocessor-based Engine Control System
(IMECS)
F10 10 ABS (ESP)
F11 20 Heater
F12 5 Heater
F13 25 Heater
F14 – Not installed
F15 – Not installed
F16 – Not installed
F17 60 Mounting block
F18 40 ABS (ESP)
F19 60 Mounting block
End of Table 9.1
