182
Install halogen lamps wearing gloves, do not touch the lamp
bulb. If the bulb has fat stains, remove them with alcohol.
Side T/signals are located at UAZ Cargo on front fenders
sideways. To change T/signal lamps press catches 1 (Fig. 9.36)
and remove T/signals, then take out socket 2 with the lamp.
Replace T/signal lamps only when lockers are removed.
Side T/Signals are located at UAZ Patriot and UAZ Pickup
in rearview mirrors (Fig. 9.37). If the lamps are broken, they are
replaced with a new rearview mirror.

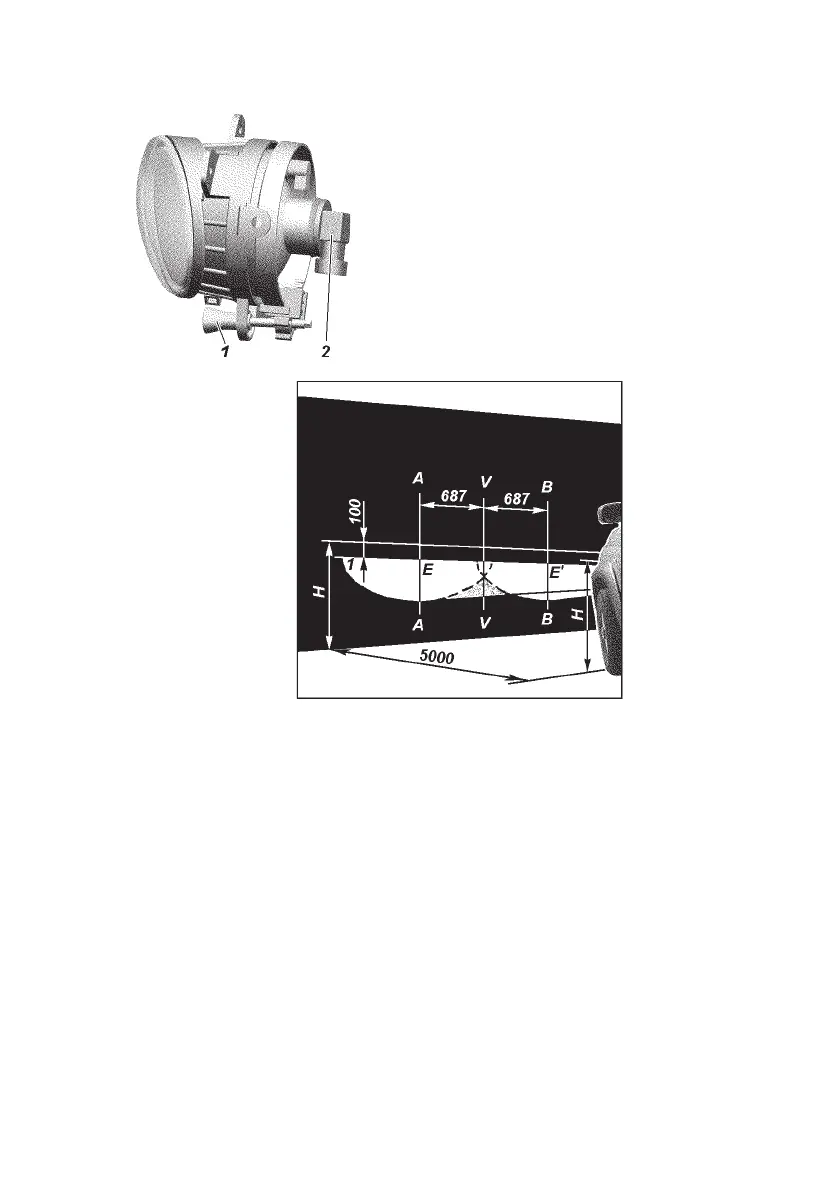

Fig. 9.35. Screen marking for front fog lights adjustment:
H — distance between the headlights center and the ground level; V–V — motor
vehicle longitudinal axis projection; A–A, B–B — axes of headlights centers.
Fig. 9.34. Front fog light:
1 — adjusting screw;
2 — wiring harness connector.
