On UAZ CARGO rear lights, license plate lamps, backing
lamps, fog lamp are located on the cargo bed from behind.
Reading lamps and dome lamp (Fig. 9.43) are located on the
headliner. The bad lamps should be replaced.
Glove compartment lamp. To replace the lamp, remove the
lamp shade (Fig. 9.44) from the glove compartment. Release holder
2 and replace lamp 1.

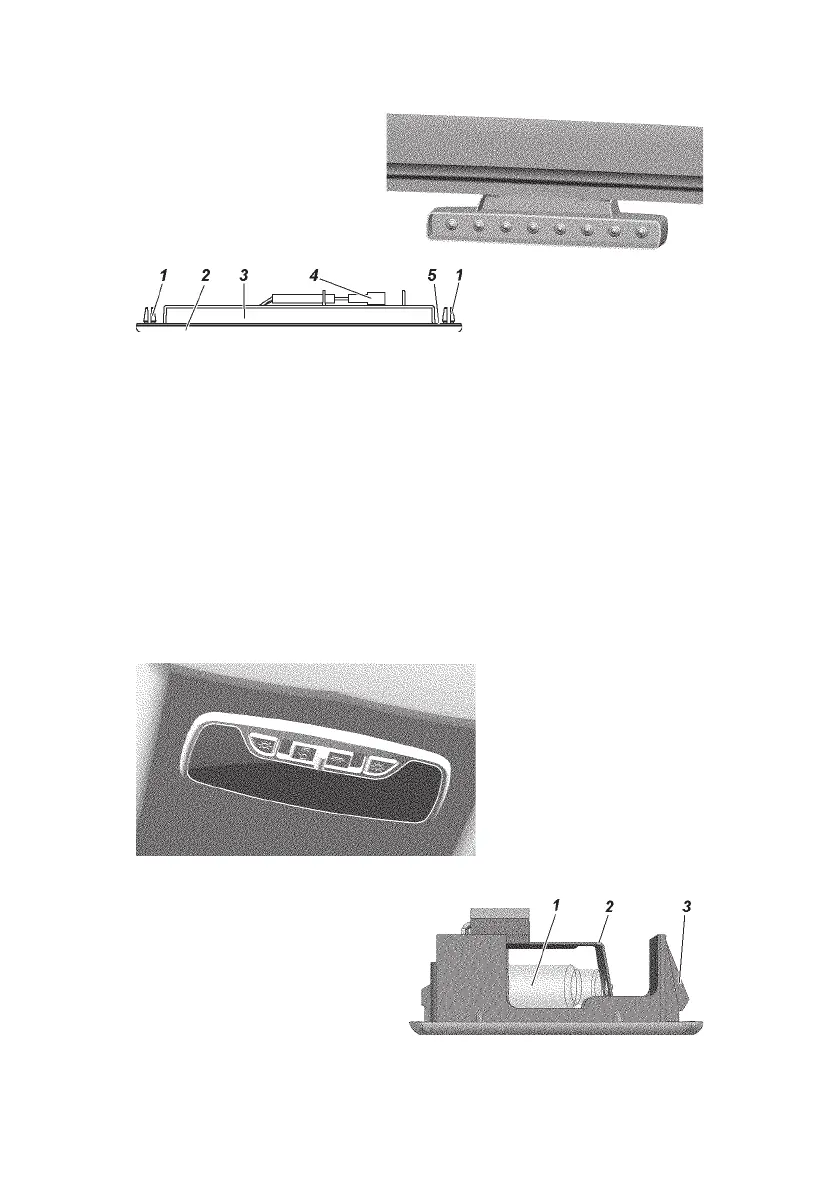

Fig. 9.41. Center high mount
stop lamp (UAZ Patriot)
Fig. 9.42. Center high mount stop lamp (UAZ Pickup):
1 — catches; 2 — lens; 3 — lamp housing; 4 — connector; 5 — gasket.
Fig. 9.43. Reading lamps
Fig. 9.44. Glove
compartment lamp:
1 — lamp; 2 — lamp holder;
3 — catches.
