License plate lamps are located in the tailgate handle. Untwist
screws 7 (Fig. 9.40) and take out the lamp. Insert the screwer to
slot 5, press pawl 6, and remove lens 3.
Center high mount stop lamp is located at UAZ Patriot on
the inside panel of the tail gate (Fig. 9.41). The bad lamp should
be replaced.
The center high mount stop lamp (Fig. 9.42) is located at UAZ
Pickup on the tailgate, depending on conguration and is xed by
catches 1. The bad lamp should be replaced.
Fig. 9.40. License plate lamps:
1 — screen of license plate lamps;
2 — lamp housing; 3 — lamp lens; 4 —
lamp; 5 — slot; 6 — pawl; 7 — screws.

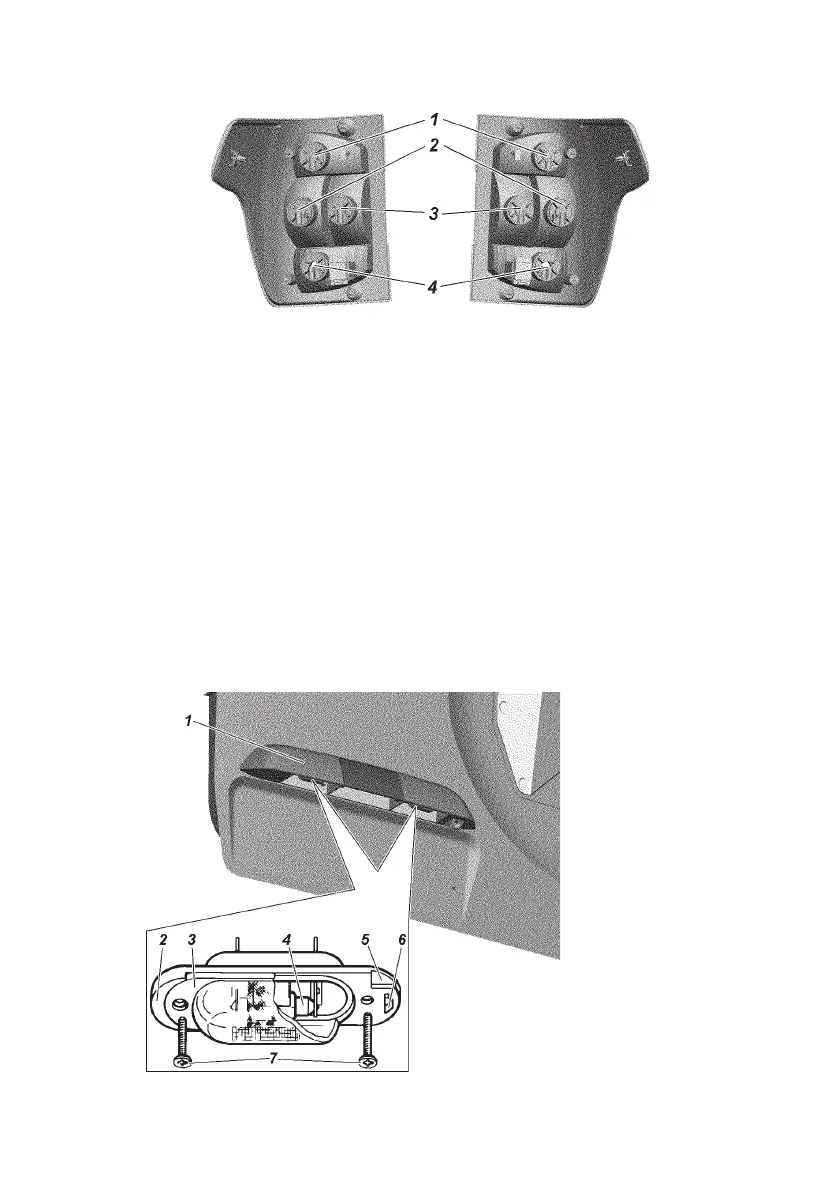

Fig. 9.39. Tail lamps:
1 — socket of brake signal lamp; 2 — socket of T/signals lamp; 3 — socket of reverse
lamp; 4 — socket of fog lights and parking lamps.
