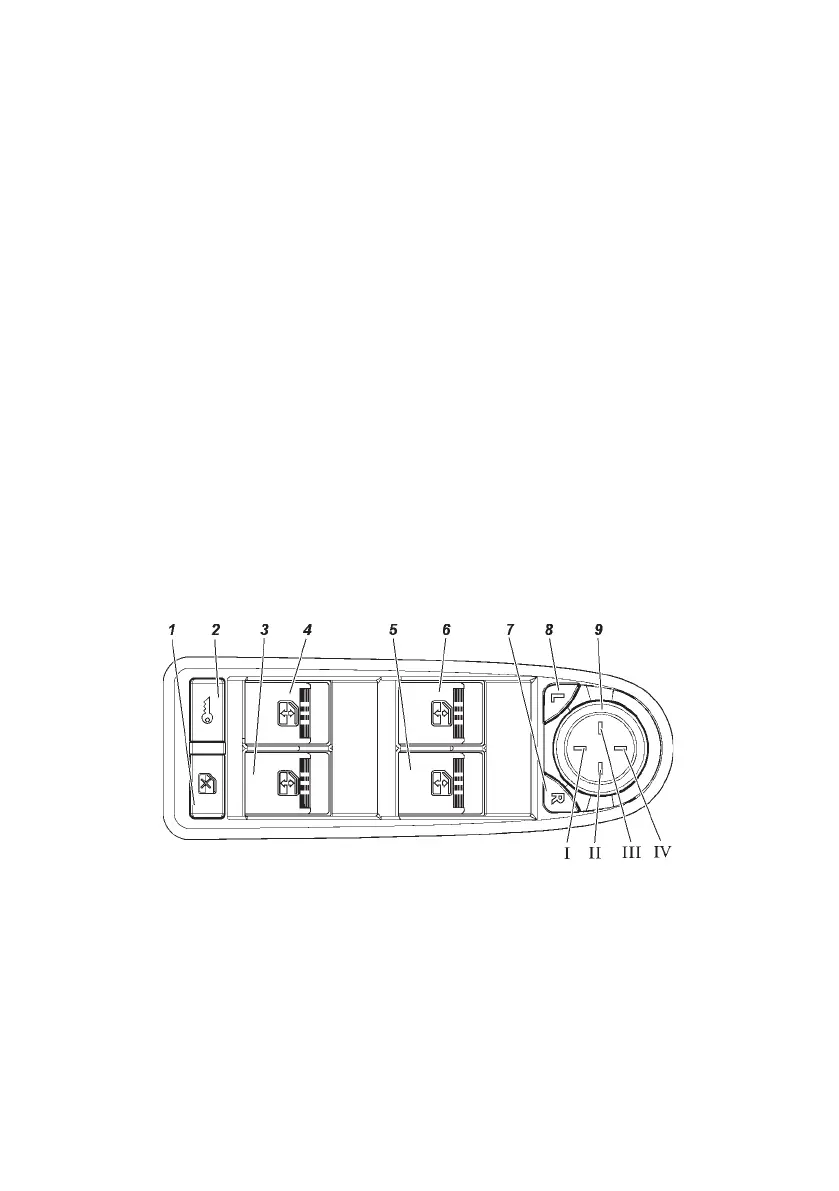

Fig. 3.14. Driver side door switch module with multiplex control:
1 — passenger door descending window glass guide interlocking switch (except
for UAZ CARGO); 2 — central door locking switch; 3 — right T/gate descending
window glass guide control switch (except for UAZ CARGO); 4 — left T/gate
descending window glass guide control switch (except for UAZ CARGO); 5 —
right front door descending window glass guide control switch; 6 — driver side
door descending window glass guide control switch; 7 — right mirror selection
switch; 8 — left mirror selection switch; 9 — outside rear view mirror position
control switch (except for UAZ CARGO): I — mirror down; II — mirror right;
III — mirror left; IV — mirror up
Switching prompt alarm ON
Switch prompt alarm ON is only possible with started up igni-
tion. Switching ON is performed by pressing button 4 of the RCP
and holding it for at least 2 s. To switch prompt alarm OFF, press
any button of the RCP.
Locking and unlocking central door locks
from the interior
Locking all door locks (including the T/gate) from the motor
vehicle interior is possible using 2 methods:
– sink the interlocking switch in the driver side door to lock,
and pull the interlocking switch in the driver side door to unlock;
– press switch 2 (Fig. 3.14) of the DSDM. Every press either
locks or unlocks the locks.
The central locking has door lock overheating protection.
If locking or unlocking is performed many times over a short
period of time, the system stops responding to switch pressing.
