UFactory xArm6 User Manual

58

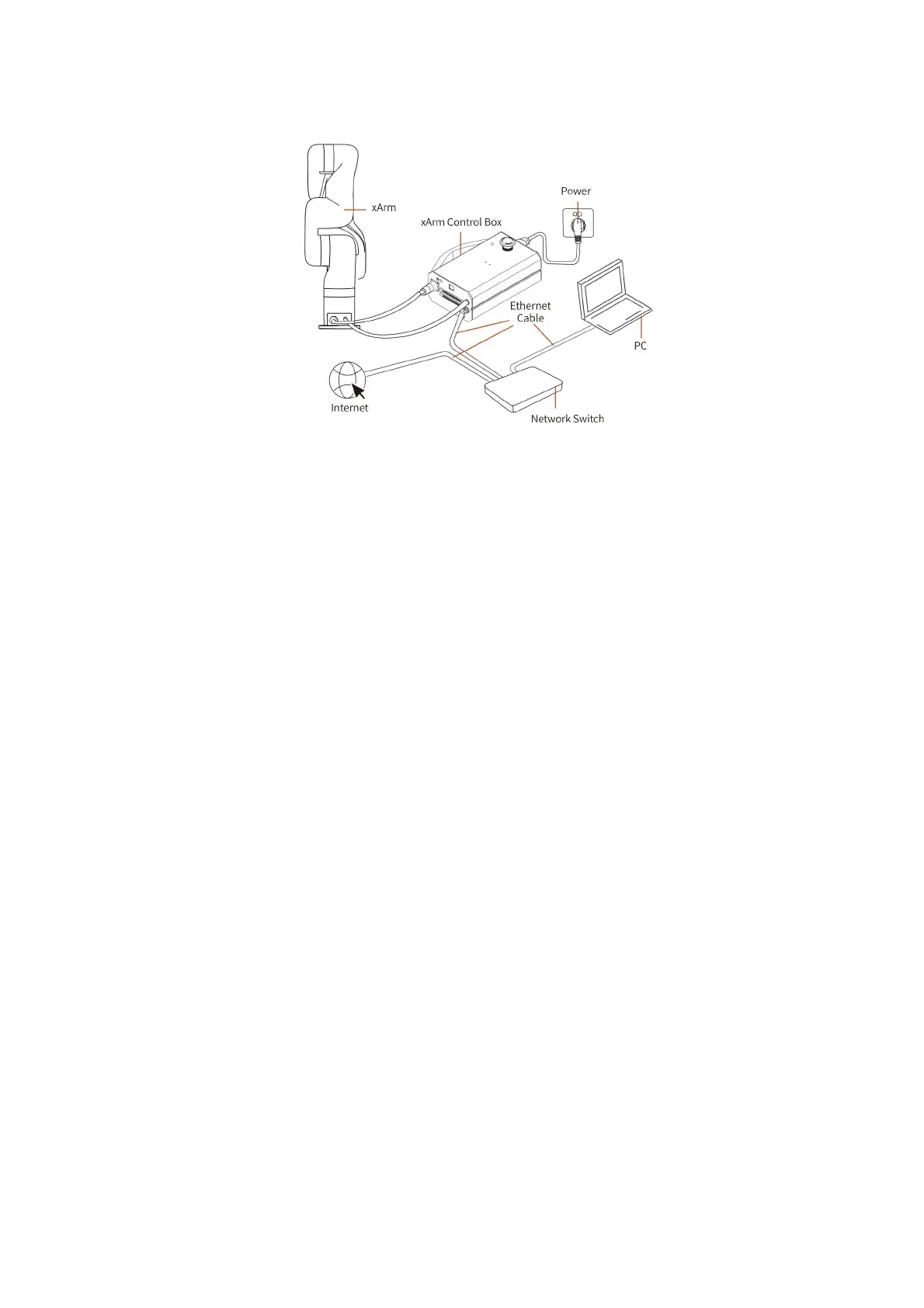

(4) The control box, PC and network switch are connected by Ethernet cable.
1.2.2 IP Configuration
Before connecting the robotic arm with xArm Studio (communication with the robotic
arm), make sure that the IP address of the computer and the IP address of the control
box are on the same network segment. When the control box is shipped from the
factory, the default IP address is 192.168.1.xxx (The factory IP address of the device
has been marked on the side of the control box). Therefore, to successfully
communicate with the control box, the IPV4 network segment on the computer must
be between 192.168.1.1-192.168.1.255 (cannot be the same as the IP address tail
number of the control box).
● IP Setting
Network and Sharing Center → Ethernet → Properties → IPV4
