*Wire R, S, T to the primary side.
*Wire U, V, W to the motor side.

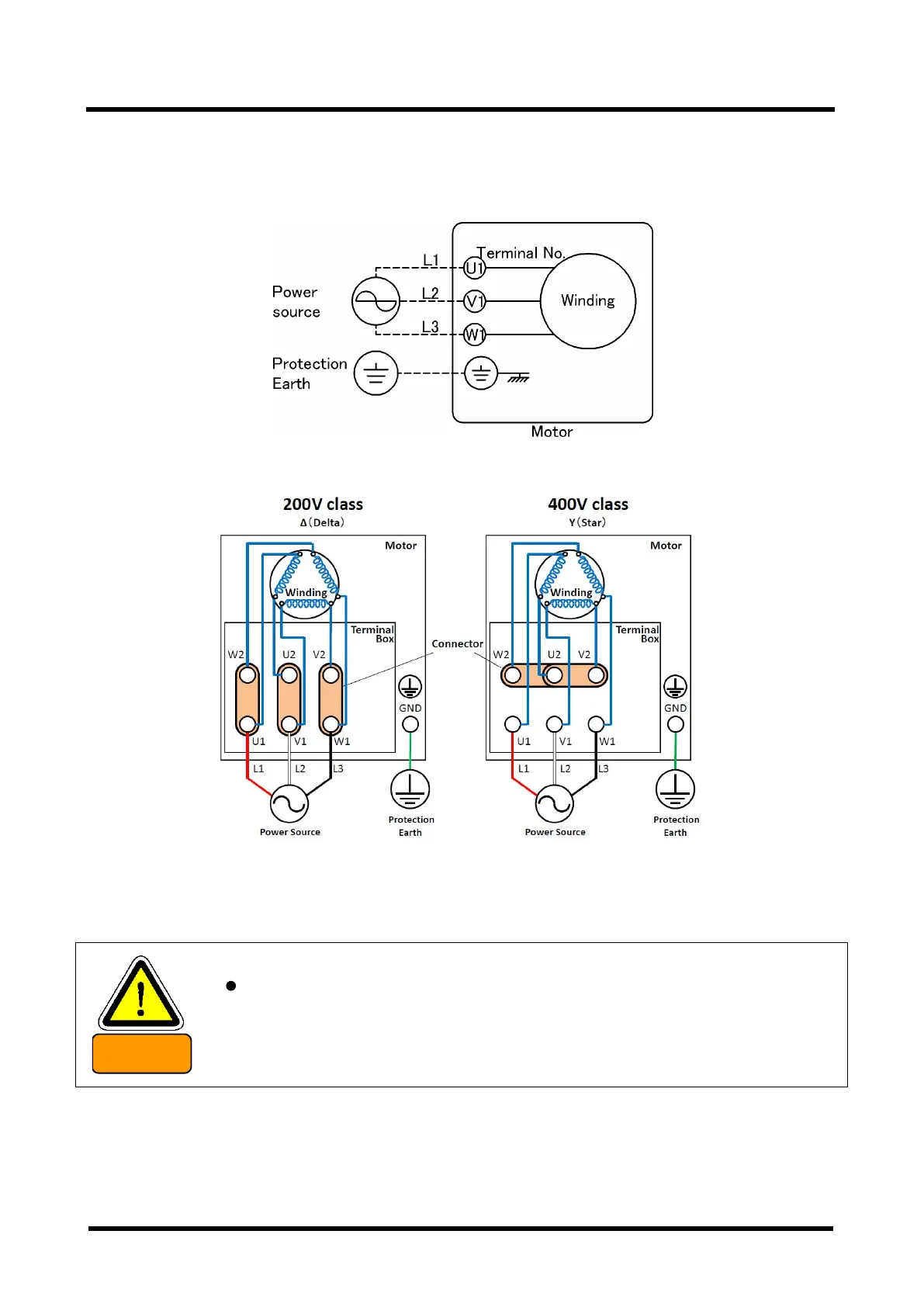

Fig. 8 Electrical wiring diagram
Fig. 9 Terminal box internal wiring diagram
WARNING
Before wiring, please check the power supply voltage to be used.
Check the power supply voltage to be used, please do the switching of
the terminal box in the connection.
△：Delta connection Y：Star connection
