3.2 Lubrication
3.2.1 Lubrication to the Lubrication chamber.

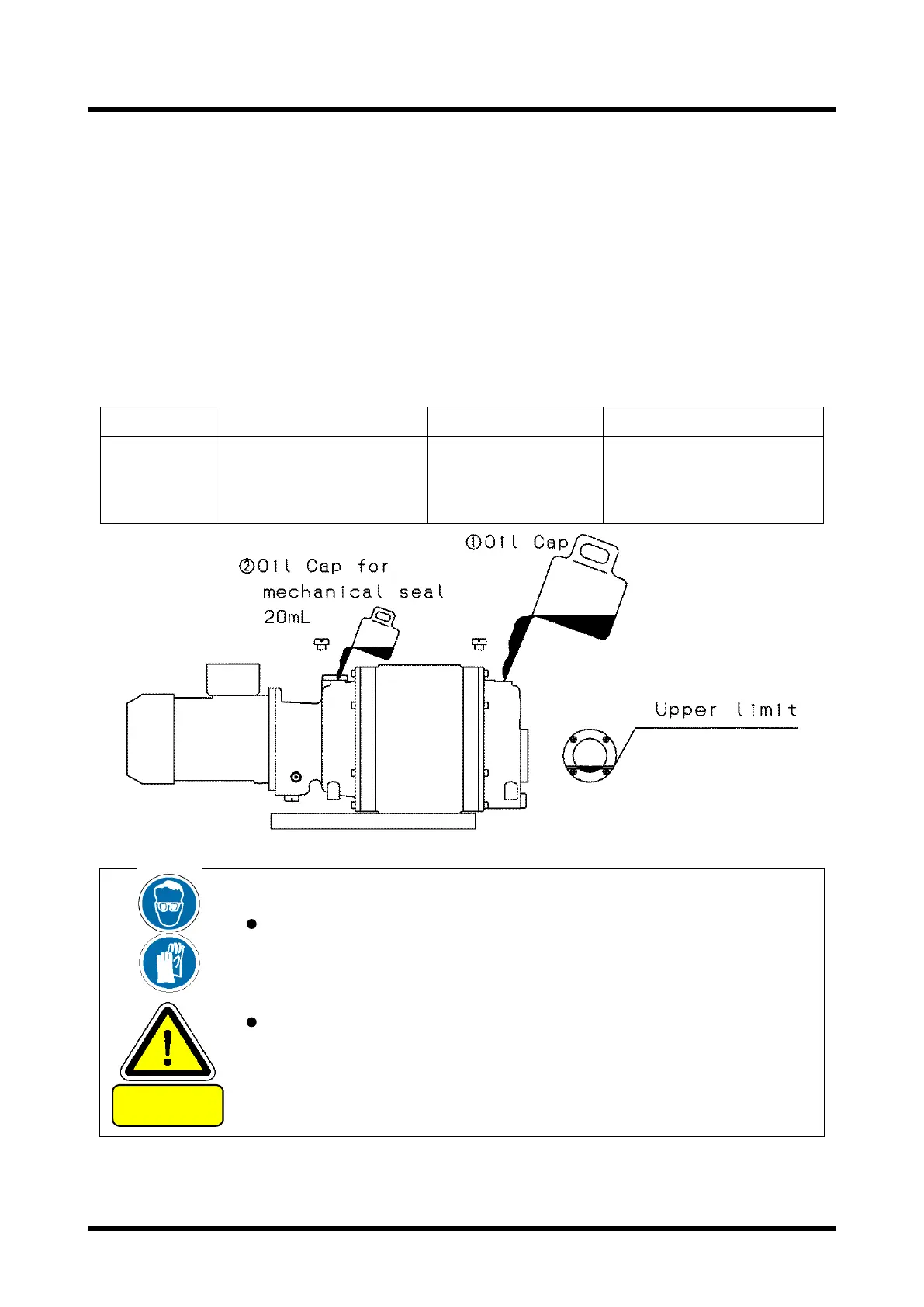

Supply the lubrication oil by specified volume through the oiling port on the Gear cover (Refer to
Fig.8- Fig.12 ).
It takes approximately one minute that the lubrication oil fully spreads out. Check the oil volume by
the Oil level gauge after the lubrication got stabled and add the oil if it was under the specified level
as far as the oil gets stabled on the upper limit level.
Table. 6 Oil level gauge
MODEL Place In oiling During operating
PMBD Series
Oil level gauge
on the Cover of gear side
Put the oil up to
the upper limit level.
Oil level shall be available
between level lines of 2
pieces of the oil gauge.
CAUTION
Read “1. 2 Chemical Material Safety Data Sheet”
previously before
starting lubrication.
Please obtain the latest version of Material Safety Data Sheet (
SDS)
from our Sales Department.
Weal protective gears such as rubber gloves, protective goggle and
so on.
Should the oil touched to your hand are ent
ered in your eye,
immediately follow the emergency treatment described on the SDS.
