5.5 Motor control equipment (air-cooled type with atmospheric pressure operating
specification inverter)
This pump, by using an inverter, can be operated from atmospheric pressure at air type.
Inverter type, please refer to the "5.4 Motor control equipment (water-cooled type with atmospheric
pressure operating specification inverter) ". Used oil will be the R-72
CAUTION
If you want to use in air-cooled, please make sure that the short
circuit wiring has been constructed between the inverter control
wiring "S2-SC". It may cause pump damage. It may cause pump
damage.Use oil,please use the R-72.
PMB600D, PMB1200D, PMB2400D can cause pump damage you
do 1hr more pressure held in a pressure range of 300 ~ 4000Pa.
Setting and control wiring for starting (S1-SC), please do not
change so we are at the time of shipment. However, if you be
started by remote control, please control at the input of the non-
voltage contact Remove the short-circuit line of (S1-SC).
The multi-function analog input "A1", please do not connect the
wiring. It may cause malfunction.
Multi-function contact input terminal "S2", "S3", the setting of
"S7" is different from the inverter factory settings.
Use of air cooling, is outside the scope of cTUVus certification.
PMB100D, which is air-cooled specification, short-circuit line of (S2-
SC) is not required.

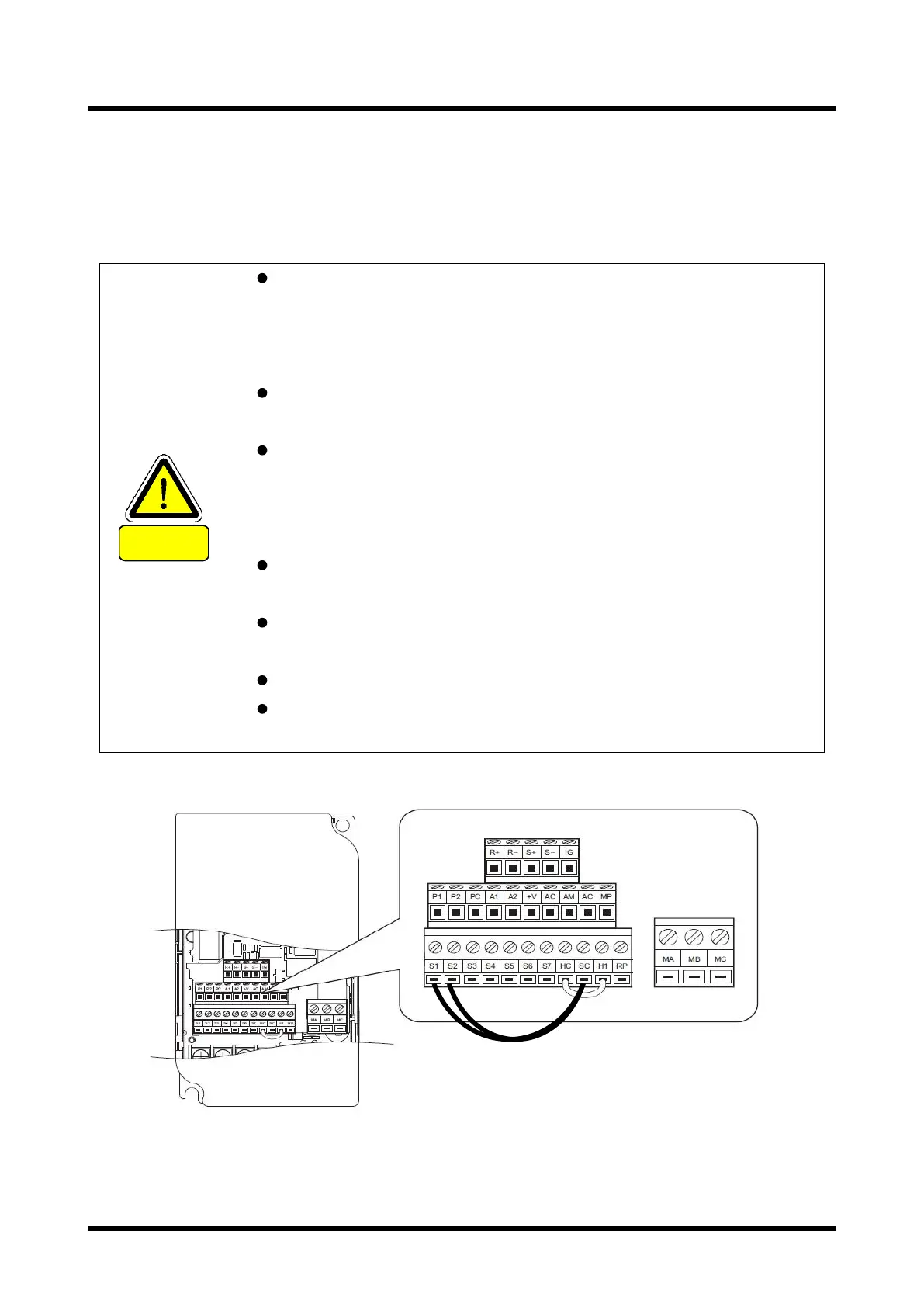

Air-cooled specification control wiring diagram
Please make sure that the short circuit wiring has been constructed between ※ "S2-SC"
※ PMB100D, the short-circuit line of but is air-cooled specification (S2-SC) is not required.
