YK11-0016-DI-002-08
20
※Rotational speed of the mechanical booster pump with inverter is 60Hz.

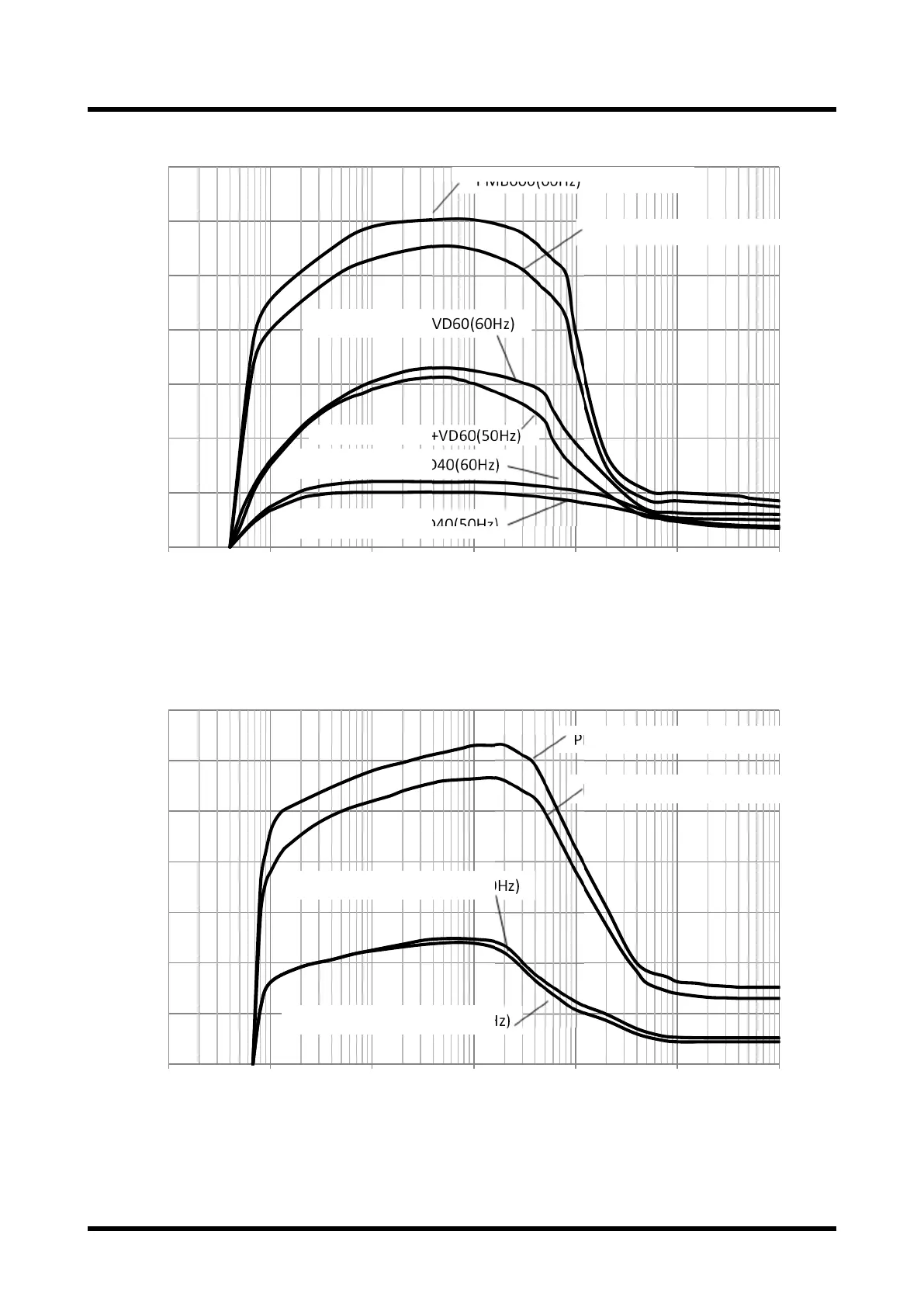

Fig. 20 Pumping speed curves - MODEL PMB100D/300D/600D
Air-cooled specification with inverter (optional)
※Rotational speed of the mechanical booster pump with inverter is 60Hz.
※Continuous operation in 300Pa ~ 4000Pa is within 1hr.
Fig. 21 Pumping speed curves - MODEL PMB1200D/2400D
Air-cooled specification with inverter (optional)
※Rotational speed of the mechanical booster pump with inverter is 60Hz.
0
100
200
300
400
500
600
700
0.1 1 10 100 1000 10000 100000
Pumping Speed (m3/h)
Pressure (Pa)
PMB300(60Hz)+VD60(60Hz)
PMB300(60Hz)+VD60(50Hz)
PMB600(60Hz)+VD90(50Hz)
PMB100(60Hz)+VD40(50Hz)
PMB600(60Hz)+VD90(60Hz)
PMB100(60Hz)+VD40(60Hz)
0
500
1000
1500
2000
2500
3000
3500
0.1 1 10 100 1000 10000 100000
Pumping Speed (m3/h)
Pressure (Pa)
PMB2400(60Hz)+VS650(50Hz)
PMB1200(60Hz)+VS2401(60Hz)
PMB1200(60Hz)+VS2401(50Hz)
PMB2400(60Hz)+VS650(60Hz)
