5. Before inserting the scanner in the sleeve, attach the cable from the previously mounted
antenna. Attach the DC Power leads. RED goes to a positive (+) connection on your fuse
block while BLACK connects to the vehicles chassis ground (-).
6. Connect the ORANGE lead to one side of the headlamp switch so that when you activate
the headlights, the scanners LCD display changes intensity. Be sure all the connections are
routed away from any potentially pinching or slicing sheet metal.
7. Slowly slide the scanner into the sleeve until it locks in place.
8. To remove the unit, fully insert the removal keys into each slot on the left and right edges of
the front panel. Carefully slide the radio from the sleeve.
Removing the Scanner from the DIN-E Sleeve
If you plan to connect other devices or wires to the radio, such as a GPS unit, at a later time, you
should plan to remove the scanner from the DIN-E sleeve. This is easily done using the provided
Removal Keys that come with the optional DIN-E sleeve.

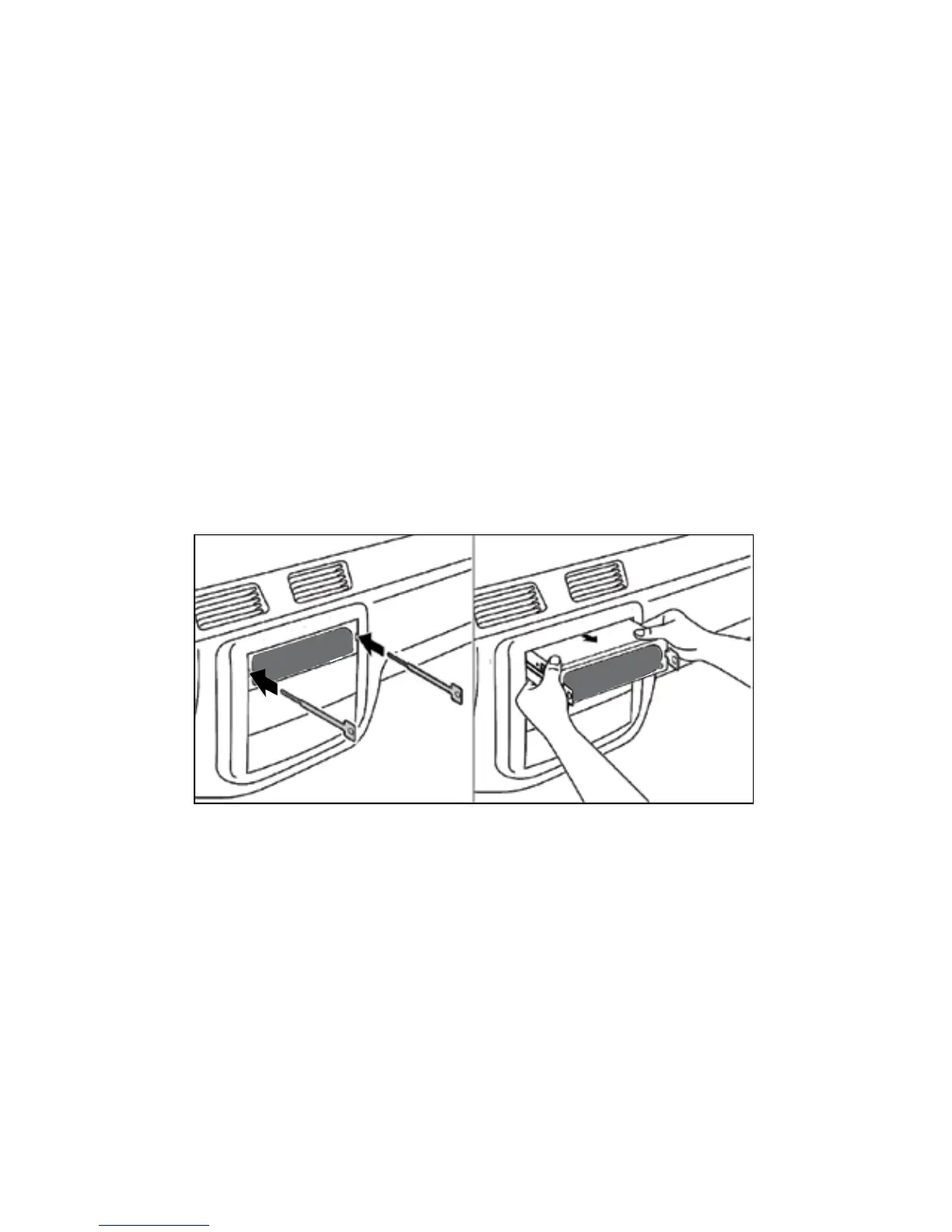

Refer to the illustration that follows, showing the Removal Keys.
Fully insert both Removal Keys into the slots on the left and the right edges of the radios dress
panel. You cannot remove the radio with only one key. Press in fully, and do not twist the keys.
The radio will unlock from the sleeve making withdrawal from the sleeve possible. Store the keys
in a safe place for future use.

Uniden BCD436HP Specifications

General

Model	BCD436HP
Antenna	Removable SMA Antenna
Close Call RF Capture	Yes
Dynamic Memory	Yes
PC Programmable	Yes
Water Resistance	No
Category	Scanner Radio
Display	Dot-matrix LCD
Power Source	3x AA batteries or USB power
Weight	10.1 oz
Type	Handheld
GPS	Optional GPS receiver supported
Audio Output	Earphone jack (3.5 mm)
Trunking Systems Supported	Motorola, EDACS, LTR, APCO 25 Phase I and Phase II
Modulation Types	AM, FM, NFM, P25
Battery Life	Varies with usage
Display Type	LCD
USB Port	Yes
SD Card Slot	Yes
Frequency Range	25-512 MHz, 758-960 MHz, 1240-1300 MHz
